TRANSMISSION
KMX125-B5 1990 UNITED KINGDOM FR SD

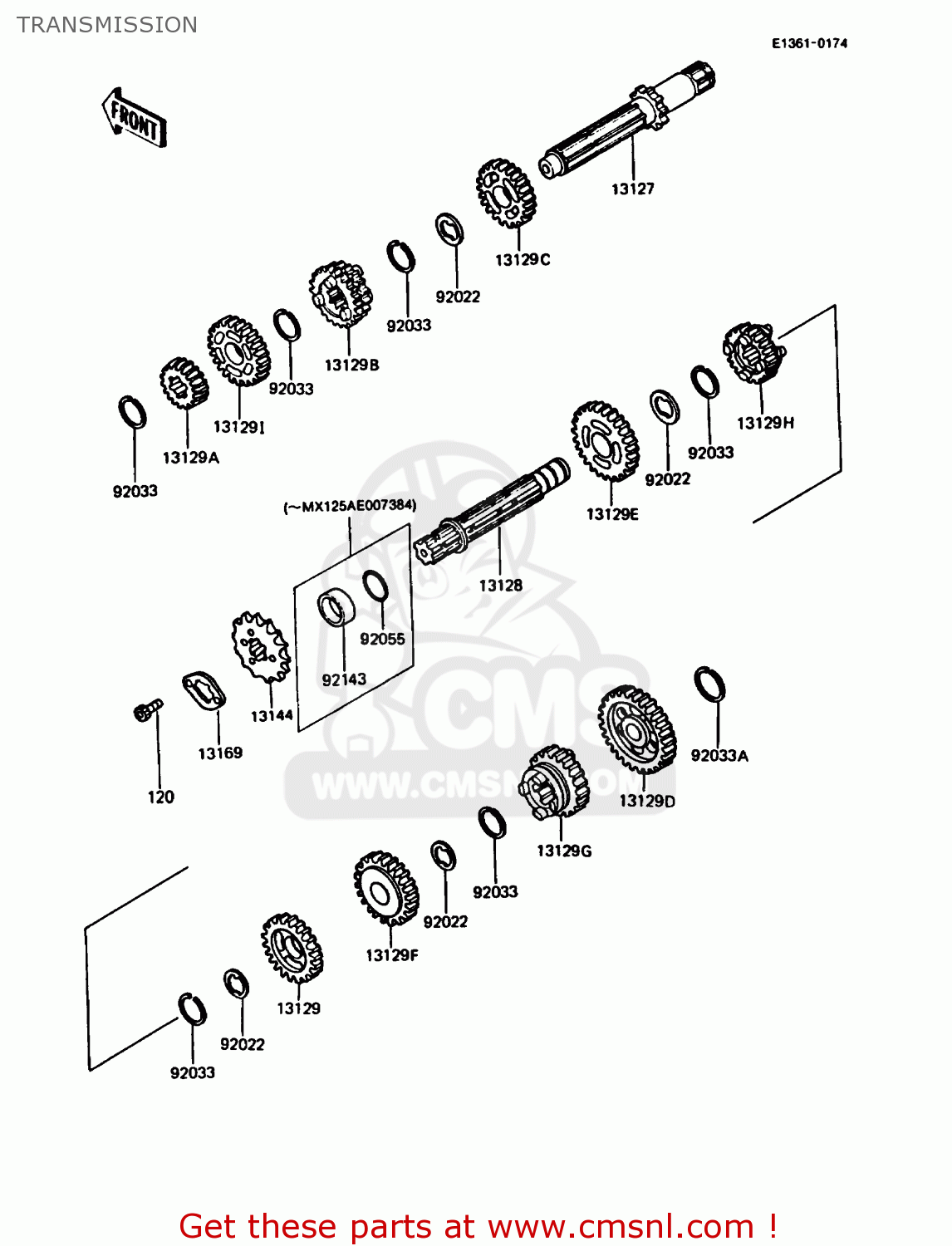

Transmission diagram KMX125-B5 1990 UNITED KINGDOM FR SD
TRANSMISSION KMX125-B5 1990 UNITED KINGDOM FR SD
×
prices are in EUR
ref
part #
description
quantity
120
120Q0608
ref: 120
BOLT-SOCKET
€ 2.00
13127
131271138
ref: 13127
SHAFT-TRANSMISSION IN
€ 150.00
13128
131281134
ref: 13128
SHAFT-TRANSMISSION OU
€ 124.50
13129
131291559
ref: 13129
GEAR,OUTPUT 4TH,24T
€ 67.00
13129A
131291788
ref: 13129A
GEAR,INPUT 2ND,14T
€ 52.50
13129B
131291789
ref: 13129B
GEAR,INPUT 3RD&4TH,17
€ 100.00
13129C
131291790
ref: 13129C
GEAR,INPUT 5TH,24T
€ 67.00
13129D
131291791
ref: 13129D
GEAR,OUTPUT LOW,31T
€ 95.00
13129E
131291792
ref: 13129E
GEAR,OUTPUT 2ND,27T
€ 84.00
13129F
131291793
ref: 13129F
GEAR,OUTPUT 3RD,24T
€ 69.50
13129G
131291795
ref: 13129G
GEAR,OUTPUT 5TH,22T
€ 61.50
13129H
131291796
ref: 13129H
GEAR,OUTPUT TOP,21T
€ 73.00
13129I
131291925
ref: 13129I
GEAR,INPUT TOP,26T
€ 58.00
13144
131441071
ref: 13144
SPROCKET-OUTPUT,14T
€ 19.00
13169
131691541
ref: 13169
PLATE,SPROCKET
€ 3.00
92022
920221033
ref: 92022
WASHER,TOOTHED,20.3X2
€ 4.50
92033
920331214
ref: 92033
RING-SNAP,18.7MM
€ 2.50
92033A
920331215
ref: 92033A
RING-SNAP,14MM
€ 2.50
