FRAME
KMX125-B5 1990 UNITED KINGDOM FR SD

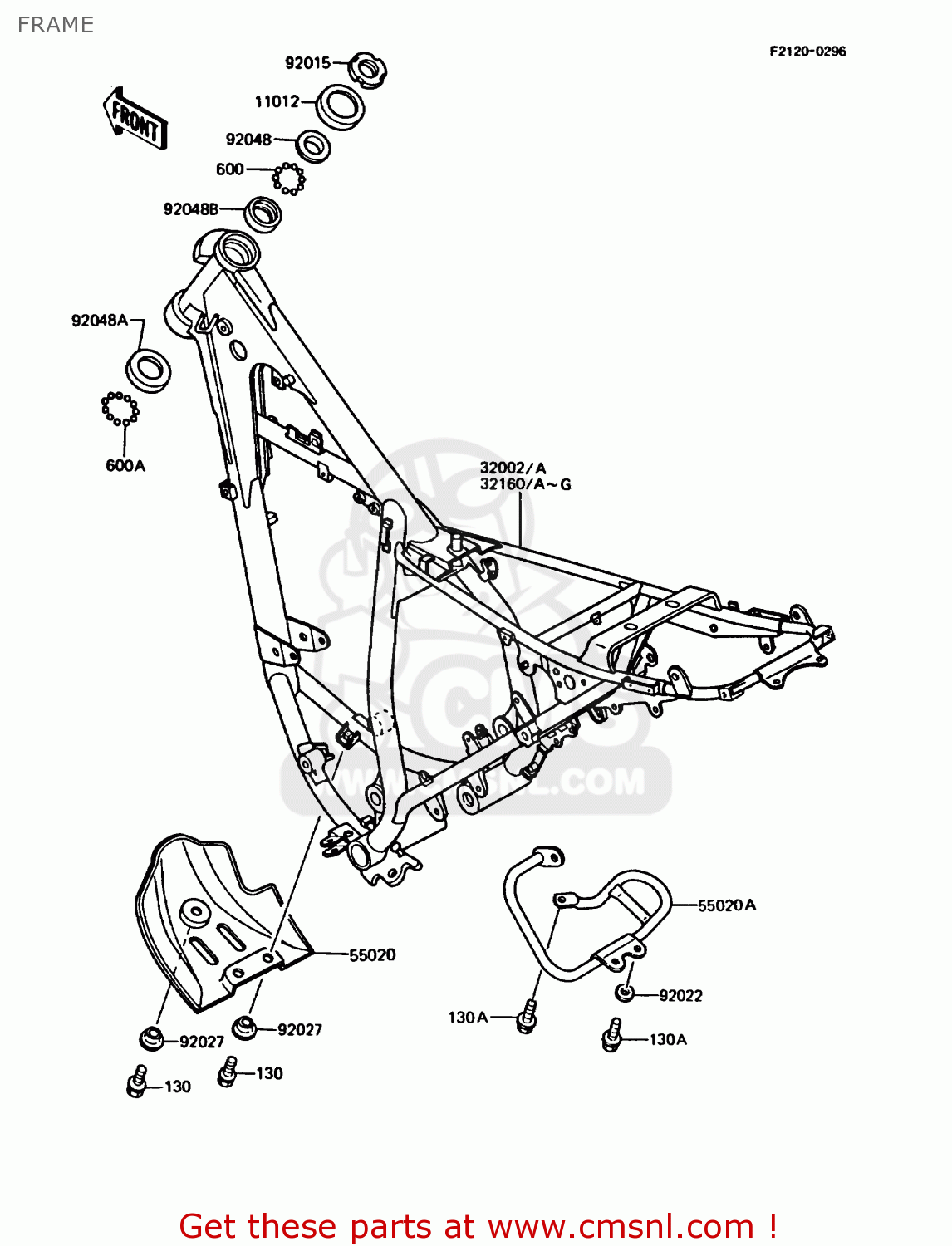

Frame diagram KMX125-B5 1990 UNITED KINGDOM FR SD
FRAME KMX125-B5 1990 UNITED KINGDOM FR SD
×
prices are in EUR
ref
part #
description
quantity
130A
130G0614
ref: 130A
BOLT,FLANGED,6X14
€ 0.50
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
600A
600A0800
ref: 600A
BALL-STEEL,1/4
€ 0.50
11012
46098018
ref: 11012
CAP,STEERING STEM
€ 4.00
32160
320021982CC
ref: 32160
UK
FRAME-COMP,L.GREEN
€ 894.00
32160B
320021982W1
ref: 32160B
UK
FRAME-COMP,BLUE NO.1
€ 896.00
32160D
321601071CC
ref: 32160D
FR
FRAME-COMP,L.GREEN
€ 796.50
32160F
321601071W1
ref: 32160F
FR
FRAME-COMP,BLUE NO.1
€ 796.50
32160G
321601072CC
ref: 32160G
SD
FRAME-COMP,L.GREEN
€ 796.50
55020A
550201318
ref: 55020A
GUARD,ENGINE
€ 47.50
92015
92090022
ref: 92015
NUT,STEERING LOCK,25M
€ 18.50
92022
920221565
ref: 92022
WASHER,6.5X16X2
€ 2.50
92048
92047014
ref: 92048
RACE,STEERING STEM BE
€ 12.50
92048A
92048005
ref: 92048A
RACE-STEERING BEARING
€ 11.50
92048B
92048009
ref: 92048B
RACE,STRG STM
€ 14.00
