KICKSTARTER MECHANISM
KMX125-A5 1990 EUROPE UK GR NR ST

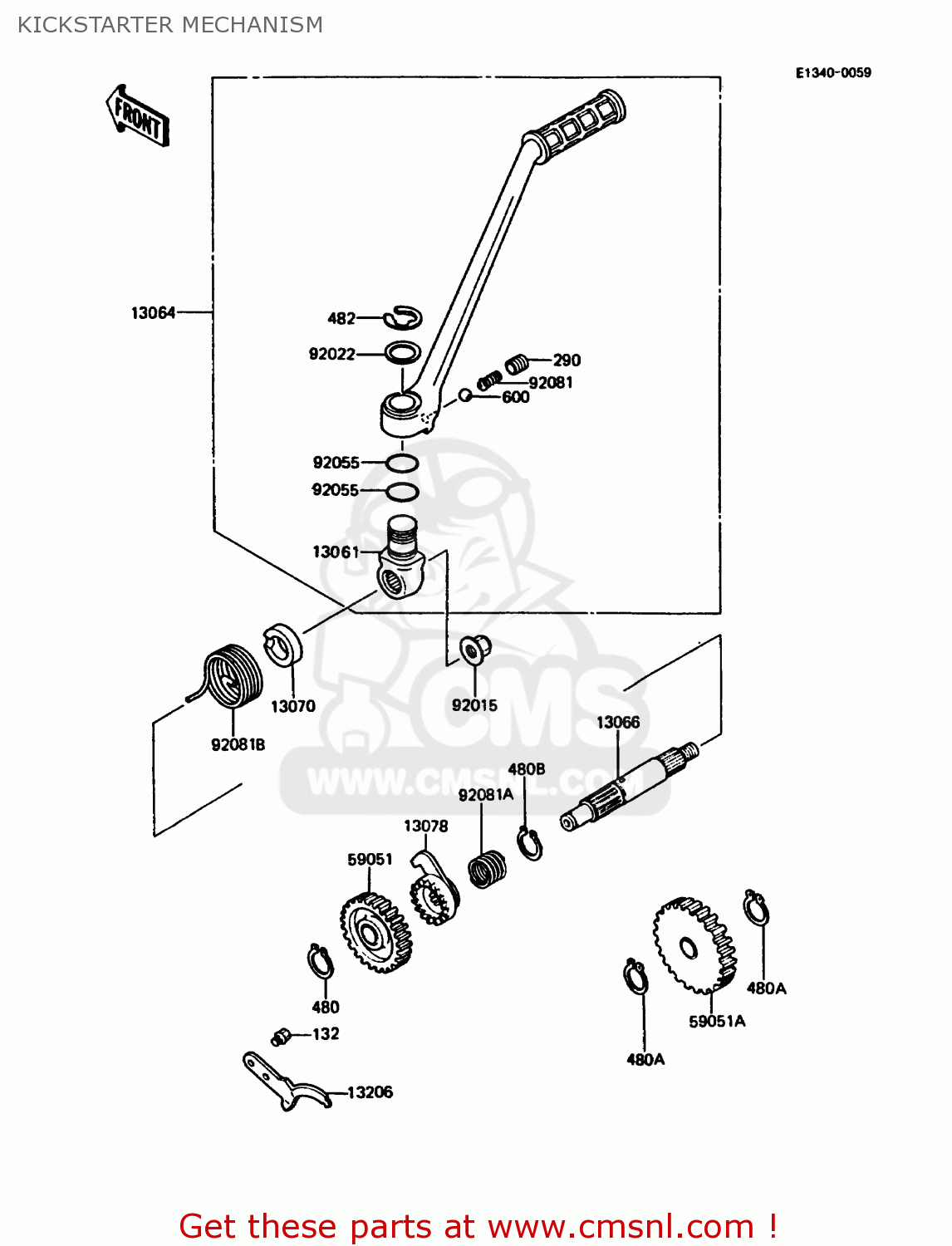

Kickstarter mechanism diagram KMX125-A5 1990 EUROPE UK GR NR ST
KICKSTARTER MECHANISM KMX125-A5 1990 EUROPE UK GR NR ST
×
prices are in EUR
ref
part #
description
quantity
132
132G0614
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
290
290Q0808
ref: 290
SCREW,8X8
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
480A
480J1500
ref: 480A
CIRCLIP-TYPE-C,15MM
€ 1.00
480B
480J1600
ref: 480B
CIRCLIP-TYPE-C,16MM
€ 2.50
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611047
ref: 13061
BOSS,KICK PEDAL
€ 47.50
13064
130641126
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 136.50
13066
130661066
ref: 13066
SHAFT-KICK
€ 91.00
13070
130701034
ref: 13070
GUIDE,KICK SPRING
€ 6.00
13078
130781004
ref: 13078
RACHET
€ 44.00
13206
132061057
ref: 13206
GUIDE-KICK
€ 8.00
59051
590511164
ref: 59051
GEAR-SPUR,KICKSTARTER
€ 61.50
59051A
590511165
ref: 59051A
GEAR,KICKSTARTER IDLE
€ 74.00
92015
920151541
ref: 92015
NUT
€ 8.50
92022
920221019
ref: 92022
WASHER,15.2X20X1
€ 3.50
92055
92055061
ref: 92055
RING-O,10X1.5
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081122
ref: 92081A
SPRING,RATCHET
€ 6.00
92081B
920811434
ref: 92081B
SPRING,KICK
€ 11.00
