FRONT FORK
KMX125-A5 1990 EUROPE UK GR NR ST

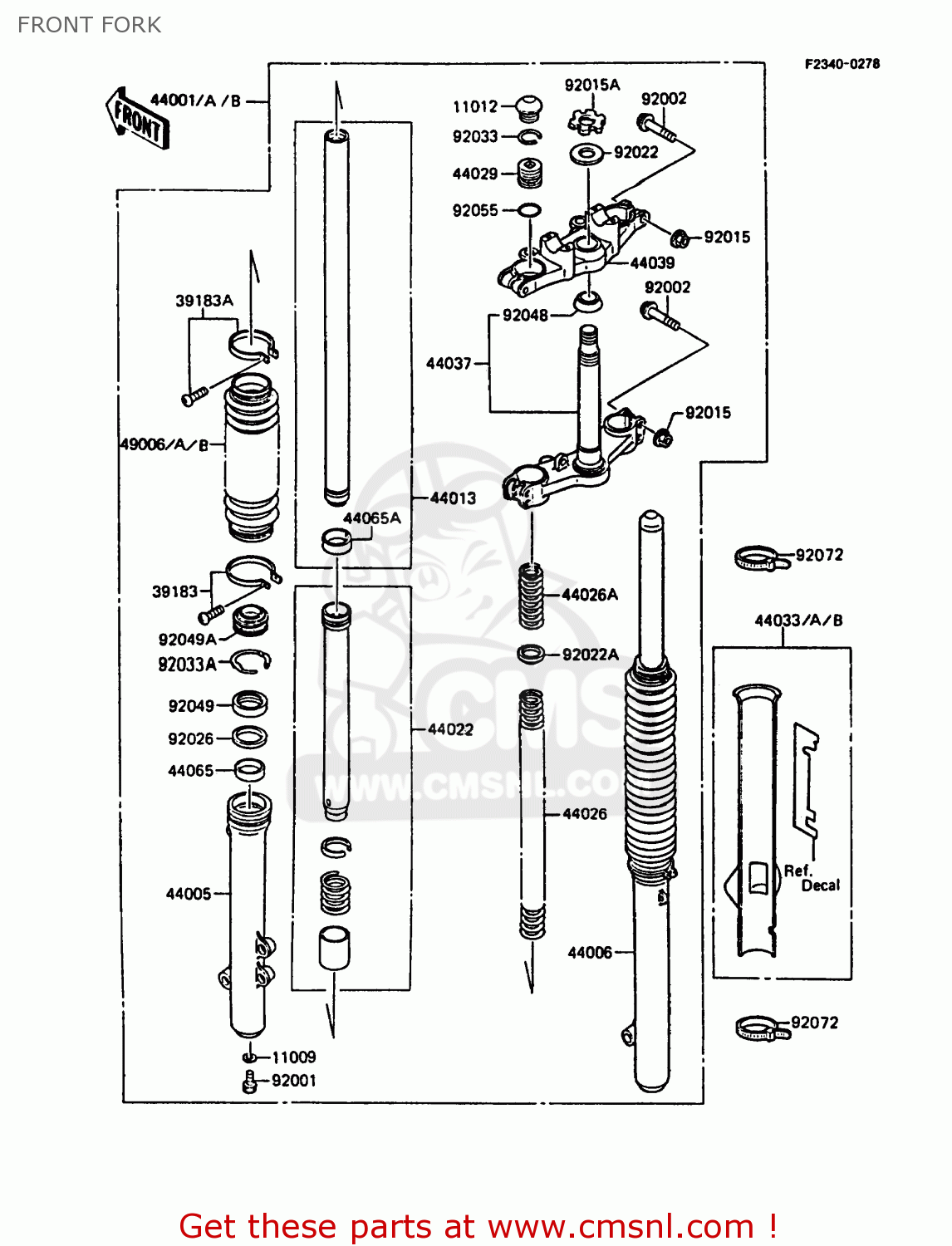

Front fork diagram KMX125-A5 1990 EUROPE UK GR NR ST
FRONT FORK KMX125-A5 1990 EUROPE UK GR NR ST
×
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11012
110121564
ref: 11012
CAP,FORK TOP
€ 4.50
39183
391831052
ref: 39183
BAND-ASSY,BOOT,FORK
€ 6.00
39183A
391831053
ref: 39183A
BAND-ASSY,BOOT,FORK
€ 6.00
44001B
440011629GF
ref: 44001B
FORK-FRONT,BLUE NO.32
€ 1,559.50
44005
440051252
ref: 44005
PIPE-LEFT FORK OUTER
€ 342.50
44006
440061251
ref: 44006
PIPE-RIGHT FORK OUTER
€ 366.00
44013
440131255
ref: 44013
PIPE-FORK INNER
€ 164.00
44022
440221199
ref: 44022
CYLINDER-FORK
€ 73.00
44026
440261344
ref: 44026
SPRING-FRONT FORK,LWR
€ 30.50
44026A
440261345
ref: 44026A
SPRING-FRONT FORK,UPP
€ 14.00
44029
440291012
ref: 44029
SEAT,FORK SPRING
€ 14.00
44033A
4403350116W
ref: 44033A
COVER-FORK,L.GREEN
€ 26.00
44033B
440335012BV
ref: 44033B
COVER-FORK,BLUE 24
€ 26.00
44037
440371202
ref: 44037
HOLDER-FORK UNDER
€ 244.00
44039
440391138
ref: 44039
HOLDER-FORK UPPER
€ 95.50
44065
440651020
ref: 44065
BUSHING-FRONT FORK
€ 13.00
44065A
440651054
ref: 44065A
BUSHING-FRONT FORK,IN
€ 13.00
49006B
490061205GF
ref: 49006B
BOOT,FORK,BLUE NO.32
€ 38.50
92001
920011464
ref: 92001
BOLT
€ 4.00
92002
920021865
ref: 92002
BOLT,FLANGED
€ 5.50
92015
920151198
ref: 92015
NUT
€ 1.00
92015A
920151224
ref: 92015A
NUT,FORK TOP
€ 11.50
92022
920221385
ref: 92022
WASHER,FORK TOP
€ 5.00
92022A
920221841
ref: 92022A
WASHER,FORK SPRING
€ 7.00
92026
920261275
ref: 92026
SPACER,OUTER TUBE
€ 13.50
92033
920331023
ref: 92033
CIRCLIP
€ 3.00
92033A
920331219
ref: 92033A
RING-SNAP,FORK
€ 4.00
92048
92047010
ref: 92048
CONE-STERNG BERG LOW
€ 10.00
92049
920491268
ref: 92049
SEAL-OIL,FORK
€ 25.50
92049A
920491275
ref: 92049A
SEAL-OIL,FORK OUTER T
€ 12.00
92055
920551124
ref: 92055
RING-0
€ 3.00
92072
920721237
ref: 92072
BAND,L=250
€ 2.00
