REAR HUB

KMX125-A14 KMX125 2001 / KPH

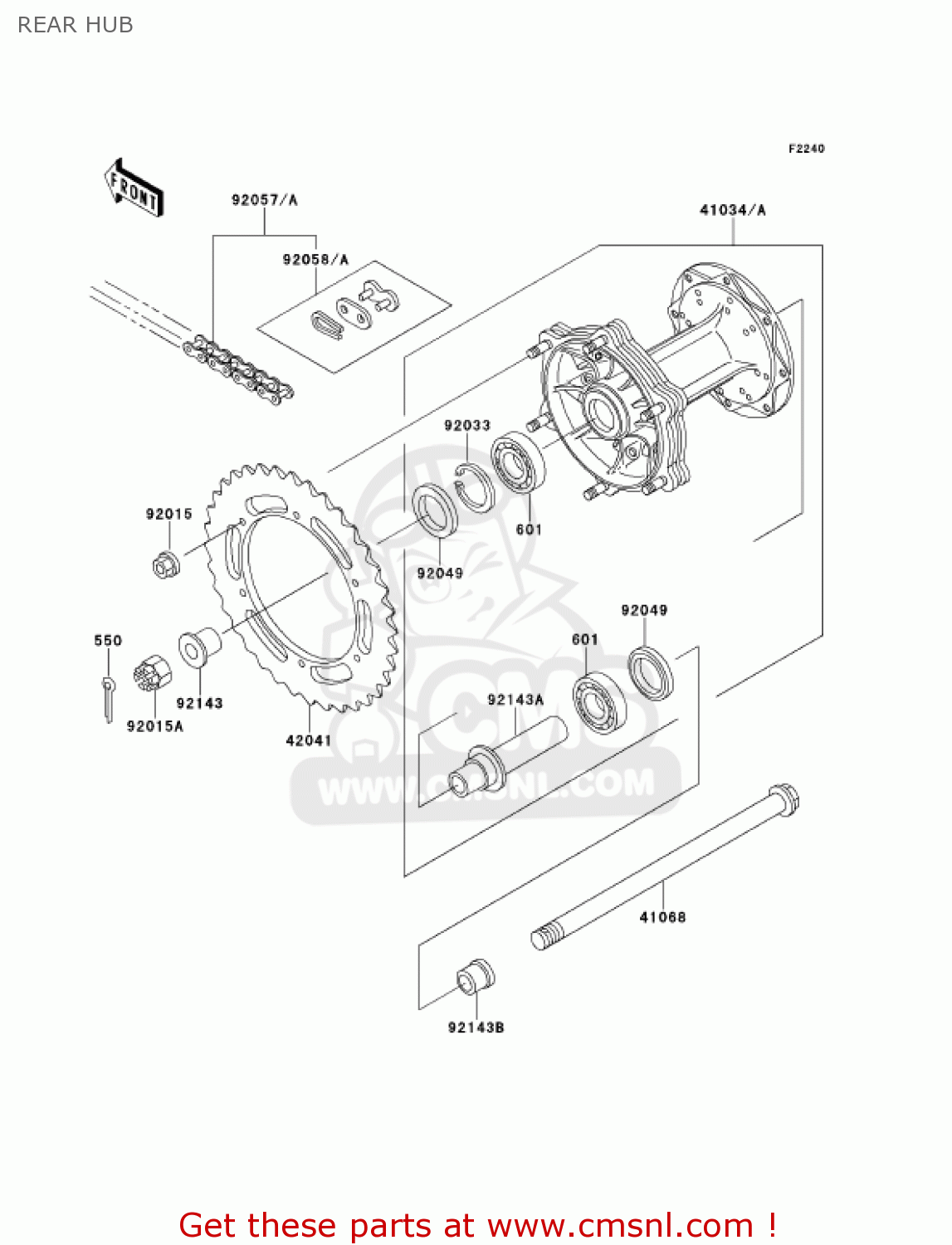

Rear hub diagram KMX125-A14 KMX125 2001 / KPH

REAR HUB KMX125-A14 KMX125 2001 / KPH
REAR HUB KMX125-A14 KMX125 2001 / KPH
REAR HUB KMX125-A14 KMX125 2001 / KPH
prices are in EUR
ref
part #
description
quantity
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
41034A
410341305
ref: 41034A
DRUM-ASSY,REAR BRAKE
€ 409.00
41068
410681228
ref: 41068
AXLE,RR
410681228
€ 47.50
42041
420411244
ref: 42041
SPROCKET-HUB,48T
€ 26.00
92015
920151668
ref: 92015
NUT
920151668
€ 3.00
92015A
920151765
ref: 92015A
NUT,CASTLE,14MM
920151765
€ 6.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
920491203
€ 12.00
92057A
920571499
ref: 92057A
CHAIN,DRIVE,DID428HX1
€ 33.50
92058A
920581088
ref: 92058A
JOINT-CHAIN,DRIVE
€ 5.50
92143
921431015
ref: 92143
COLLAR,L=28
921431015
€ 18.50
92143A
921431020
ref: 92143A
COLLAR,15.2X22X115
921431020
€ 13.00
92143B
921431021
ref: 92143B
COLLAR,L=13
921431021
€ 13.50
