CRANKCASE
KMX125-A14 KMX125 2001 / KPH

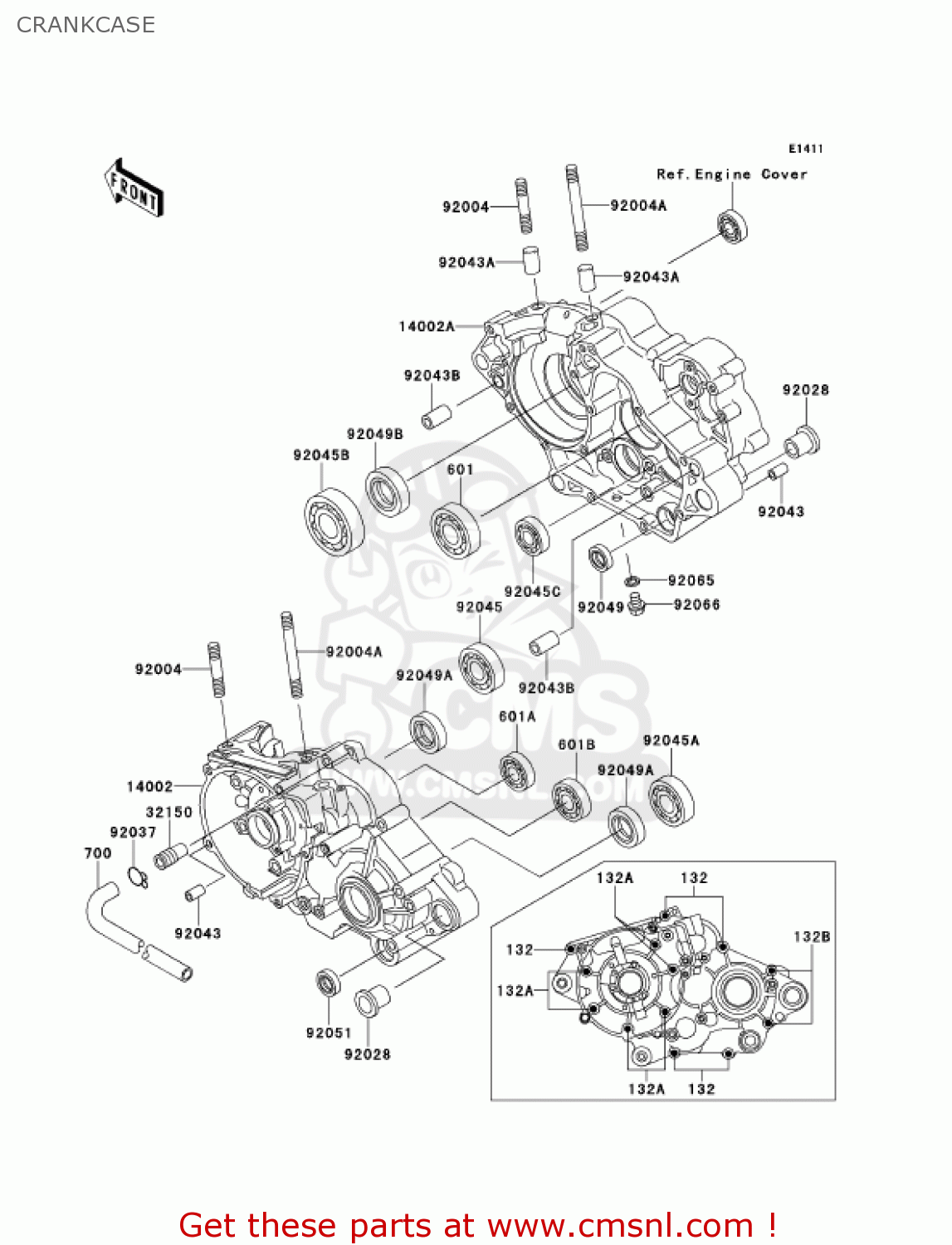

Crankcase diagram KMX125-A14 KMX125 2001 / KPH
CRANKCASE KMX125-A14 KMX125 2001 / KPH
×
prices are in EUR
ref
part #
description
quantity
132
132G0650
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132G0660
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0675
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
601
601A6204Z
ref: 601
BEARING-BALL
€ 28.00
601A
601A6301
ref: 601A
BEARING-BALL
€ 15.00
601B
601B6202
ref: 601B
BEARING-BALL,#6202C3
€ 14.50
700
700Q05360
ref: 700
TUBE-PVC,5X360
€ 1.50
14002
140021473
ref: 14002
CRANKCASE,LH
€ 383.50
14002A
140021487
ref: 14002A
CRANKCASE,RH
€ 450.00
32150
321501070
ref: 32150
PIPE,BREATHER
€ 3.50
92004
920041170
ref: 92004
STUD
€ 4.00
92004A
920041171
ref: 92004A
STUD
€ 6.00
92028
920281261
ref: 92028
BUSHING,SWING ARM
€ 12.00
92037
920371835
ref: 92037
CLAMP
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
€ 0.50
92043B
920431265
ref: 92043B
PIN,9.2X12X14
€ 4.50
92045
920451061
ref: 92045
BEARING-BALL,R-6205C3
€ 30.50
92045A
920451107
ref: 92045A
BEARING-BALL,#6304
€ 23.50
92045B
920451120
ref: 92045B
BEARING-BALL,6305JR2C
€ 34.00
92045C
920451169
ref: 92045C
BEARING-BALL,6202X19
€ 17.50
92049
920491186
ref: 92049
SEAL-OIL,TB13205
€ 5.50
92049A
920491257
ref: 92049A
SEAL-OIL,TC20376.5
€ 7.00
92049B
920491320
ref: 92049B
SEAL-OIL
€ 12.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661241
ref: 92066
PLUG
€ 4.00
