FUEL TANK
KMX125-A13 2000 MEXICO

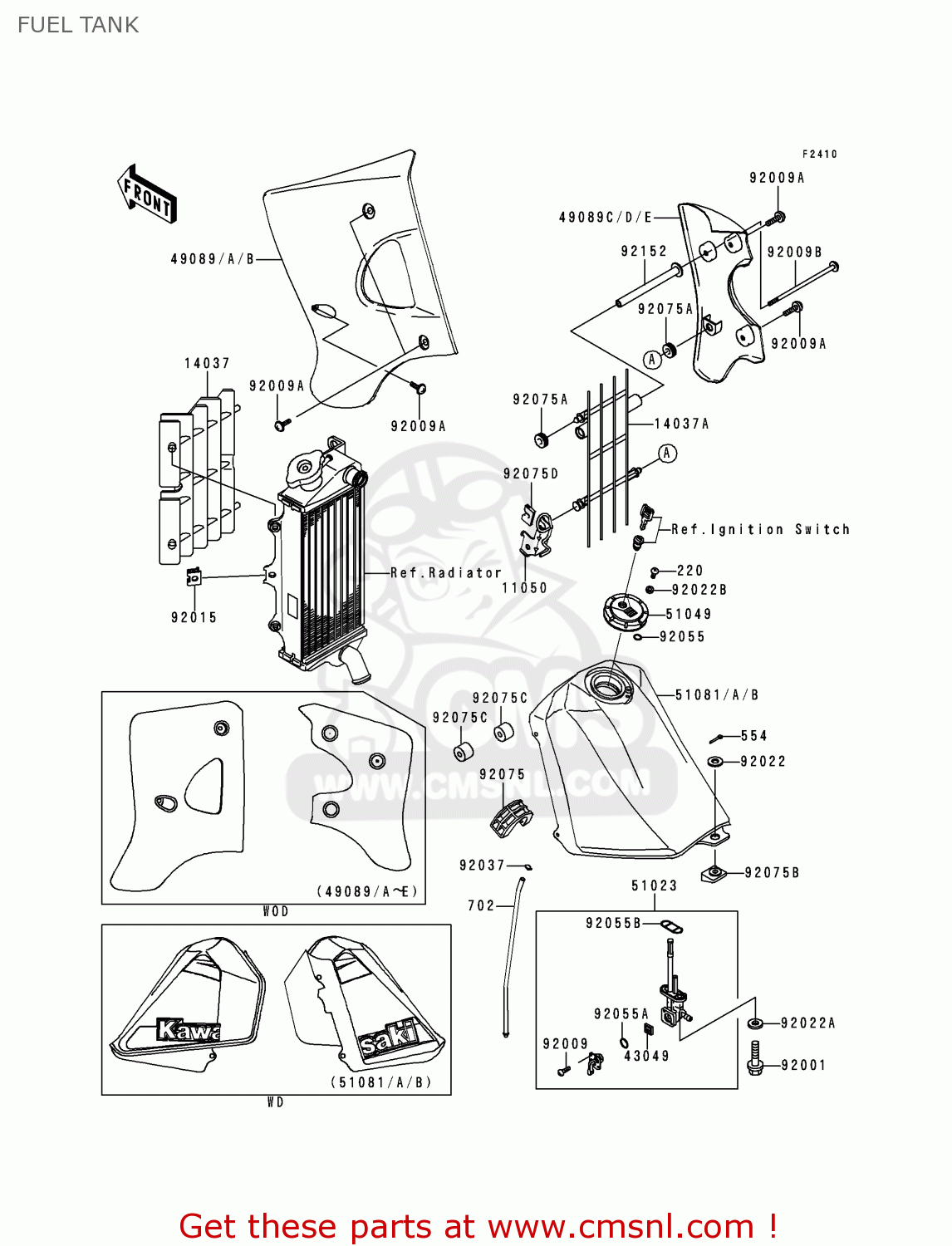

Fuel tank diagram KMX125-A13 2000 MEXICO
FUEL TANK KMX125-A13 2000 MEXICO
×
prices are in EUR
ref
part #
description
quantity
220
220D0510
ref: 220
SCREW-PAN-CROS
€ 0.50
554
554A1000
ref: 554
PIN-SNAP,10MM
€ 1.00
702
702A05650
ref: 702
TUBE, 5X1430
€ 50.00
11050
110501981
ref: 11050
BRACKET,SHROUD
€ 10.50
14037
140371104RZ
ref: 14037
SCREEN,RADIATOR,WHITE
€ 14.00
14037A
140371259RZ
ref: 14037A
SCREEN,RADIATOR,RH,WH
€ 13.50
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
49089
490891142RN
ref: 49089
SHROUD-ENGINE,LH,BLUE
€ 61.50
49089A
4908911426L
ref: 49089A
SHROUD-ENGINE,LH,F.RE
€ 61.50
49089B
4908911426W
ref: 49089B
SHROUD-ENGINE,LH,L.GR
€ 61.50
49089C
490891143RN
ref: 49089C
SHROUD-ENGINE,RH,BLUE
€ 60.00
49089D
4908911436L
ref: 49089D
SHROUD-ENGINE,RH,F.RE
€ 61.50
49089E
4908911436W
ref: 49089E
SHROUD-ENGINE,RH,L.GR
€ 61.50
51023
510231127
ref: 51023
TAP-ASSY,FUEL
€ 70.50
51049
510491077
ref: 51049
CAP-TANK,FUEL
€ 89.00
51081
5108151487F
ref: 51081
TANK-COMP-FUEL,L.GREE
€ 611.00
51081A
510815149B1
ref: 51081A
TANK-COMP-FUEL,F.RED
€ 641.50
51081B
510815150TR
ref: 51081B
TANK-COMP-FUEL,BLUE 4
€ 611.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92009A
920091286
ref: 92009A
SCREW,6X10
€ 2.50
92009B
920091868
ref: 92009B
SCREW,6X125
€ 3.50
92015
920151487
ref: 92015
NUT
€ 3.00
92022
920221137
ref: 92022
WASHER,10.5X24X1.6
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92022B
920221977
ref: 92022B
WASHER,5.1X10X1.0
€ 2.50
92037
920371610
ref: 92037
CLAMP
€ 1.50
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551111
ref: 92055A
RING-O,FUEL TAP LEVER
€ 3.50
92055B
920551112
ref: 92055B
RING-/,FUEL TAP PACKI
€ 3.00
92075
920751151
ref: 92075
DAMPER,FUEL TANK
€ 13.00
92075A
920751629
ref: 92075A
DAMPER,SEAT COVER KIT
€ 3.00
92075B
920751831
ref: 92075B
DAMPER
€ 6.50
92075C
920751934
ref: 92075C
DAMPER,FUEL TANK
€ 4.50
92075D
920751967
ref: 92075D
DAMPER
€ 3.50
92152
921521112
ref: 92152
COLLAR,L=113
€ 7.50
