ENGINE COVER(S)
KMX125-A13 2000 MEXICO

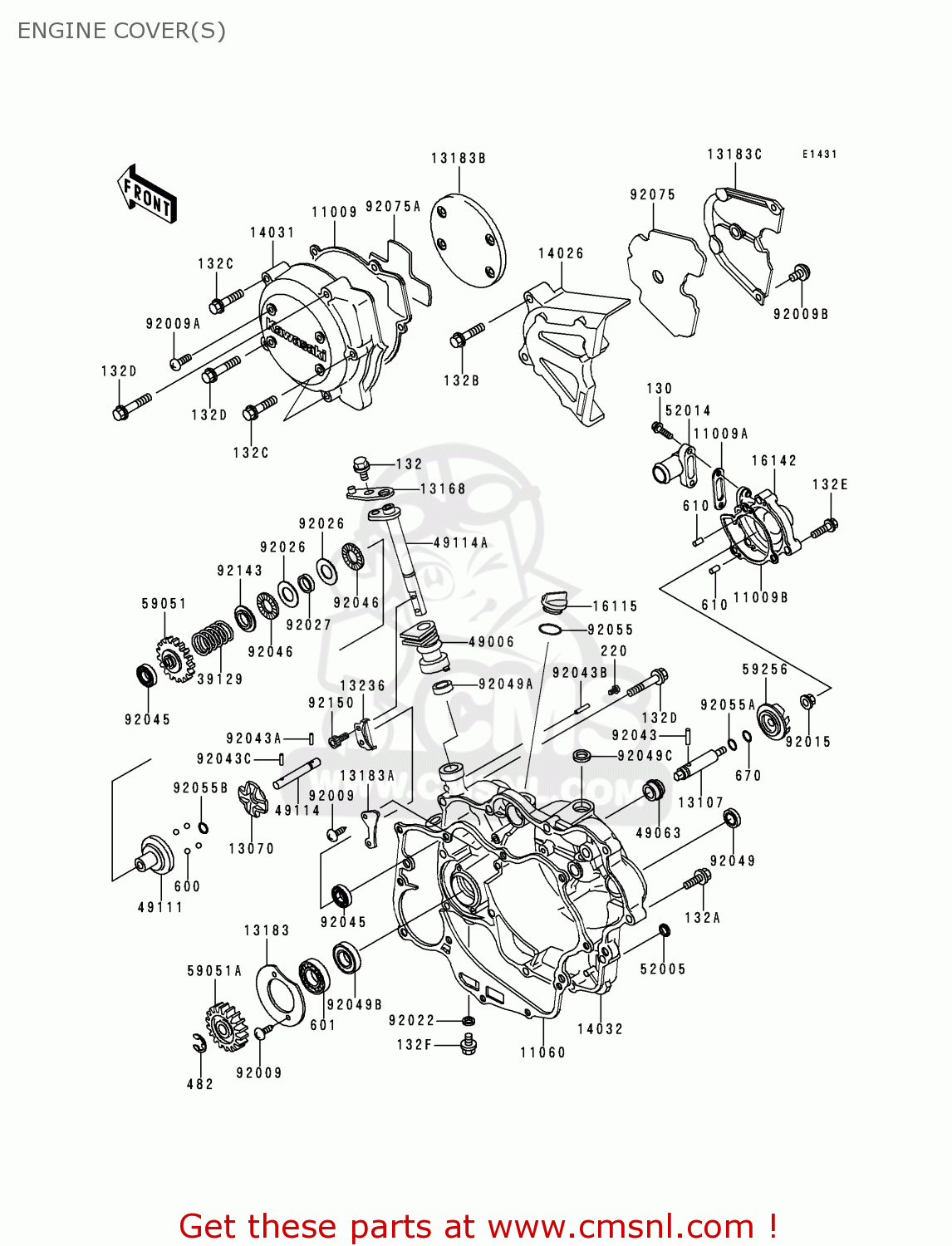

Engine cover(s) diagram KMX125-A13 2000 MEXICO
ENGINE COVER(S) KMX125-A13 2000 MEXICO
×
prices are in EUR
ref
part #
description
quantity
11009
110091942
ref: 11009
GASKET,GENERATOR COVE (NAS)
€ 9.00
11009A
110091952
ref: 11009A
GASKET,ELBOW (NAS)
€ 3.50
11009B
110091998
ref: 11009B
GASKET,WATER PUMP COV (MCA)
€ 6.00
11060
110601159
ref: 11060
GASKET,CLUTCH COVER (NAS)
€ 20.00
13070
130701122
ref: 13070
GUIDE
€ 45.50
13107
131071234
ref: 13107
SHAFT
€ 24.00
13168
131681248
ref: 13168
LEVER,GOVERNOR
€ 7.00
13183
131831044
ref: 13183
PLATE
€ 6.00
13183A
131831045
ref: 13183A
PLATE,OIL GUIDE
€ 3.50
13183B
131831059
ref: 13183B
PLATE,GENERATOR COVER
€ 17.50
13183C
131831060
ref: 13183C
PLATE,CHAIN COVER
€ 18.50
13236
132361250
ref: 13236
LEVER-COMP,GOVERNOR
€ 7.00
14026
140261259
ref: 14026
COVER-CHAIN
€ 58.50
14031
140311246
ref: 14031
COVER-GENERATOR
€ 64.50
14032
140321491
ref: 14032
COVER-CLUTCH
€ 286.50
16115
161151053
ref: 16115
CAP-OIL FILLER
€ 12.50
16142
161421154
ref: 16142
COVER-PUMP
€ 97.50
39129
391291001
ref: 39129
SPRING-GOVERNER,GOVER
€ 4.00
49006
490061171
ref: 49006
BOOT,GOVERNOR
€ 10.50
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
49111
491111051
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 44.00
49114
491141058
ref: 49114
SHAFT-GOVERNOR
€ 19.50
49114A
491141059
ref: 49114A
SHAFT-GOVERNOR
€ 28.00
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141062
ref: 52014
ELBOW
€ 18.50
59051
590511167
ref: 59051
GEAR-SPUR,GOVERNOR,21
€ 24.50
59051A
590511185
ref: 59051A
GEAR-SPUR, WATER PUMP
€ 24.00
59256
592561063
ref: 59256
IMPELLER
€ 23.00
92009
920091021
ref: 92009
SCREW,TAPPING,4X10
€ 2.50
92009A
920091154
ref: 92009A
SCREW,5X12
€ 2.50
92009B
920091155
ref: 92009B
SCREW,TAPPING,4X8
€ 2.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92027
920271839
ref: 92027
COLLAR,15.2X17X4
€ 8.50
92043
920431129
ref: 92043
PIN,3.5X23.8
€ 3.00
92043A
920431256
ref: 92043A
PIN,3X12.8
€ 3.00
92043B
920431293
ref: 92043B
PIN,2X9.8
€ 4.00
92043C
920431319
ref: 92043C
PIN,3X19.8
€ 2.50
92045
920451305
ref: 92045
BEARING-BALL,608MC3
€ 11.50
130
130J0520
ref: 130
BOLT-FLANGED
€ 2.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0635
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132G0640
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132G0645
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
132E
132G0665
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
132F
132G0810
ref: 132F
BOLT-FLANGED-SMALL
€ 2.50
220
220C0306
ref: 220
SCREW-PAN-CROS
€ 1.50
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
600
600A1000
ref: 600
BALL-STEEL,5/16
€ 0.50
601
601B6201U
ref: 601
BEARING-BALL,#6201LUC
€ 18.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B1506
ref: 670
O RING,6MM
€ 1.00
92046
920461052
ref: 92046
BEARING-NEEDLE,AXK110
€ 14.00
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
92049B
920491259
ref: 92049B
SEAL-OIL,SC12 28.555
€ 5.50
92049C
920491262
ref: 92049C
SEAL-OIL
€ 4.00
92055
92055012
ref: 92055
'O' RING 18MM
€ 1.00
92055A
92055099
ref: 92055A
O RING, 8.8MM
€ 3.00
92055B
920551343
ref: 92055B
RING-O,5.5X1.5
€ 3.00
92075
920751886
ref: 92075
DAMPER,CHAIN COVER
€ 16.00
92075A
920751895
ref: 92075A
DAMPER,GENERATOR COVE
€ 31.00
92143
921431001
ref: 92143
COLLAR
€ 15.50
92150
921501888
ref: 92150
BOLT,SOCKET,4X8
€ 2.00
