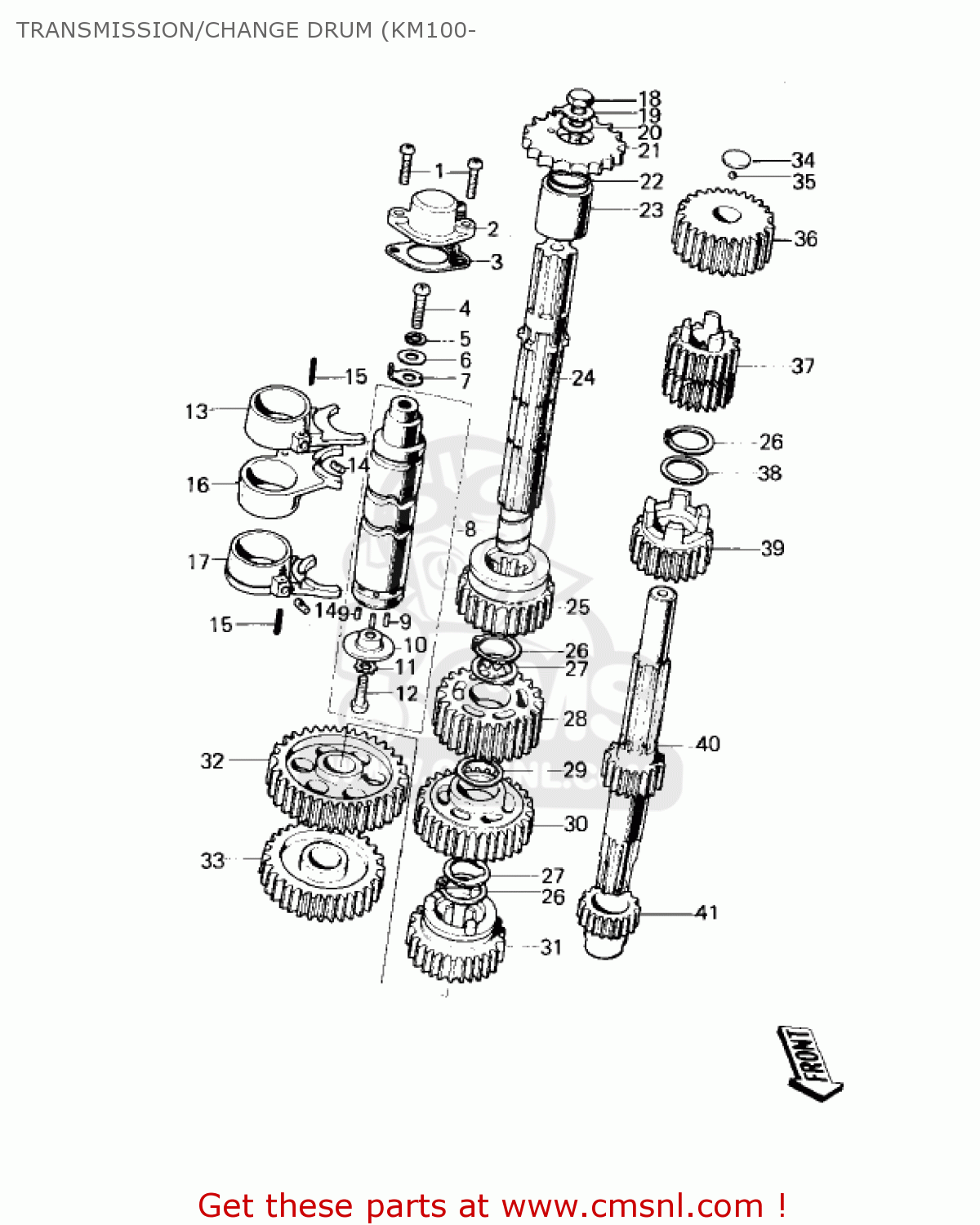

TRANSMISSION/CHANGE DRUM (KM100-

ref

part #

description

quantity

1

220B0616
ref: 1

SCREW-PAN HEAD,6X16

€ 2.50

2

131511002
ref: 2
KM100-A1/A2

SWITCH-COMP,NEUTRAL

€ 9.00

2

131511002
ref: 2
KM100-A3~

SWITCH-COMP,NEUTRAL

€ 9.00

3

13146002
ref: 3

GASKET,NEUTRAL SWITCH (NAS)

€ 2.50

4

220B0616
ref: 4

SCREW-PAN HEAD,6X16

€ 2.50

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

210071003
ref: 7
KM100-A1/A2

ROTOR,TOP & NEUTRAL

€ 4.50

7

210071003
ref: 7
KM100-A3~

ROTOR,TOP & NEUTRAL

€ 4.50

8

13239005
ref: 8
KM100-A1/A2

DRUM ASSY-GEAR CHANGE

€ 165.00

8

132391002
ref: 8
KM100-A3~

DRUM ASSY,GEAR CHANGE

€ 66.00

9

92042014
ref: 9
KM100-A1/A2

PIN-GEAR CHANGE DRUM

€ 0.50

9

92042014
ref: 9
KM100-A3~

PIN-GEAR CHANGE DRUM

€ 0.50

10

13142008
ref: 10

PLATE-CHANGE DRUM PIN

€ 4.00

11

464H0600
ref: 11

WASHER-LOCK,6MM

€ 0.50

12

220B0614
ref: 12

SCREW-PAN HEAD,6X14

€ 2.00

13

13140009
ref: 13

FORK-SELECTOR,3RD

€ 46.50

14

92043005
ref: 14

PIN,DOWEL,8X15

€ 4.50

15

550D3020
ref: 15

PIN-COTTER,3.0X20

€ 2.00

16

13140017
ref: 16

FORK-SELECTOR,4TH-TOP

€ 120.00

17

13140010
ref: 17

FORK-SHIFT,LOW&2ND

€ 81.50

18

115G0816
ref: 18

BOLT-HEX,HEAD 8X16

€ 0.50

19

92030012
ref: 19

WASHER,CLAW,8X22X1.2

€ 3.50

20

92022266
ref: 20

WASHER,T=2.3

€ 3.50

21

131441058
ref: 21
STD

SPROCKET-OUTPUT,14T

€ 20.00

21

13144053
ref: 21
OFF ROAD USE ONLY

SPROCKET-OUTPUT,13T

€ 30.00

21

13144054
ref: 21
OFF ROAD USE ONLY

SPROCKET-OUTPUT,15T

€ 30.00

22

92055022
ref: 22

'O' RING

€ 4.00

23

92027179
ref: 23

COLLAR,ENG SPROCKET

€ 12.50

23

920271595
ref: 23

COLLAR,ENGINE SPROCKE

€ 12.50

24

13128021
ref: 24

SHAFT-OUTPUT

€ 160.50

25

13137012
ref: 25
237

TOP GEAR-OUTPUT SHAFT

€ 28.50

26

92033014
ref: 26

RING-SNAP,16MM

€ 3.50

27

92024030
ref: 27

WASHER,TOOTHED,18.5X2

€ 4.00

28

13133005
ref: 28
26T

GEAR,OUTPUT 3RD,26T

€ 46.50

29

92022146
ref: 29
T = 1.6 M/M

WASHER,THRUST,18.5X23

€ 4.50

30

13131008
ref: 30
30T

GEAR,OUTPUT 2ND,30T

€ 40.50

31

131291708
ref: 31
24T

GEAR,OUTPUT 4TH,24T

€ 70.00

32

13129010
ref: 32
35T

GEAR,OUTPUT LOW,35T

€ 66.50

33

13073004
ref: 33
30T

GEAR-SPUR,KICKSTARTER

€ 55.50

34

92022115
ref: 34

WASHER,THRUST

€ 2.50

35

600A0700
ref: 35

BALL-STEEL,7/32

€ 2.50

36

131291927
ref: 36
24T

GEAR, INPUT TOP 24T

€ 25.00

37

131291052
ref: 37
KM100-A1/A2

GEAR,INPUT 2ND&3RD,17

€ 55.00

37

131291052
ref: 37
KM100-A3~

GEAR,INPUT 2ND&3RD,17

€ 55.00

38

92022118
ref: 38
T = 1.2 M/M

WASHER,18.5X23X1.2

€ 3.00

39

131291053
ref: 39
KM100-A1/A2

GEAR,INPUT 4TH,16T

€ 23.50

39

131291053
ref: 39
KM100-A3~

GEAR,INPUT 4TH,16T

€ 23.50

40

13127032
ref: 40
12T

SHAFT,DRIVE

€ 76.00

41

13075004
ref: 41
16T

GEAR-SPUR,KICKSTARTER

€ 40.50
