FRONT FORK
KM100-A7 KM100 1981 USA CANADA / MPH KPH

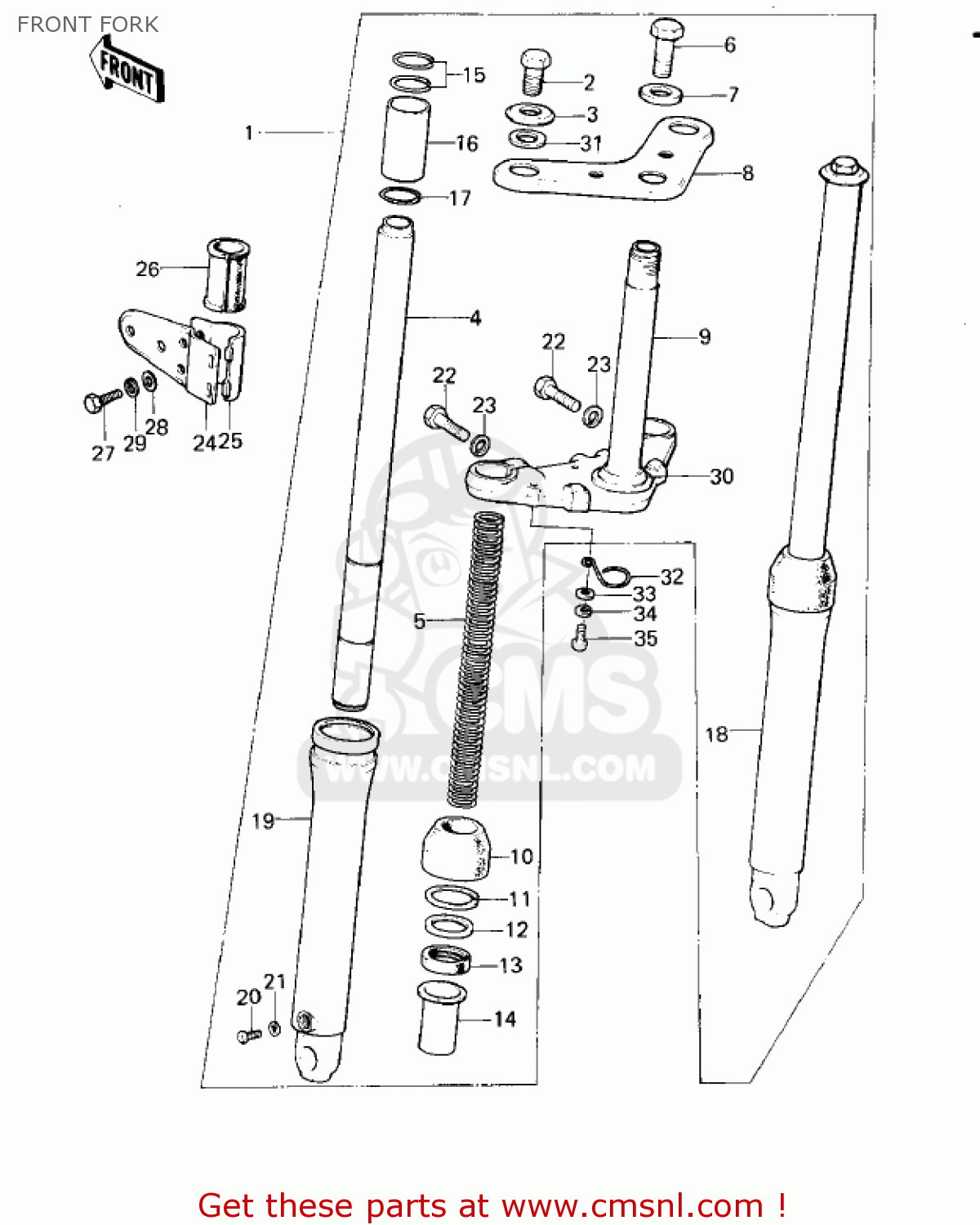

Front fork diagram KM100-A7 KM100 1981 USA CANADA / MPH KPH
FRONT FORK KM100-A7 KM100 1981 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
44001161
ref: 1
KM100-A1/A2/A3/A3A/A
FRONT FORK ASSY
€ 488.00
1
440011419
ref: 1
KM100-A6~
FRONT FORK
€ 528.50
2
920011742
ref: 2
BOLT
€ 10.50
3
920221381
ref: 3
WASHER
€ 6.00
4
44013051
ref: 4
KM100-A1/A2/A3/A3A/A
TUBE,FORK INNER
€ 45.50
4
440131034
ref: 4
KM100-A6~
TUBE,FORK INNER
€ 58.00
5
44026055
ref: 5
KM100-A1/A2/A3/A3A/A
SPRING,FORK
€ 6.00
5
440261050
ref: 5
KM100-A6~
SPRING,FORK INNER
€ 10.50
6
112G1030
ref: 6
BOLT UPSET
€ 4.50
7
920221381
ref: 7
WASHER
€ 6.00
8
44039056
ref: 8
KM100-A1/A2/A3/A3A/A
HEAD,STEERING
€ 27.50
8
440391025
ref: 8
KM100-A6~
HOLDER-FORK UPPER
€ 44.00
9
44037069
ref: 9
KM100-A1/A2/A3/A3A/A
STEM,STEERING
€ 138.50
9
440371034
ref: 9
KM100-A6~
HOLDER-FORK UNDER
€ 110.00
10
44010024
ref: 10
DUST SHIELD,FORK
€ 9.00
11
44044016
ref: 11
RING-SNAP,40MM
€ 4.50
12
44043054
ref: 12
WASHER,FORK OUTER PIP
€ 2.50
13
920491075
ref: 13
SEAL OIL, OUTER TUBE
€ 10.00
14
44015016
ref: 14
GUIDE,FORK INNER PIPE
€ 10.50
15
44020003
ref: 15
RING,INNER TUBE GUIDE
€ 2.00
16
44018007
ref: 16
PISTON-FORK
€ 9.50
17
44044017
ref: 17
CIRCLIP,OUTER TUBE
€ 2.00
18
44006050
ref: 18
TUBE,R.H OUTER
€ 93.50
19
44005052
ref: 19
TUBE,L.H FORK OUTER
€ 65.50
20
220B0406
ref: 20
SCREW-PAN-CROS,4X6
€ 2.50
21
44045046
ref: 21
GASKET,FORK DRAIN PLU (NAS)
€ 4.50
22
920011252
ref: 22
BOLT,HEX HEAD,10X35
€ 3.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
23064025
ref: 24
KM100-A1/A2/A3/A3A/A
HEADLAMP BRACKET
€ 39.50
24
110341665
ref: 24
KM100-A6~
BRACKET,HEAD LAMP
€ 13.50
25
23064026
ref: 25
BRACKET,HEAD LAMP
€ 10.50
26
92075210
ref: 26
DAMPER RUBBER,HD LAMP
€ 3.50
27
92007048
ref: 27
KM100-A1/A2/A3/A3A/A
BOLT,HEX HEAD,6X28
€ 2.50
27
112G0630
ref: 27
KM100-A6~
BOLT-UPSET
€ 1.00
28
411D0600
ref: 28
WASHER-PLAIN,6MM
€ 1.50
29
461F0600
ref: 29
WASHER-SPRING,6MM
€ 0.50
30
92047004
ref: 30
CONE-LOWER BEARING
€ 13.00
31
44045053
ref: 31
GASKET,FORK TOP BOLT (NAS)
€ 3.00
32
92037046
ref: 32
CLAMP,CABLE
€ 3.00
33
410B0600
ref: 33
WASHER-PLAIN-SMALL,6M
€ 0.50
34
461F0600
ref: 34
WASHER-SPRING,6MM
€ 0.50
35
112G0612
ref: 35
BOLT-UPSET
€ 2.50
