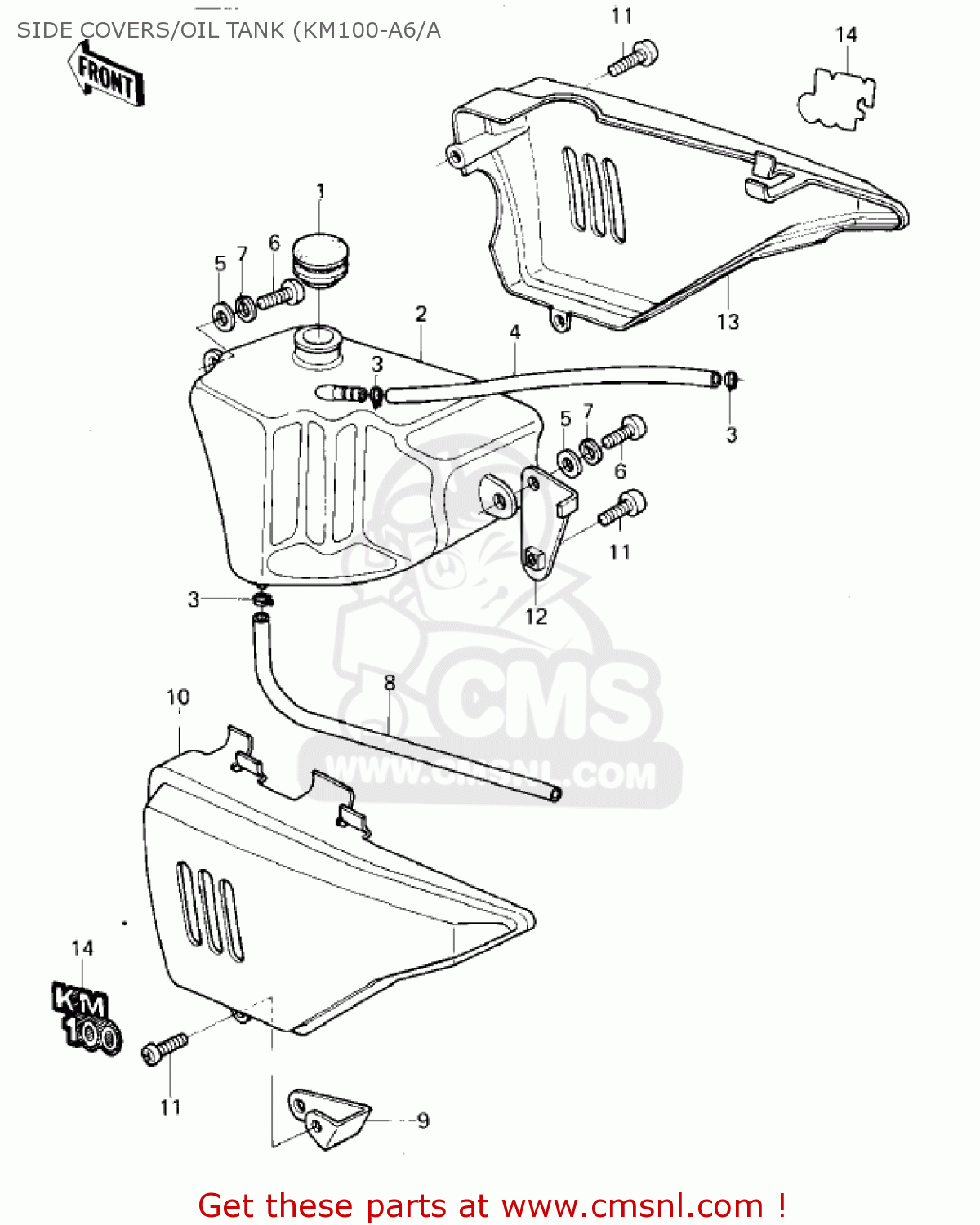

SIDE COVERS/OIL TANK (KM100-A6/A

ref

part #

description

quantity

1

52003024
ref: 1

CAP-TANK,OIL

€ 7.00

2

520011005
ref: 2

TANK-OIL

€ 41.00

3

92037010
ref: 3

CLAMP-FUEL PIPE

€ 2.50

4

700Q05400
ref: 4

TUBE-VINYL,5X400

€ 1.50

5

92022125
ref: 5

WASHER,6.5X20X1.6

€ 1.00

6

220B0616
ref: 6

SCREW-PAN HEAD,6X16

€ 2.50

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

920591691
ref: 8
L = 170 M/M

TUBE,4.5X9X380

€ 4.00

9

110341620
ref: 9

BRACKET,LH SIDE COVER

€ 4.50

10

3600110836R
ref: 10
KM100-A6

COVER,LH SIDE S.YELLW

€ 10.00

10

3600110836L
ref: 10
KM100-A6

COVER,LH SIDE F RED

€ 12.00

10

3600110836L
ref: 10
KM100-A7

COVER,LH SIDE F RED

€ 12.00

10

3600110836G
ref: 10
KM100-A7

SIDE COVER,LH,SUN BATH YELLOW

€ 14.00

11

920091287
ref: 11

SCREW,6X14

€ 1.50

12

110341621
ref: 12

BRACKET,SIDE COVER,RH

€ 6.00

13

3600110846R
ref: 13
KM100-A6

COVER,R.H SIDE YELLOW

€ 9.50

13

3600110846L
ref: 13
KM100-A6

COVER,RH SIDE F RED

€ 7.50

13

3600110846L
ref: 13
KM100-A7

COVER,RH SIDE F RED

€ 7.50

13

3600110846G
ref: 13
KM100-A7

SIDE COVER,RH,SUN BATH YELLOW

€ 11.50

14

560181141
ref: 14

EMBLEM,SIDE COVER

€ 8.00

all assemblies
