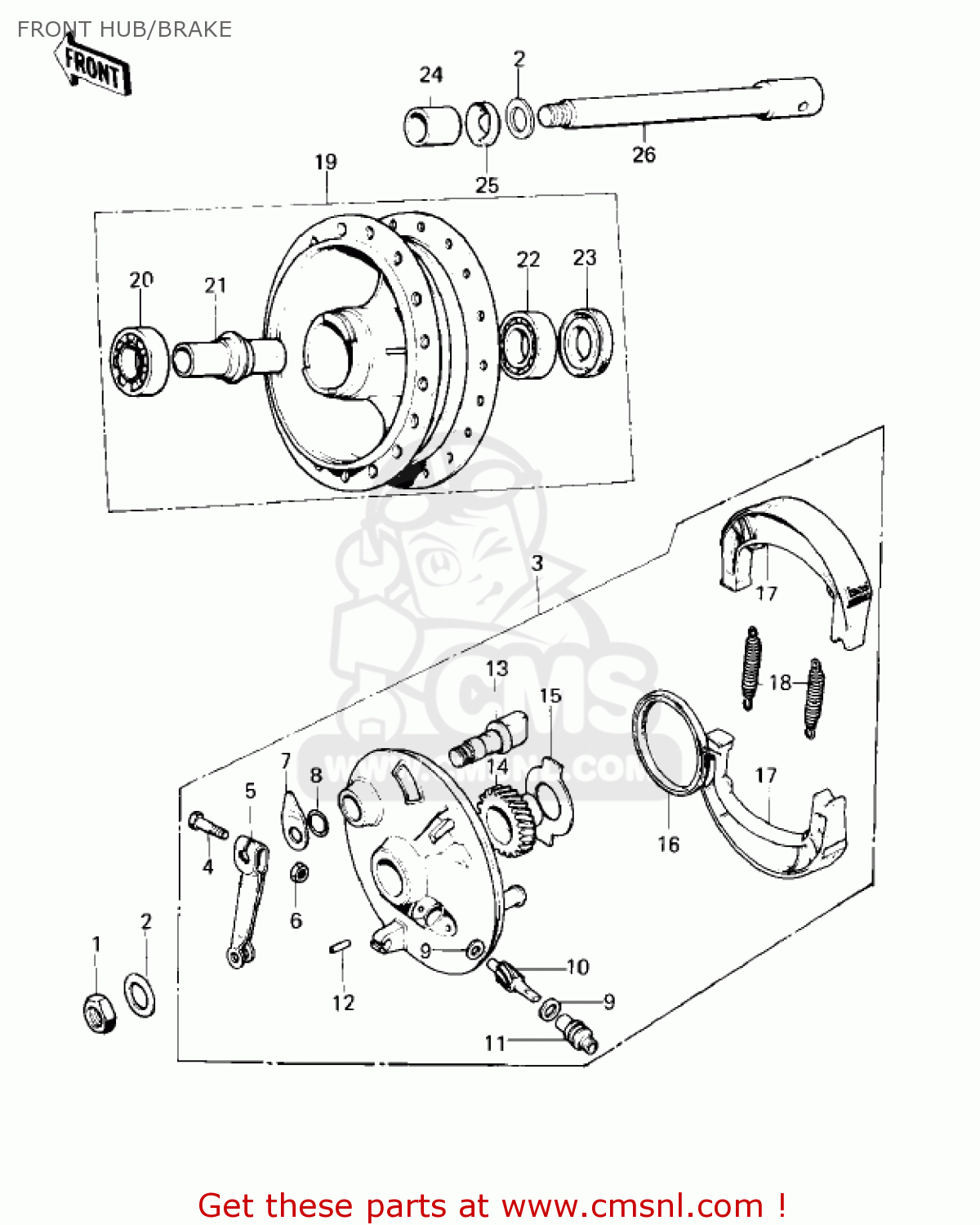

FRONT HUB/BRAKE

ref

part #

description

quantity

1

42045005
ref: 1

NUT,10MM

€ 5.00

2

411B1000
ref: 2

WASHER-PLAIN,10MM

€ 0.50

3

410351027
ref: 3
WHN EXH USE 41035-10

PANEL ASSY,FRONT BRKE

€ 110.50

3

410351027
ref: 3
KM100-A6~

PANEL ASSY,FRONT BRKE

€ 110.50

4

112G0630
ref: 4

BOLT-UPSET

€ 1.00

5

41053005
ref: 5

LEVER-BRAKE CAM

€ 11.50

6

41072007
ref: 6

NUT,6MM

€ 2.50

7

41085013
ref: 7

INDICATOR,BRAKE SHOE

€ 10.00

8

92055004
ref: 8

RING-O,BRAKE CAM

€ 3.00

9

41063001
ref: 9

WASHER-THRST SPD PINI

€ 3.00

10

41060014
ref: 10

PINION SPEEDOMET 10T

€ 19.00

11

41062005
ref: 11

BUSHING,SPEEDOMETER C

€ 12.00

12

41082001
ref: 12

PIN-SPRING

€ 2.50

13

41050018
ref: 13

CAM-BRAKE

€ 18.00

14

410601026
ref: 14

GEAR,SPEEDOMETER

€ 29.50

15

41064010
ref: 15

RECEIVER-SPEEDOMETER

€ 6.50

16

92050002
ref: 16

OIL SEAL-BRAKE PANEL

€ 9.00

17

410481085
ref: 17

SHOE-BRAKE (NAS)

€ 13.00

18

920811766
ref: 18

SPRING,BRAKE SHOE

€ 5.50

19

410341040
ref: 19

DRUM-ASSY,FR,BUFF FIN

€ 203.50

20

601B6300Z
ref: 20

BEARING-BALL,#6300ZC3

€ 18.50

21

41039002
ref: 21

COLLAR,L=51

€ 6.00

22

601B6200
ref: 22

BEARING-BALL,#6200C3

€ 11.50

23

92050063
ref: 23

OIL SEAL,TC17317

€ 10.00

24

41069026
ref: 24

COLLAR,L=13

€ 9.00

25

41042002
ref: 25
NOT USE FOR KM100-A3

DUST SHIELD-FRNT DRUM

€ 2.50

26

41068039
ref: 26

AXLE-FRONT

€ 20.00

all assemblies
