GEAR CHANGE MECHANISM

KLX650C1 1993 EUROPE UK FR NL AR FG GR IT SD SP ST

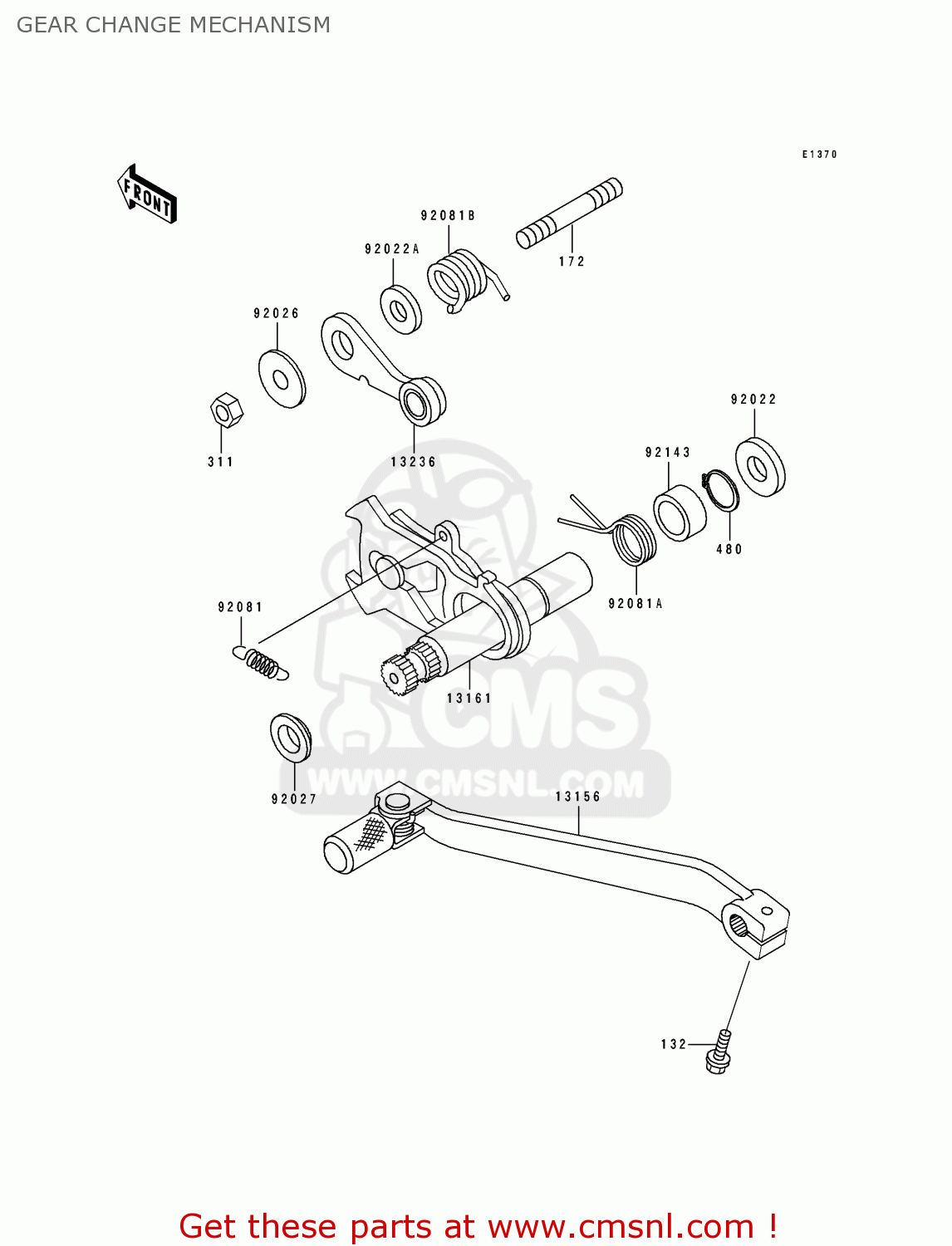

Gear change mechanism diagram KLX650C1 1993 EUROPE UK FR NL AR FG GR IT SD SP ST

prices are in EUR

ref

part #

description

quantity

132

132Y0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13156

131561343
ref: 13156

LEVER-CHANGE,PEDAL

€ 52.50

13161

131611214
ref: 13161

LEVER-COMP-CHANGE SHA

€ 57.50

13236

132361242
ref: 13236

LEVER-COMP,DRUM POSIT

€ 6.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92027

920271512
ref: 92027

COLLAR,CHANGE SHAFT,L

€ 8.00

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

920811129
ref: 92081A

SPRING,TENTION

€ 6.50

92081B

920811993
ref: 92081B

SPRING,POSITION LEVER

€ 4.00

92143

921431148
ref: 92143

COLLAR

€ 3.00
