FRAME

KLX650C1 1993 EUROPE UK FR NL AR FG GR IT SD SP ST

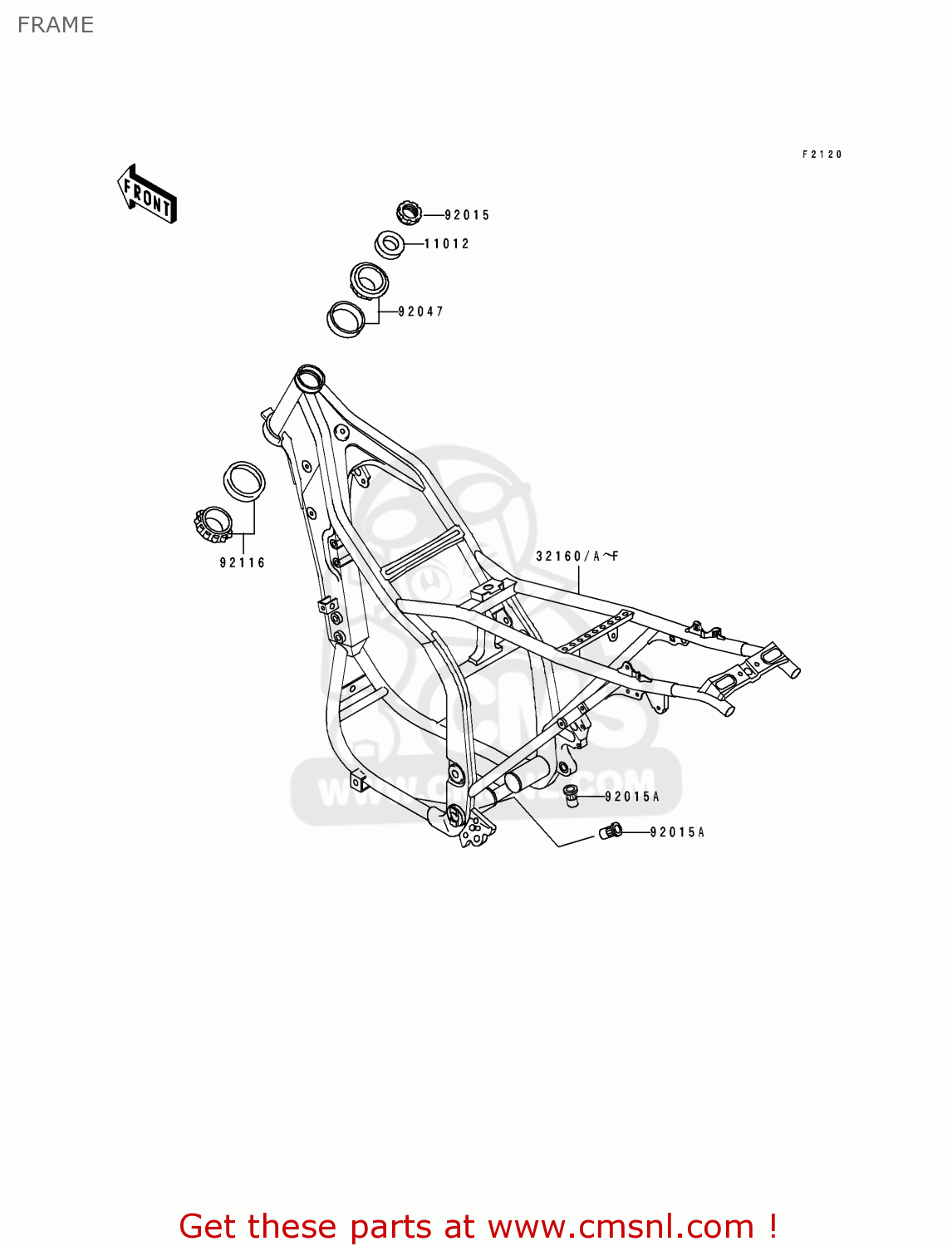

Frame diagram KLX650C1 1993 EUROPE UK FR NL AR FG GR IT SD SP ST

prices are in EUR

ref

part #

description

quantity

11012

110121762
ref: 11012

CAP,STEERING STEM

€ 4.00

32160

321601277KT
ref: 32160
AREUFRGRNLSPSTUK

FRAME-COMP,P.GREEN

€ 1,304.00

32160A

321601277TY
ref: 32160A
AREUFRNLSPSTUK

FRAME-COMP,VIOLET

€ 1,314.00

32160B

321601281KT
ref: 32160B
FGSD

FRAME-COMP,P.GREEN

€ 1,327.50

32160C

321601281TY
ref: 32160C
FGNR

FRAME-COMP,VIOLET

€ 1,319.50

32160D

321601312KT
ref: 32160D
IT

FRAME-COMP,P.GREEN

€ 1,080.00

32160E

321601312TY
ref: 32160E
IT

FRAME-COMP,VIOLET

€ 1,205.00

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92015A

920151791
ref: 92015A

NUT,POP,6MM

€ 3.00

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92116

921161069
ref: 92116

BEARING-ROLLER

€ 69.50
