KICKSTARTER MECHANISM
KLX650A3 KLX650R 1995 EUROPE FR

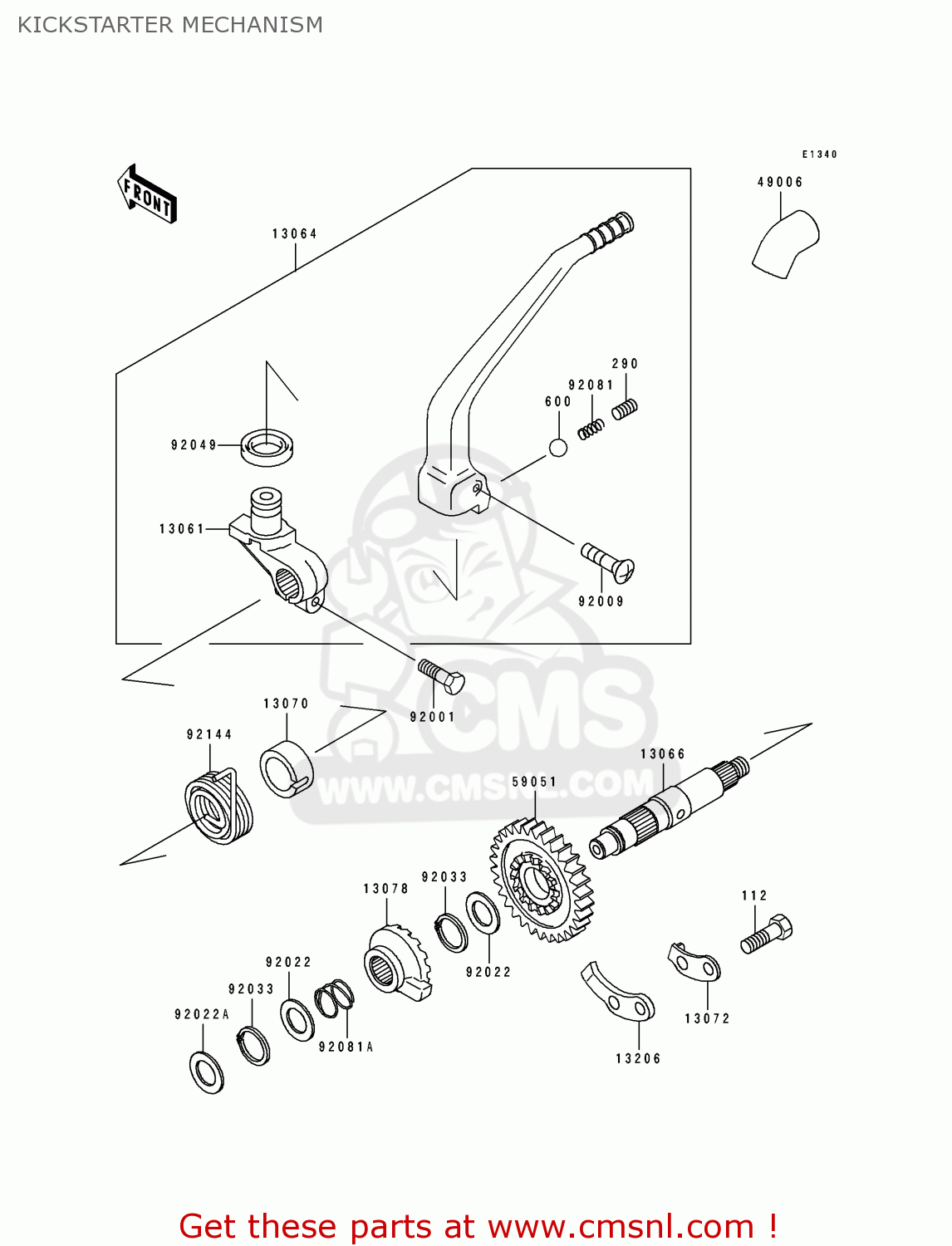

Kickstarter mechanism diagram KLX650A3 KLX650R 1995 EUROPE FR
KICKSTARTER MECHANISM KLX650A3 KLX650R 1995 EUROPE FR
×
prices are in EUR
ref
part #
description
quantity
112
112G0618
ref: 112
BOLT-UPSET
€ 0.50
290
290T0808
ref: 290
SCREW-SET-SOCKET,8X8
€ 2.00
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
13061
130611375
ref: 13061
BOSS,KICK PEDAL
€ 56.50
13064
130641171
ref: 13064
LEVER-ASSY-KICK,PEDAL
€ 185.00
13066
130661086
ref: 13066
SHAFT-KICK
€ 109.50
13070
130701106
ref: 13070
GUIDE,KICK SPRING
€ 11.50
13072
13072014
ref: 13072
STOPPER,KICKSTARTER
€ 6.50
13078
130781051
ref: 13078
RATCHET
€ 45.00
13206
132061064
ref: 13206
GUIDE-KICK
€ 6.50
49006
490061284
ref: 49006
BOOT,KICK PEDAL
€ 2.50
59051
590511278
ref: 59051
GEAR,KICKSTARTER,32T
€ 112.50
92001
920011042
ref: 92001
BOLT,HEX HEAD,8X28
€ 4.00
92009
920091590
ref: 92009
SCREW,6X30
€ 3.00
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
92022252
ref: 92022A
WASHER
€ 4.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92049
920491406
ref: 92049
SEAL-OIL
€ 3.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
€ 2.50
92081A
92081097
ref: 92081A
SPRING
€ 7.50
92144
921441675
ref: 92144
SPRING,KICKSTARTER
€ 18.00
