GEAR CHANGE DRUM/SHIFT FORK(S)

KLX650A3 KLX650R 1995 EUROPE FR

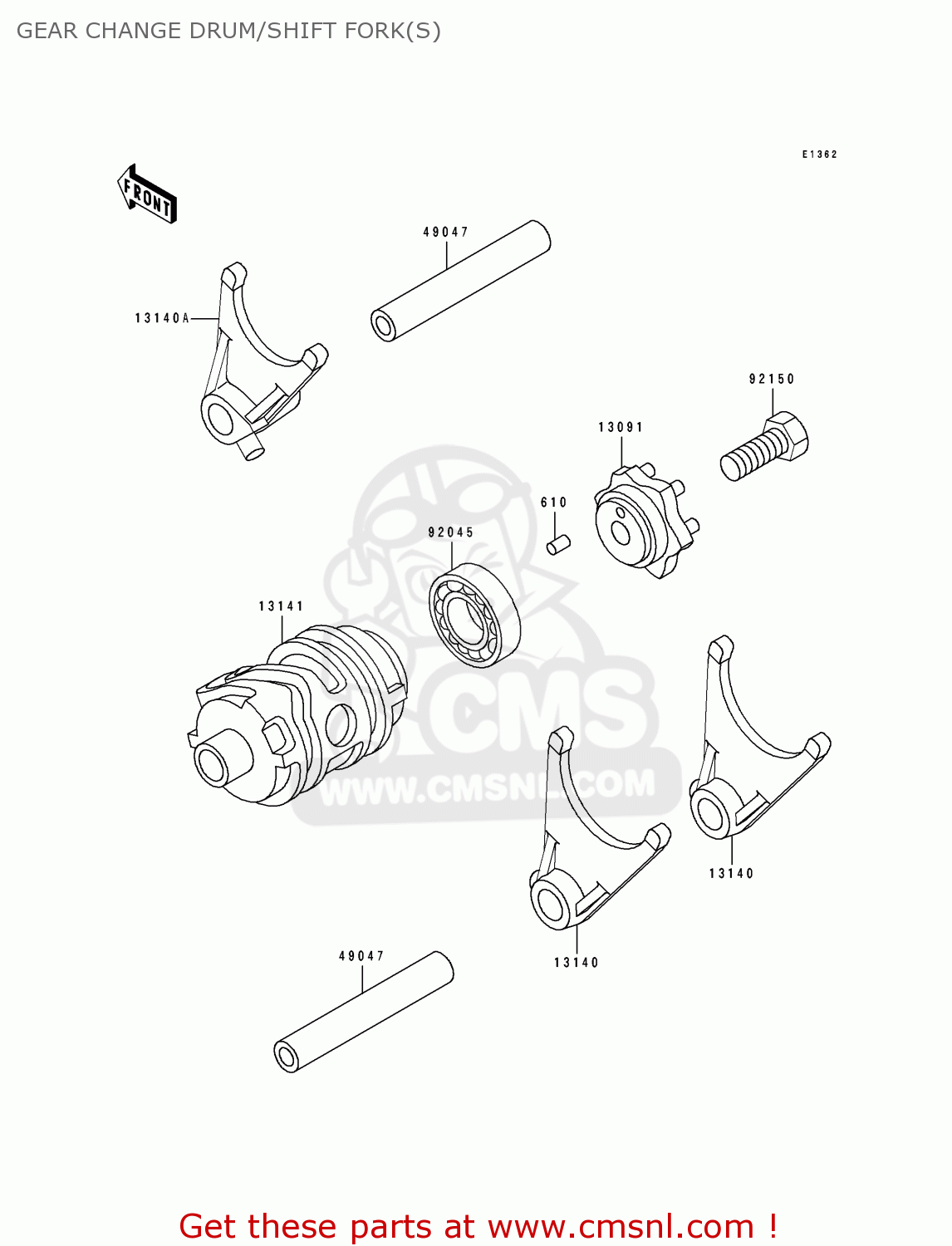

Gear change drum/shift fork(s) diagram KLX650A3 KLX650R 1995 EUROPE FR

GEAR CHANGE DRUM/SHIFT FORK(S) KLX650A3 KLX650R 1995 EUROPE FR

GEAR CHANGE DRUM/SHIFT FORK(S) KLX650A3 KLX650R 1995 EUROPE FR

prices are in EUR

ref

part #

description

quantity

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

13091

130911722
ref: 13091

HOLDER,CHANGE DRUM

€ 41.00

13140

131401212
ref: 13140

FORK-SHIFT,OUTPUT

€ 71.00

13140A

131401213
ref: 13140A

FORK-SHIFT,INPUT

€ 67.50

13141

131411180
ref: 13141

DRUM-CHANGE

€ 192.00

49047

490471003
ref: 49047

ROD,SHIFT 93.7MM

€ 18.00

92045

92045036
ref: 92045

BEARING-BALL,#6905

€ 29.00

92150

921501645
ref: 92150

BOLT

€ 2.00
