WATER PUMP
KLX650A3 1995 USA CALIFORNIA CANADA

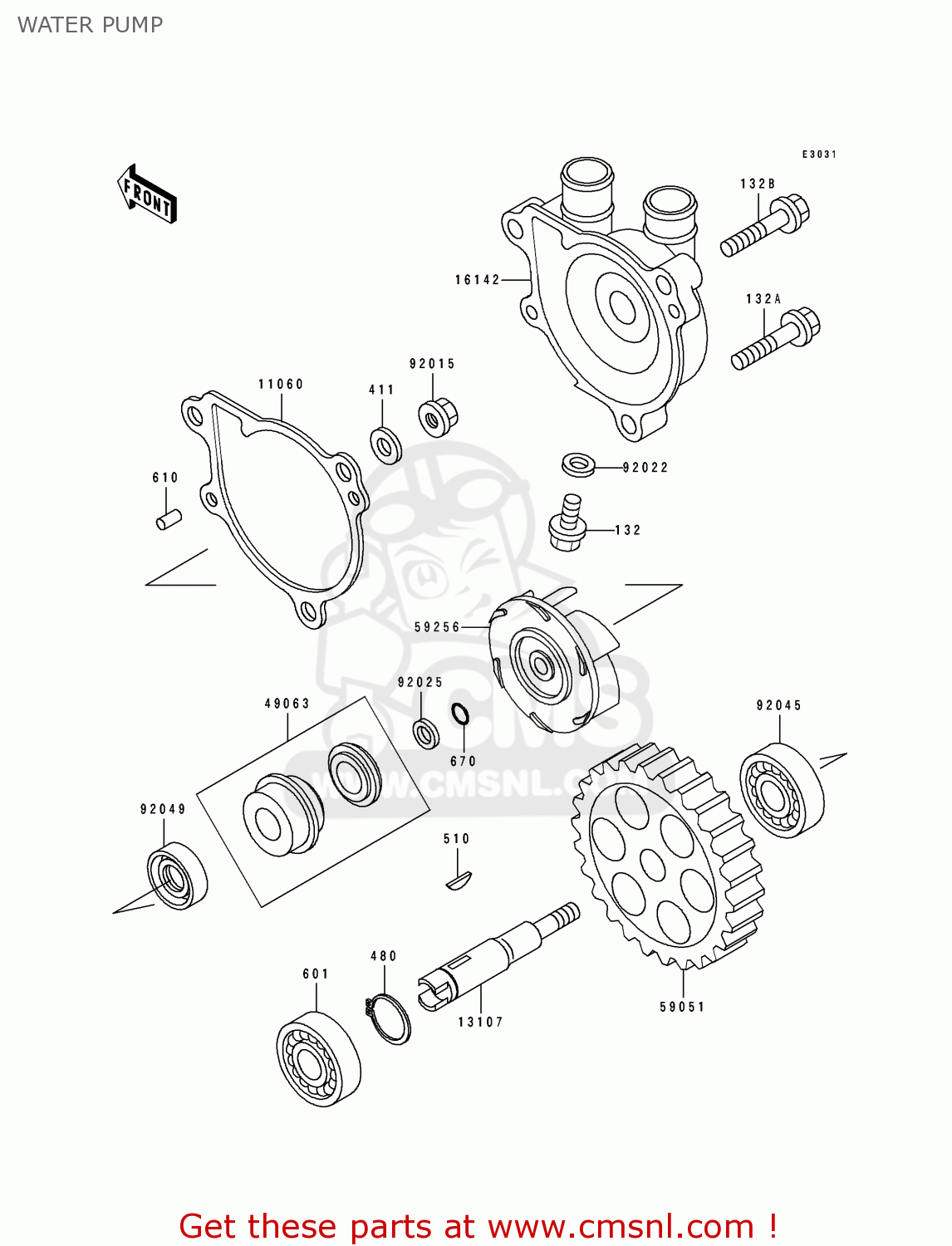

Water pump diagram KLX650A3 1995 USA CALIFORNIA CANADA
WATER PUMP KLX650A3 1995 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132Y0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132Y0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
510
510A3100
ref: 510
KEY-WOODRUFF
€ 1.50
601
601A6001
ref: 601
BEARING-BALL
€ 9.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B1506
ref: 670
O RING,6MM
€ 1.00
11060
110601114
ref: 11060
GASKET,WATER PUMP COV (NAS)
€ 5.00
13107
131071305
ref: 13107
SHAFT,WATER PUMP
€ 25.00
16142
161421122
ref: 16142
COVER-PUMP
€ 81.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
€ 19.00
59051
590511284
ref: 59051
GEAR-SPUR,37T
€ 112.50
59256
592561055
ref: 59256
IMPELLER
€ 20.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92025
920251503
ref: 92025
SHIM,T=0.8
€ 2.50
92045
920451246
ref: 92045
BEARING-BALL,6901
€ 29.50
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
€ 7.00
