REAR HUB

KLX650A1 KLX650R 1993 EUROPE

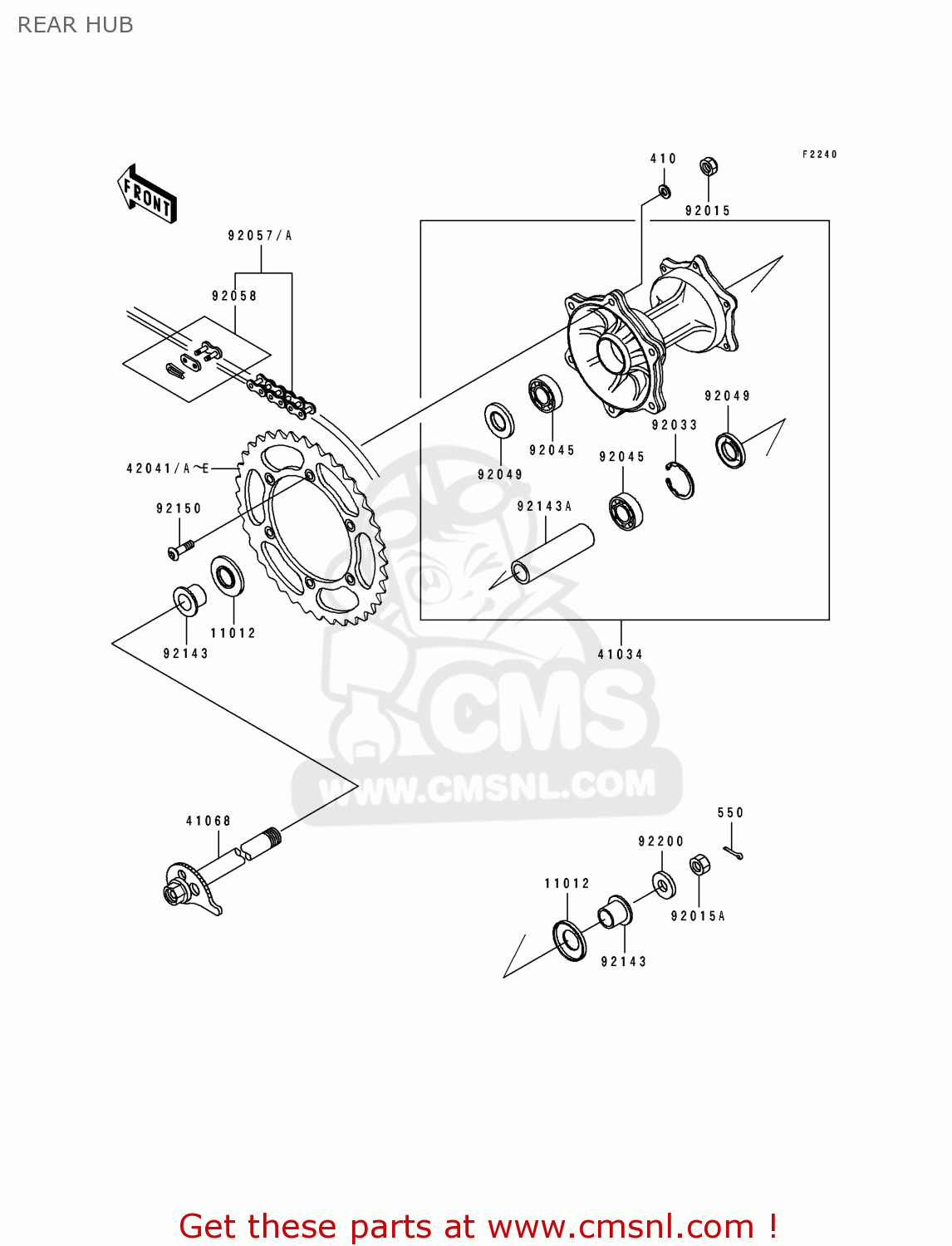

Rear hub diagram KLX650A1 KLX650R 1993 EUROPE

REAR HUB KLX650A1 KLX650R 1993 EUROPE
REAR HUB KLX650A1 KLX650R 1993 EUROPE
REAR HUB KLX650A1 KLX650R 1993 EUROPE
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
550D3025
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
110121581
€ 4.00
41034
410341216
ref: 41034
DRUM-ASSY,REAR BRAKE
410341216
€ 424.50
41068
410681340
ref: 41068
AXLE,RR
€ 95.00
42041
420411381
ref: 42041
SPROCKET-HUB,46T
420411381
€ 38.50
42041A
420411382
ref: 42041A
SPROCKET-HUB,47T
420411382
€ 38.50
42041B
420411383
ref: 42041B
SPROCKET, HUB, 48T
420411383
€ 38.50
42041C
420411384
ref: 42041C
SPROCKET-HUB,49T
420411384
€ 38.50
42041D
420411408
ref: 42041D
SPROCKET-HUB,50T
420411408
€ 37.00
42041E
420411413
ref: 42041E
SPROCKET-HUB,45T
420411413
€ 38.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92015A
920151770
ref: 92015A
NUT,LOCK,20MM
920151770
€ 19.00
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
920451239
€ 30.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
920491203
€ 12.00
92057
920571383
ref: 92057
CHAIN
920571383
€ 34.50
92058
920581068
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92143
921431259
ref: 92143
COLLAR,RR AXLE,L=22
921431259
€ 26.00
92143A
921431402
ref: 92143A
COLLAR,RR BRAKE DRUM,
921431402
€ 10.50
92150
921501196
ref: 92150
BOLT,SOCKET,8X28
921501196
€ 5.50
92200
922001146
ref: 92200
WASHER,20.2X36X2
922001146
€ 3.00
