CYLINDER/PISTON(S)
KLX650A1 KLX650R 1993 EUROPE

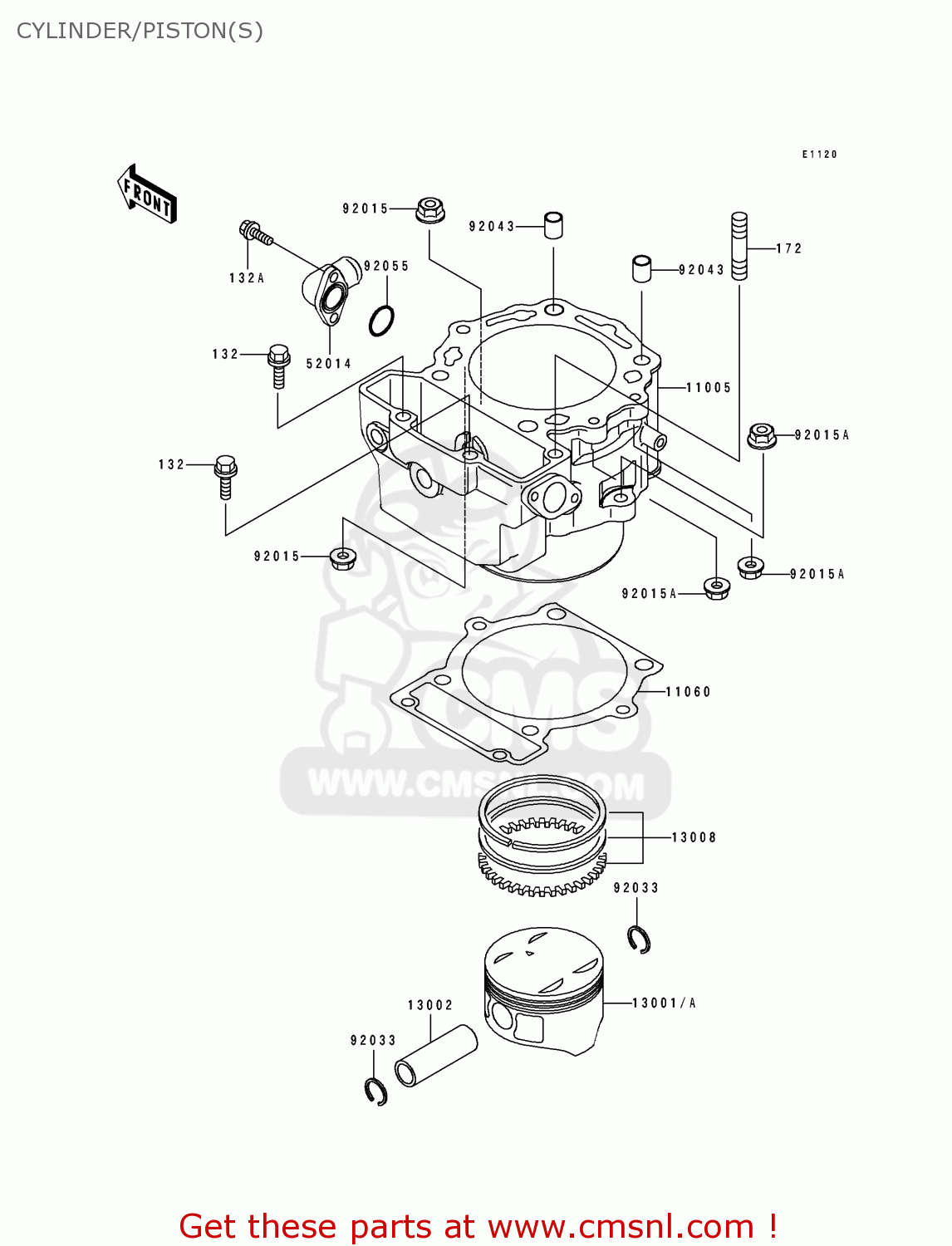

Cylinder/piston(s) diagram KLX650A1 KLX650R 1993 EUROPE
CYLINDER/PISTON(S) KLX650A1 KLX650R 1993 EUROPE
×
prices are in EUR
ref
part #
description
quantity
132
132G0825
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132Y0614
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
172
172G0820
ref: 172
STUD,8X20
€ 1.50
11005
110051719
ref: 11005
CYLINDER-ENGINE
€ 639.00
11060
110601292
ref: 11060
GASKET,CYLINDER BASE (NAS)
€ 12.50
13001
130011417
ref: 13001
PISTON-ENGINE
€ 111.00
13002
130021101
ref: 13002
PIN-PISTON
€ 22.00
13008
130081156
ref: 13008
RING-SET-PISTON
€ 90.00
52014
520141065
ref: 52014
ELBOW
€ 25.50
92015
920151365
ref: 92015
NUT,6MM
€ 3.00
92015A
920151402
ref: 92015A
NUT,8MM
€ 3.00
92033
920331226
ref: 92033
RING-SNAP
€ 2.50
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92055
92055055
ref: 92055
'0'RING
€ 2.50
