WATER PUMP

KLX650A1 1993 USA CALIFORNIA CANADA

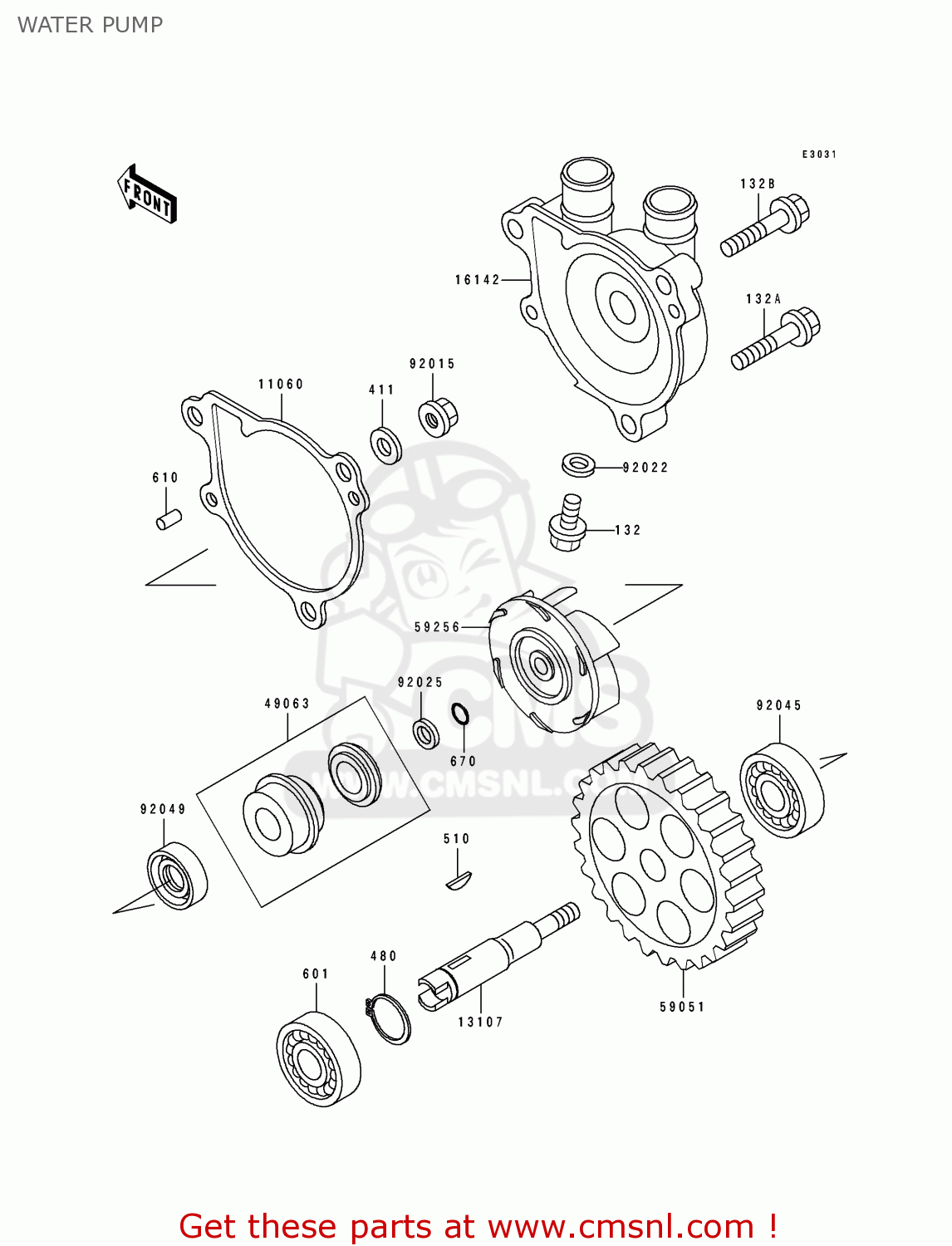

Water pump diagram KLX650A1 1993 USA CALIFORNIA CANADA

WATER PUMP KLX650A1 1993 USA CALIFORNIA CANADA
WATER PUMP KLX650A1 1993 USA CALIFORNIA CANADA
WATER PUMP KLX650A1 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132Y0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132Y0630
ref: 132A
BOLT-FLANGED-SMALL
132Y0630
€ 2.50
132B
132Y0635
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
510
510A3100
ref: 510
KEY-WOODRUFF
510A3100
€ 1.50
601
601A6001
ref: 601
BEARING-BALL
601A6001
€ 9.00
610
610A0408
ref: 610
ROLLER,4X8
610A0408
€ 2.50
670
670B1506
ref: 670
O RING,6MM
670B1506
€ 1.00
11060
110601114
ref: 11060
GASKET,WATER PUMP COV (NAS)
110601114
€ 5.00
13107
131071305
ref: 13107
SHAFT,WATER PUMP
131071305
€ 25.00
16142
161421122
ref: 16142
COVER-PUMP
€ 81.00
49063
490631054
ref: 49063
SEAL-MECHANICAL
490631054
€ 19.00
59051
590511284
ref: 59051
GEAR-SPUR,37T
590511284
€ 112.50
59256
592561055
ref: 59256
IMPELLER
592561055
€ 20.00
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92025
920251503
ref: 92025
SHIM,T=0.8
€ 2.50
92045
920451246
ref: 92045
BEARING-BALL,6901
920451246
€ 29.50
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
920491228
€ 7.00
