FRAME FITTINGS
KLX650A1 1993 USA CALIFORNIA CANADA

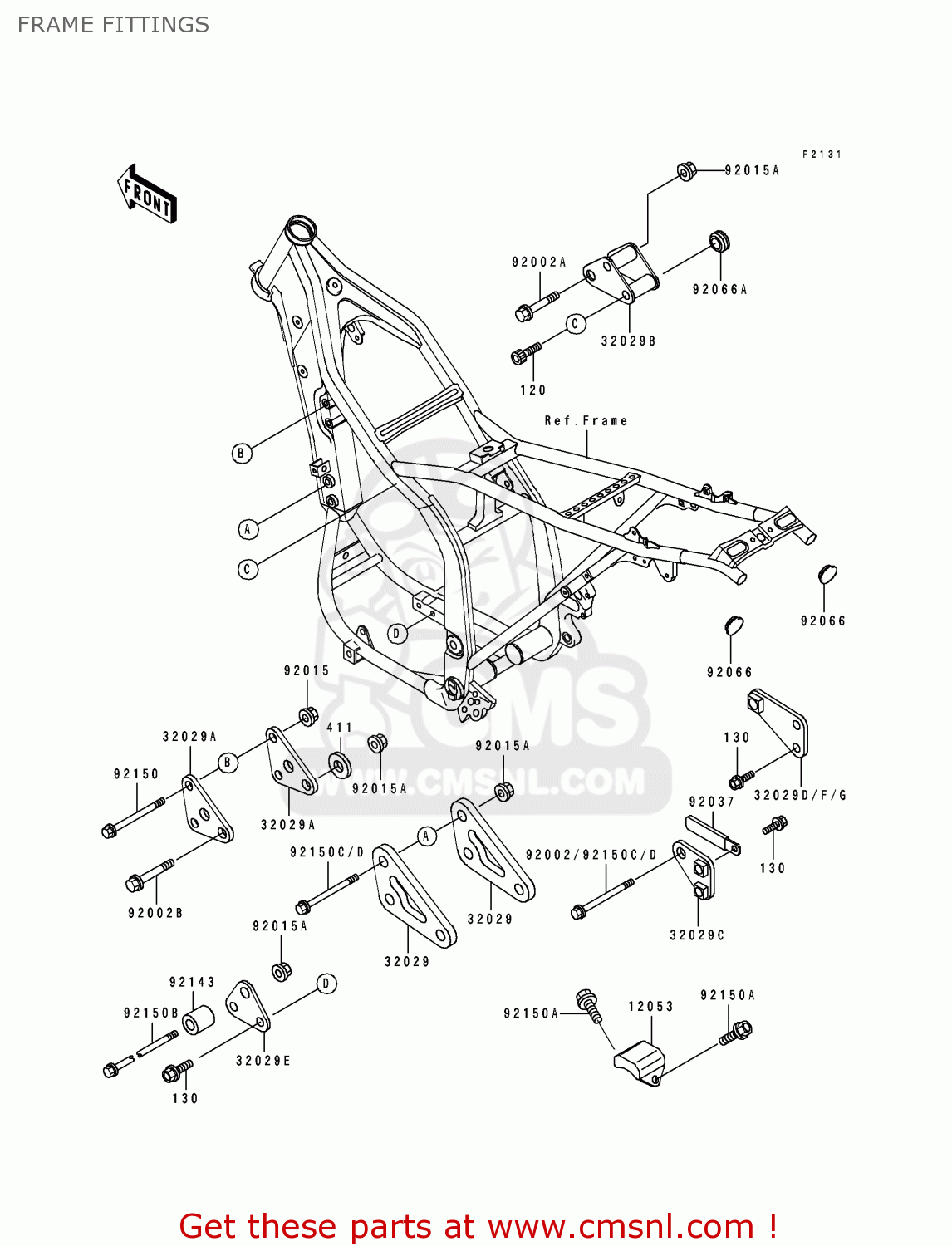

Frame fittings diagram KLX650A1 1993 USA CALIFORNIA CANADA
FRAME FITTINGS KLX650A1 1993 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0855
ref: 120
BOLT-SOCKET,8X55
€ 3.00
130
130G0816
ref: 130
BOLT-FLANGED,8X16
€ 0.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
12053
120531310
ref: 12053
GUIDE-CHAIN
€ 17.00
32029
320291840
ref: 32029
BRACKET-ENGINE,FR,LWR
€ 23.50
32029A
320291858
ref: 32029A
BRACKET-ENGINE,FR,UPP
€ 8.50
32029B
320291859TY
ref: 32029B
BRACKET-ENGINE,RR,UPP
€ 14.00
32029C
320291882TY
ref: 32029C
BRACKET-ENGINE,RR,LWR
€ 9.50
32029D
320291883TY
ref: 32029D
BRACKET-ENGINE,RR,LWR
€ 10.00
32029E
320291884TY
ref: 32029E
BRACKET-ENGINE,LWR,VI
€ 9.50
32029G
320291899TY
ref: 32029G
BRACKET-ENGINE,RR,LWR
€ 9.50
92002
920021674
ref: 92002
BOLT,10X90
€ 12.50
92002A
920021740
ref: 92002A
BOLT,FLANGED,10X46
€ 4.00
92002B
920021936
ref: 92002B
BOLT
€ 5.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92037
920371636
ref: 92037
CLAMP,HARNESS,L=100
€ 5.50
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
92066A
920661115
ref: 92066A
PLUG
€ 3.50
92143
921431618
ref: 92143
COLLAR,10.5X20X16.2
€ 5.50
92150
921501214
ref: 92150
BOLT,FLANGED,8X50
€ 4.00
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501686
ref: 92150B
BOLT,FLANGED,10X150
€ 11.00
92150D
921501722
ref: 92150D
BOLT,FLANGED,10X95
€ 9.50
