TRANSMISSION
KLX400A2 2004 USA CALIFORNIA CANADA

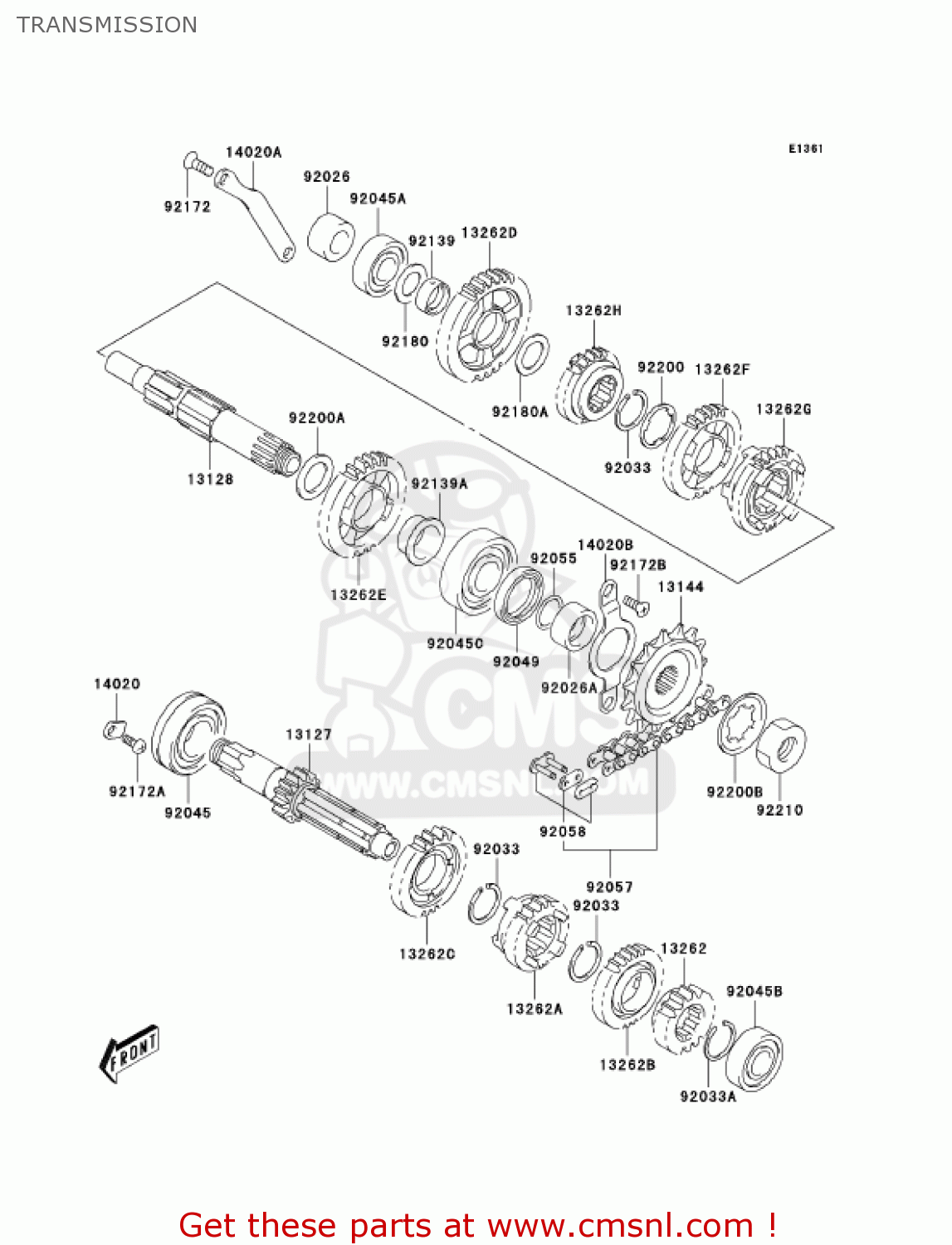

Transmission diagram KLX400A2 2004 USA CALIFORNIA CANADA
TRANSMISSION KLX400A2 2004 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
13127S008
ref: 13127
SHAFT-TRANSMISSION IN
€ 103.00
13128
13128S010
ref: 13128
SHAFT-TRANSMISSION OU
€ 104.50
13144
13144S008
ref: 13144
SPROCKET-OUTPUT,15T
€ 34.00
13262
13262S024
ref: 13262
GEAR,INPUT 2ND,15T
€ 49.00
13262A
13262S025
ref: 13262A
GEAR,INPUT 3RD,16T
€ 58.50
13262B
13262S026
ref: 13262B
GEAR,INPUT 4TH,22T
€ 49.00
13262C
13262S027
ref: 13262C
GEAR,INPUT 5TH,22T
€ 49.00
13262D
13262S028
ref: 13262D
GEAR,OUTPUT LOW,32T
€ 51.00
13262E
13262S029
ref: 13262E
GEAR,OUTPUT 2ND,26T
€ 51.00
13262F
13262S030
ref: 13262F
GEAR,OUTPUT 3RD,22T
€ 54.00
13262G
13262S031
ref: 13262G
GEAR,OUTPUT 4TH,24T
€ 58.50
13262H
13262S032
ref: 13262H
GEAR,OUTPUT 5TH,19T
€ 51.00
14020
14020S008
ref: 14020
RETAINER
€ 2.50
14020A
14020S011
ref: 14020A
RETAINER,KICK
€ 6.50
14020B
14020S012
ref: 14020B
RETAINER,DRIVE SHAFT
€ 4.50
92026
92026S124
ref: 92026
SPACER
€ 3.50
92026A
92026S125
ref: 92026A
SPACER
€ 15.00
92033
92033S049
ref: 92033
RING-SNAP
€ 2.00
92033A
92033S050
ref: 92033A
RING-SNAP
€ 2.50
92045
92045S018
ref: 92045
BEARING-BALL,25X52X15
€ 15.50
92045A
92045S035
ref: 92045A
BEARING-BALL,17X40X12
€ 17.00
92045B
92045S051
ref: 92045B
BEARING-BALL
€ 28.50
92045C
92045S057
ref: 92045C
BEARING-BALL
€ 31.00
92049
92049S019
ref: 92049
SEAL-OIL,30X40X6
€ 11.00
92055
92055S034
ref: 92055
RING-O,D:2.5
€ 1.50
92057
92057S013
ref: 92057
CHAIN,DRIVE(112L)
€ 105.00
92058
92058S004
ref: 92058
JOINT-CHAIN
€ 14.00
92139
92139S032
ref: 92139
BUSHING
€ 11.50
92139A
92139S033
ref: 92139A
BUSHING
€ 18.50
92172
92172S012
ref: 92172
SCREW
€ 1.50
92172A
92172S170
ref: 92172A
SCREW
€ 3.00
92172B
92172S171
ref: 92172B
SCREW,RETAINER
€ 2.00
92180
92180S014
ref: 92180
SHIM,2ND GEAR
€ 3.00
92180A
92180S015
ref: 92180A
SHIM,1ST GEAR
€ 3.00
92200
92200S145
ref: 92200
WASHER,4TH GEAR
€ 4.00
92200A
92200S187
ref: 92200A
WASHER
€ 3.00
92200B
92200S188
ref: 92200B
WASHER
€ 1.00
92210
92210S126
ref: 92210
NUT
€ 3.00
