ENGINE COVER(S)
KLX400A2 2004 USA CALIFORNIA CANADA

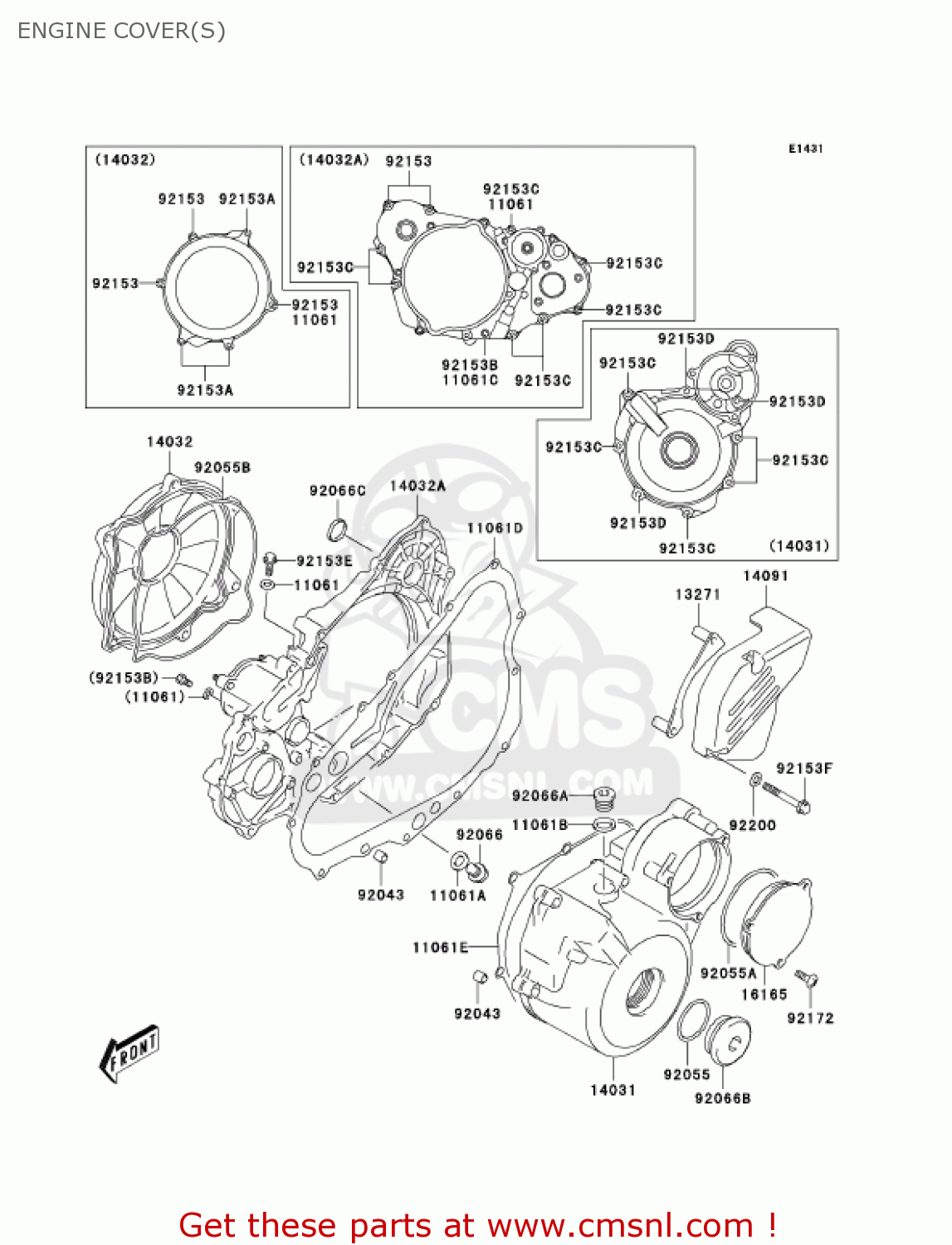

Engine cover(s) diagram KLX400A2 2004 USA CALIFORNIA CANADA
ENGINE COVER(S) KLX400A2 2004 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
11061S001
ref: 11061
GASKET,5.8X13X1.2 (NAS)
€ 2.50
11061A
11061S005
ref: 11061A
GASKET,12.1X16.2X3.7 (NAS)
€ 1.50
11061B
11061S006
ref: 11061B
GASKET,13.8X18.8X0.4 (NAS)
€ 1.50
11061C
11061S045
ref: 11061C
GASKET,OIL HOSE (NAS)
€ 2.00
11061D
11061S083
ref: 11061D
GASKET,CLUTCH COVER (NAS)
€ 21.00
11061E
11061S085
ref: 11061E
GASKET,MAGNETO COVER (NAS)
€ 8.00
13271
13271S061
ref: 13271
PLATE,CHAIN GUIDE
€ 9.00
14031
14031S008
ref: 14031
COVER-GENERATOR
€ 276.00
14032
14032S008
ref: 14032
COVER-CLUTCH,OUTER
€ 76.50
14032A
14032S010
ref: 14032A
COVER, CLUTCH, INNER
€ 142.00
14091
14091S103
ref: 14091
COVER,ENGINE SPROCKET
€ 34.50
16165
16165S010
ref: 16165
SEPARATOR,STARTER IDL
€ 44.50
92043
92043S001
ref: 92043
PIN
€ 2.00
92055
92055S056
ref: 92055
RING-O,32.7X3.1
€ 3.00
92055A
92055S057
ref: 92055A
RING-O,69.6X2.6
€ 19.00
92055B
92055S080
ref: 92055B
RING-O,CLUTCH COVER O
€ 14.00
92066
92066S001
ref: 92066
PLUG
€ 3.50
92066A
92066S003
ref: 92066A
PLUG
€ 3.50
92066B
92066S033515A
ref: 92066B
PLUG,W.SILVER
€ 8.00
92066C
92066S038
ref: 92066C
PLUG
€ 4.50
92153
92153S002
ref: 92153
BOLT
€ 1.50
92153A
92153S006
ref: 92153A
BOLT
€ 1.50
92153B
92153S010
ref: 92153B
BOLT
€ 32.50
92153C
92153S062
ref: 92153C
BOLT
€ 1.50
92153D
92153S128
ref: 92153D
BOLT
€ 1.50
92153E
92153S144
ref: 92153E
BOLT
€ 1.50
92153F
92153S335
ref: 92153F
BOLT
€ 1.50
92172
92172S055
ref: 92172
SCREW
€ 1.50
92200
92200S132
ref: 92200
WASHER,SPROCKET COVER
€ 1.50
