CARBURETOR

KLX300A6 KLX300R 2001 USA CALIFORNIA CANADA

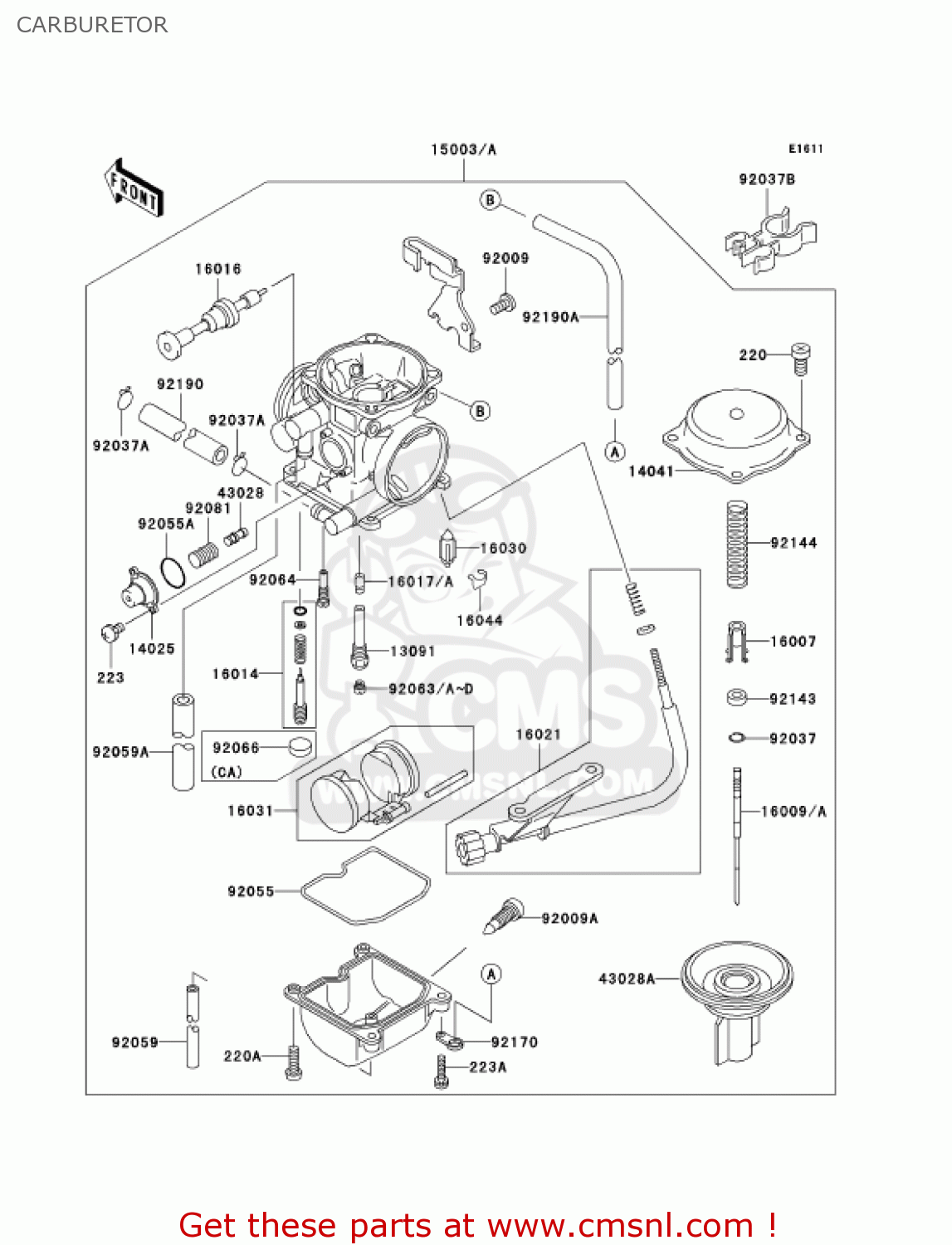

Carburetor diagram KLX300A6 KLX300R 2001 USA CALIFORNIA CANADA

CARBURETOR KLX300A6 KLX300R 2001 USA CALIFORNIA CANADA
CARBURETOR KLX300A6 KLX300R 2001 USA CALIFORNIA CANADA
CARBURETOR KLX300A6 KLX300R 2001 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911985
ref: 13091
HOLDER,NEEDLE JET
130911985
€ 20.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
15003
150031260
ref: 15003
[CN,US
CARBURETOR-ASSY
€ 457.50
15003A
150031374
ref: 15003A
[CA]
CARBURETOR ASSEMBLY
€ 336.00
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091912
ref: 16009
[CN,US
NEEDLE-JET,N1TC
160091912
€ 24.50
16009A
160091996
ref: 16009A
[CA]
JET,NEEDLE,#N5AF
€ 21.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161068
ref: 16016
PLUNGER,STARTER
160161068
€ 35.00
16017
160171368
ref: 16017
[CN,US
JET-NEEDLE
160171368
€ 30.00
16017A
160171396
ref: 16017A
[CA]
JET,NEEDLE
€ 24.50
16021
160211182
ref: 16021
SCREW-THROTTLE STOP
€ 79.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
43028A
430281081
ref: 43028A
DIAPHRAGM,VALVE
430281081
€ 150.00
92009
920091365
ref: 92009
SCREW
920091365
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92037
920371401
ref: 92037
[CN,US
CLAMP,JET NEEDLE
920371401
€ 2.50
92037A
920371531
ref: 92037A
CLAMP,TUBE
920371531
€ 3.50
92037B
920371886
ref: 92037B
CLAMP
€ 4.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92055A
920551245
ref: 92055A
RING-O
920551245
€ 3.50
92059
920591110
ref: 92059
TUBE,3.5X6.5X330
€ 15.50
92059A
920591237
ref: 92059A
TUBE,L=350
920591237
€ 16.00
92063
920631069
ref: 92063
(OFF ROAD USE ONLY)
MAIN JET,2ND #125
920631069
€ 9.50
92063A
920631073
ref: 92063A
(OFF ROAD USE ONLY)
MAIN JET,2ND #122
920631073
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
920631074
€ 9.50
92063C
920631075
ref: 92063C
(OFF ROAD USE ONLY)
MAIN JET,2ND #130
920631075
€ 9.50
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
223C0416
€ 2.50
92063D
920631076
ref: 92063D
(OFF ROAD USE ONLY)
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
[CA]
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811719
ref: 92081
SPRING,AIR CUT VALVE
920811719
€ 8.50
92143
921431667
ref: 92143
[CN,US
COLLAR
921431667
€ 3.50
92144
921441538
ref: 92144
SPRING,VACUUM VALVE
921441538
€ 15.50
92170
921701496
ref: 92170
CLAMP,TUBE
€ 9.50
92190
921901474
ref: 92190
TUBE,6.5X11.5X100
921901474
€ 22.00
92190A
921901560
ref: 92190A
TUBE,5X8X430
921901560
€ 15.00
