LABELS

KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA

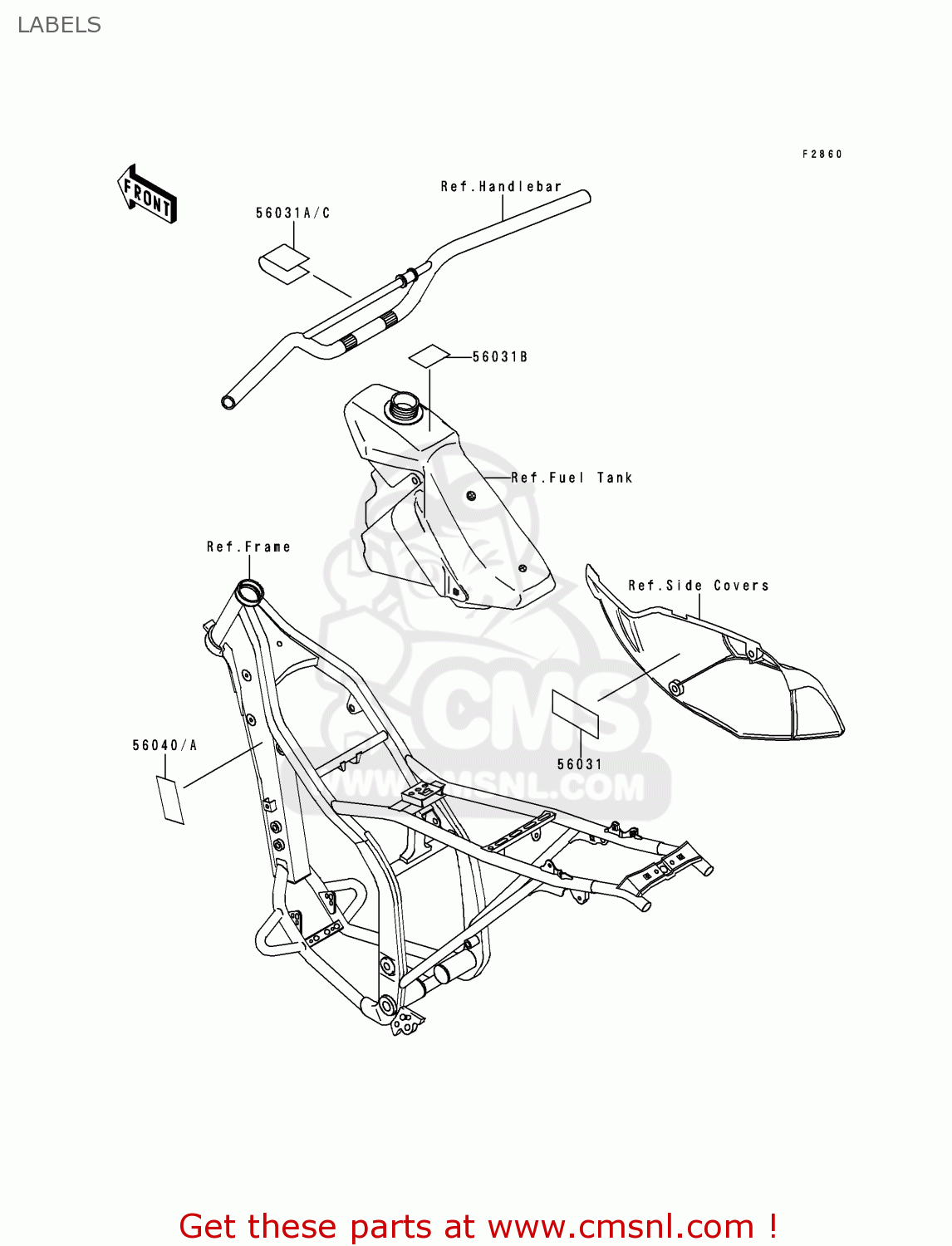

Labels diagram KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

56031

560311910
ref: 56031

LABEL-MANUAL,OIL&OIL

€ 3.50

56031A

560311917
ref: 56031A
CAUS

LABEL-MANUAL,ENGINE S

€ 3.50

56031B

560311919
ref: 56031B

LABEL-MANUAL,ENGINE S

€ 3.00

56031C

560311925
ref: 56031C
CN

LABEL-MANUAL,ENGINE S

€ 7.00

56040

560401018
ref: 56040
CAUS

LABEL-WARNING,OFF-ROA

€ 3.00

56040A

560401304
ref: 56040A
CN

LABEL-WARNING,OFF-ROA

€ 4.00
