BRAKE PEDAL

KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA

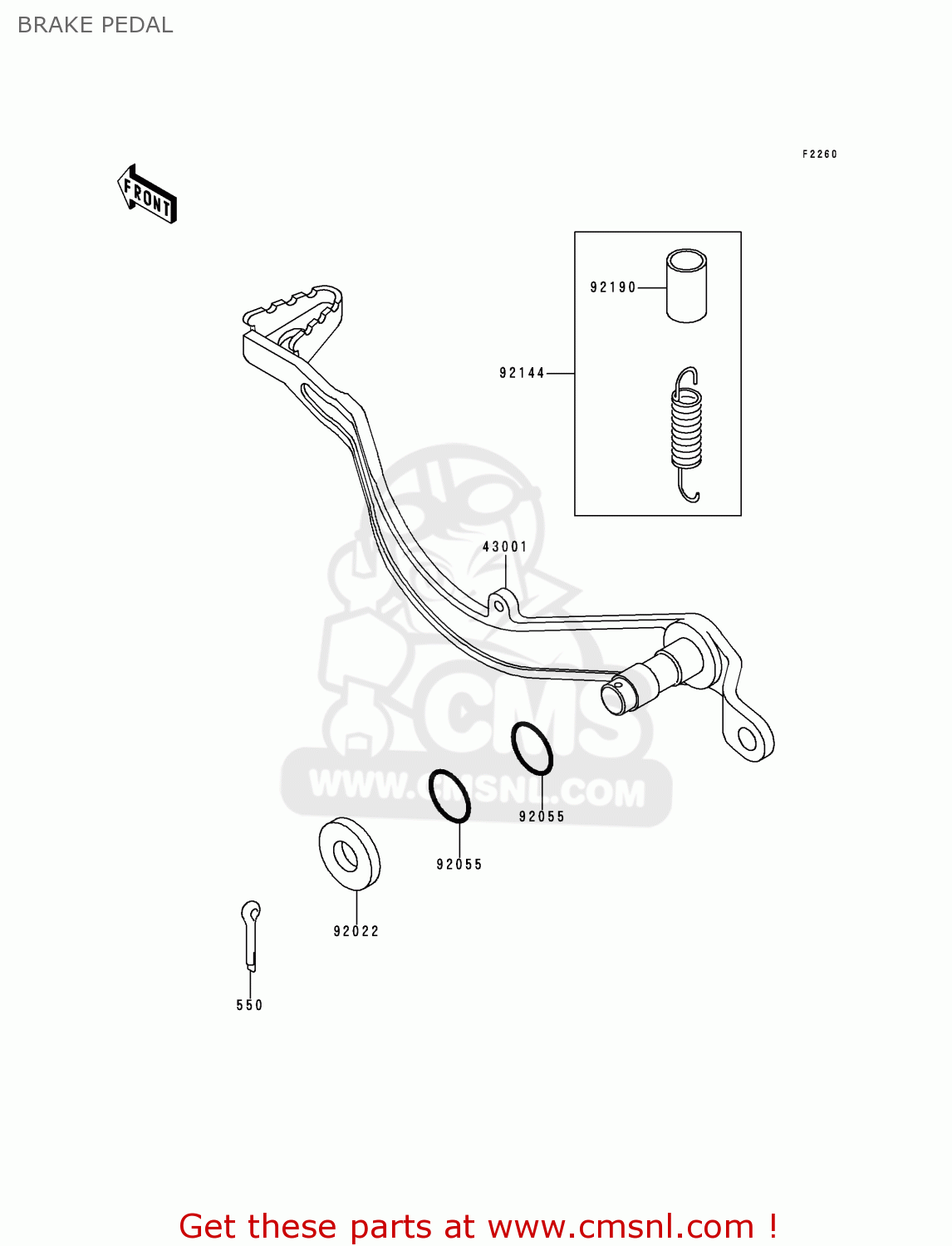

Brake pedal diagram KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA

BRAKE PEDAL KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA
BRAKE PEDAL KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA
BRAKE PEDAL KLX300A3 KLX300R 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D2525
ref: 550
PIN-COTTER,2.5X25
€ 1.00
43001
430011331
ref: 43001
LEVER-BRAKE,PEDAL
430011331
€ 53.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92055
920551148
ref: 92055
RING-O,OD=18.5MM
920551148
€ 9.50
92144
921441752
ref: 92144
SPRING,BRAKE PEDAL RE
921441752
€ 4.50
92190
921901488
ref: 92190
TUBE,13X16X25
921901488
€ 2.00
