GEAR CHANGE DRUM/SHIFT FORK(S)

KLX300A3 KLX300R 1998 EUROPE FR

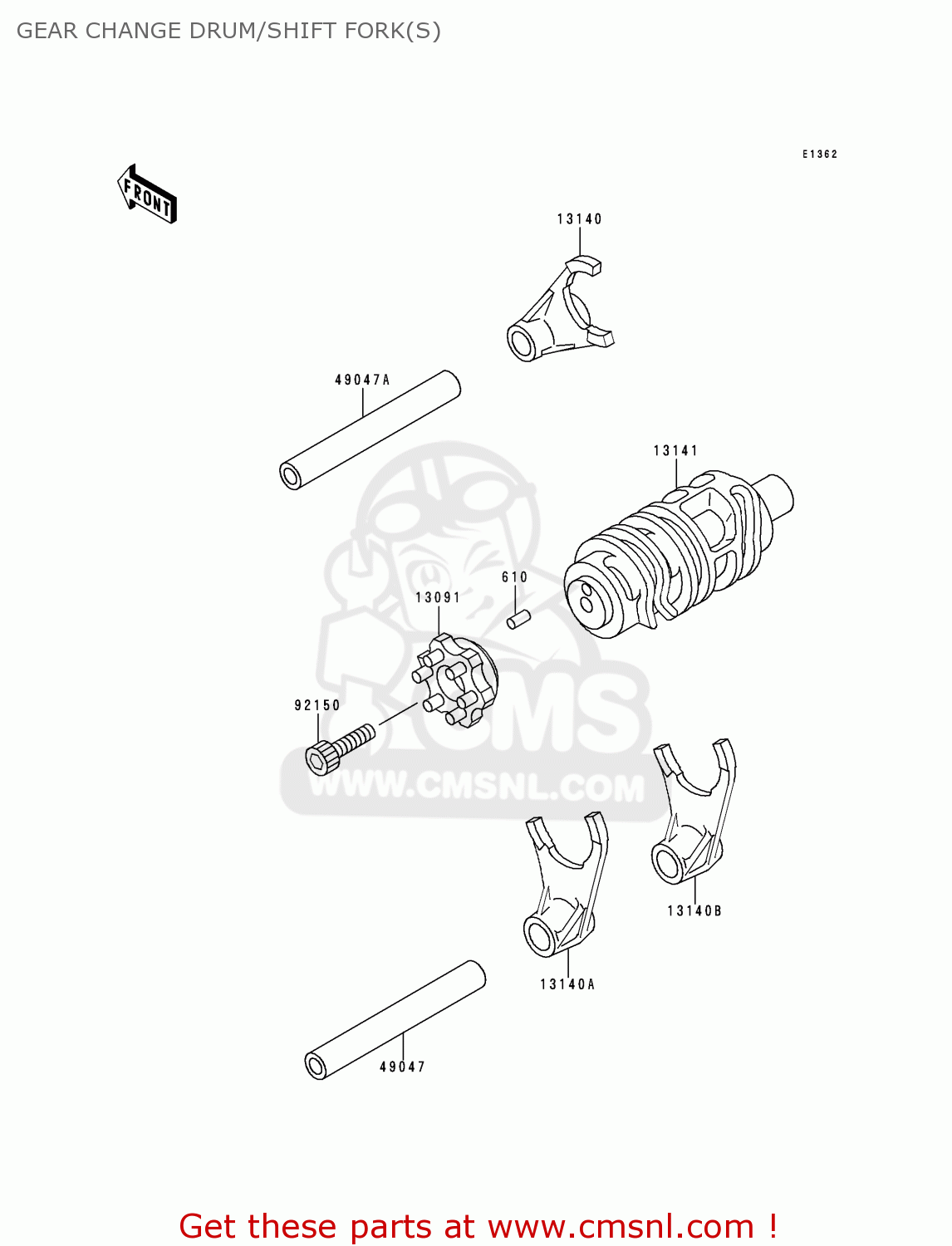

Gear change drum/shift fork(s) diagram KLX300A3 KLX300R 1998 EUROPE FR

prices are in EUR

ref

part #

description

quantity

610

610A0408
ref: 610

ROLLER,4X8

€ 2.50

13091

130911722
ref: 13091

HOLDER,CHANGE DRUM

€ 41.00

13140

131401216
ref: 13140

FORK-SHIFT,5TH&TOP

€ 65.50

13140A

131401217
ref: 13140A

FORK-SHIFT,2ND&3RD

€ 65.50

13140B

131401218
ref: 13140B

FORK-SHIFT,LOW&4TH

€ 65.50

13141

131411198
ref: 13141

DRUM-CHANGE

€ 95.50

49047

490471056
ref: 49047

ROD-SHIFT,L=106.7

€ 16.00

49047A

490471057
ref: 49047A

ROD-SHIFT,L=71.7

€ 12.00

92150

921501645
ref: 92150

BOLT

€ 2.00

all assemblies
