CARBURETOR
KLX300A3 KLX300R 1998 EUROPE FR

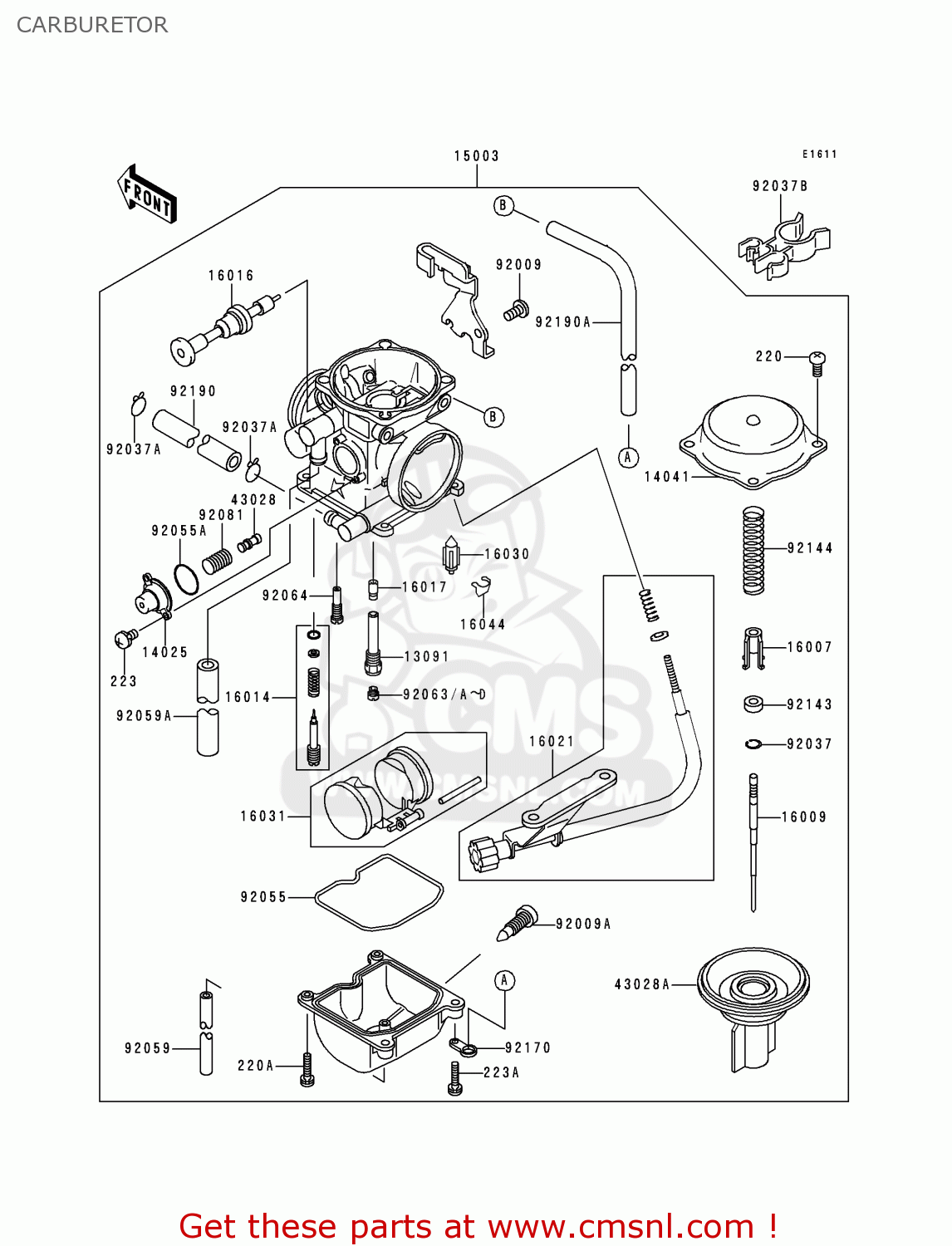

Carburetor diagram KLX300A3 KLX300R 1998 EUROPE FR
CARBURETOR KLX300A3 KLX300R 1998 EUROPE FR
×
prices are in EUR
ref
part #
description
quantity
13091
130911985
ref: 13091
HOLDER,NEEDLE JET
€ 20.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
14041
140411061
ref: 14041
COVER-COMP,MIXING CHA
€ 47.50
15003
150031260
ref: 15003
CARBURETOR-ASSY
€ 457.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091912
ref: 16009
NEEDLE-JET,N1TC
€ 24.50
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161068
ref: 16016
PLUNGER,STARTER
€ 35.00
16017
160171368
ref: 16017
JET-NEEDLE
€ 30.00
16021
160211182
ref: 16021
SCREW-THROTTLE STOP
€ 79.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
43028A
430281081
ref: 43028A
DIAPHRAGM,VALVE
€ 150.00
92009
920091365
ref: 92009
SCREW
€ 4.50
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92037
920371401
ref: 92037
CLAMP,JET NEEDLE
€ 2.50
92037A
920371531
ref: 92037A
CLAMP,TUBE
€ 3.50
92037B
920371886
ref: 92037B
CLAMP
€ 4.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92055A
920551245
ref: 92055A
RING-O
€ 3.50
92059
920591110
ref: 92059
TUBE,3.5X6.5X330
€ 15.50
92059A
920591237
ref: 92059A
TUBE,L=350
€ 16.00
92063
920631069
ref: 92063
MAIN JET,2ND #125
€ 9.50
92063A
920631073
ref: 92063A
MAIN JET,2ND #122
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811719
ref: 92081
SPRING,AIR CUT VALVE
€ 8.50
92143
921431667
ref: 92143
COLLAR
€ 3.50
92144
921441538
ref: 92144
SPRING,VACUUM VALVE
€ 15.50
92170
921701496
ref: 92170
CLAMP,TUBE
€ 9.50
92190
921901474
ref: 92190
TUBE,6.5X11.5X100
€ 22.00
92190A
921901560
ref: 92190A
TUBE,5X8X430
€ 15.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
223
223C0408
ref: 223
SCREW-PAN-WS-CROS
€ 1.00
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
