TAILLIGHT(S)

KLX300A10 KLX300R 2005 USA CALIFORNIA CANADA

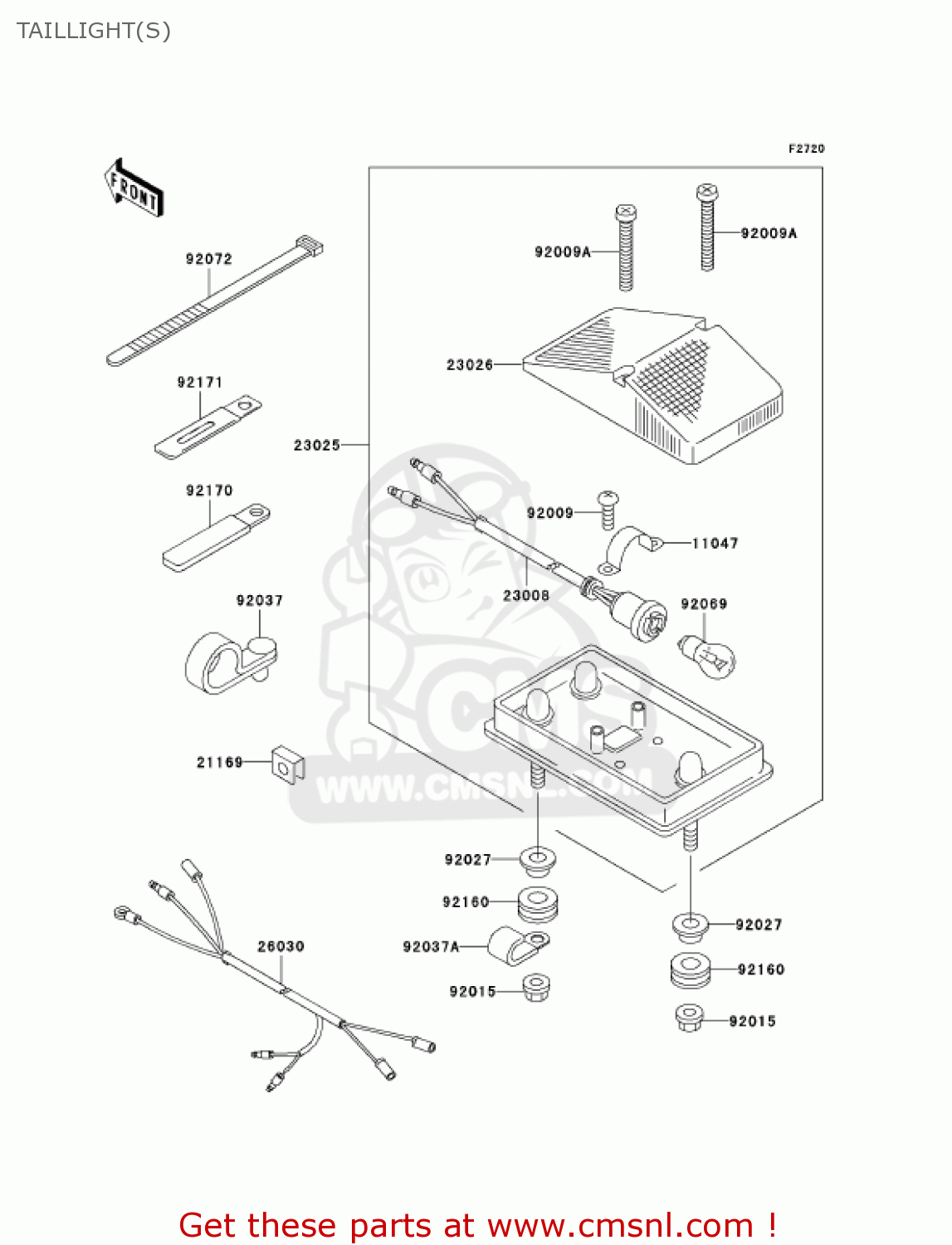

Taillight(s) diagram KLX300A10 KLX300R 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11047

110471238
ref: 11047

BRACKET,TAIL LAMP

€ 3.50

21169

211691066
ref: 21169

TERMINAL

€ 3.00

23008

230081462
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 25.50

23025

230251215
ref: 23025

LAMP-TAIL

€ 90.50

23026

230261131
ref: 23026

LENS,TAIL LAMP

€ 23.00

26030

260301165
ref: 26030

HARNESS,MAIN

€ 114.50

92009

920091021
ref: 92009

SCREW,TAPPING,4X10

€ 2.50

92009A

920091647
ref: 92009A

SCREW,TAPPING,4X30

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92027

920271920
ref: 92027

COLLAR

€ 4.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371877
ref: 92037A

CLAMP

€ 3.00

92069

920691072
ref: 92069

BULB,12V 10W

€ 3.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92160

921601167
ref: 92160

DAMPER,10X20X12

€ 3.00

92170

921701114
ref: 92170

CLAMP

€ 5.00

92171

921711425
ref: 92171

CLAMP,WIRING HARNESS,

€ 1.50
