FRONT HUB

KLX300A10 KLX300R 2005 USA CALIFORNIA CANADA

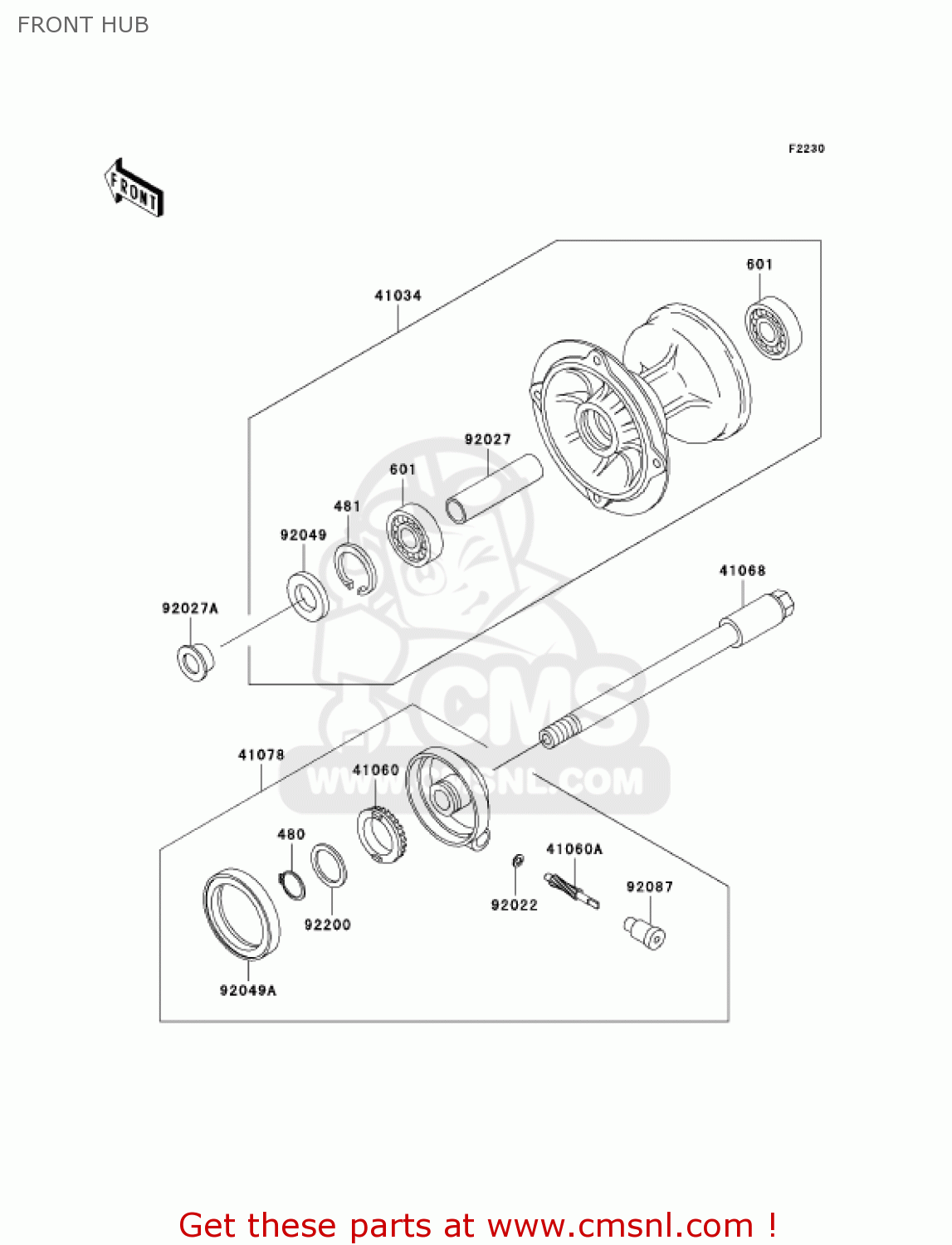

Front hub diagram KLX300A10 KLX300R 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

480

480J2400
ref: 480

CIRCLIP-TYPE-C,24MM

€ 3.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6202UG
ref: 601

BEARING BALL

€ 19.50

41034

410341219
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 428.50

41060

410601143
ref: 41060

GEAR-METER SCREW,25T

€ 28.50

41060A

410601144
ref: 41060A

GEAR-METER SCREW,8T

€ 14.50

41068

410680013
ref: 41068

AXLE,FR

€ 83.50

41078

410781095
ref: 41078

CASE-ASSY-METER GEAR

€ 107.00

92022

920221511
ref: 92022

WASHER,5X9.5X0.8

€ 2.50

92027

920271958
ref: 92027

COLLAR,15.2X19X75

€ 30.00

92027A

920271959
ref: 92027A

COLLAR,L=12

€ 10.50

92049

920491176
ref: 92049

SEAL-OIL,MH20354.5

€ 10.00

92049A

920491399
ref: 92049A

SEAL-OIL,SDD 50 62 7

€ 13.00

92087

920871060
ref: 92087

BUSHING-METER GEAR

€ 12.50

92200

922001137
ref: 92200

WASHER,24X31X0.8

€ 2.50
