REAR HUB
KLX250D3 KLXR 1995 USA CANADA

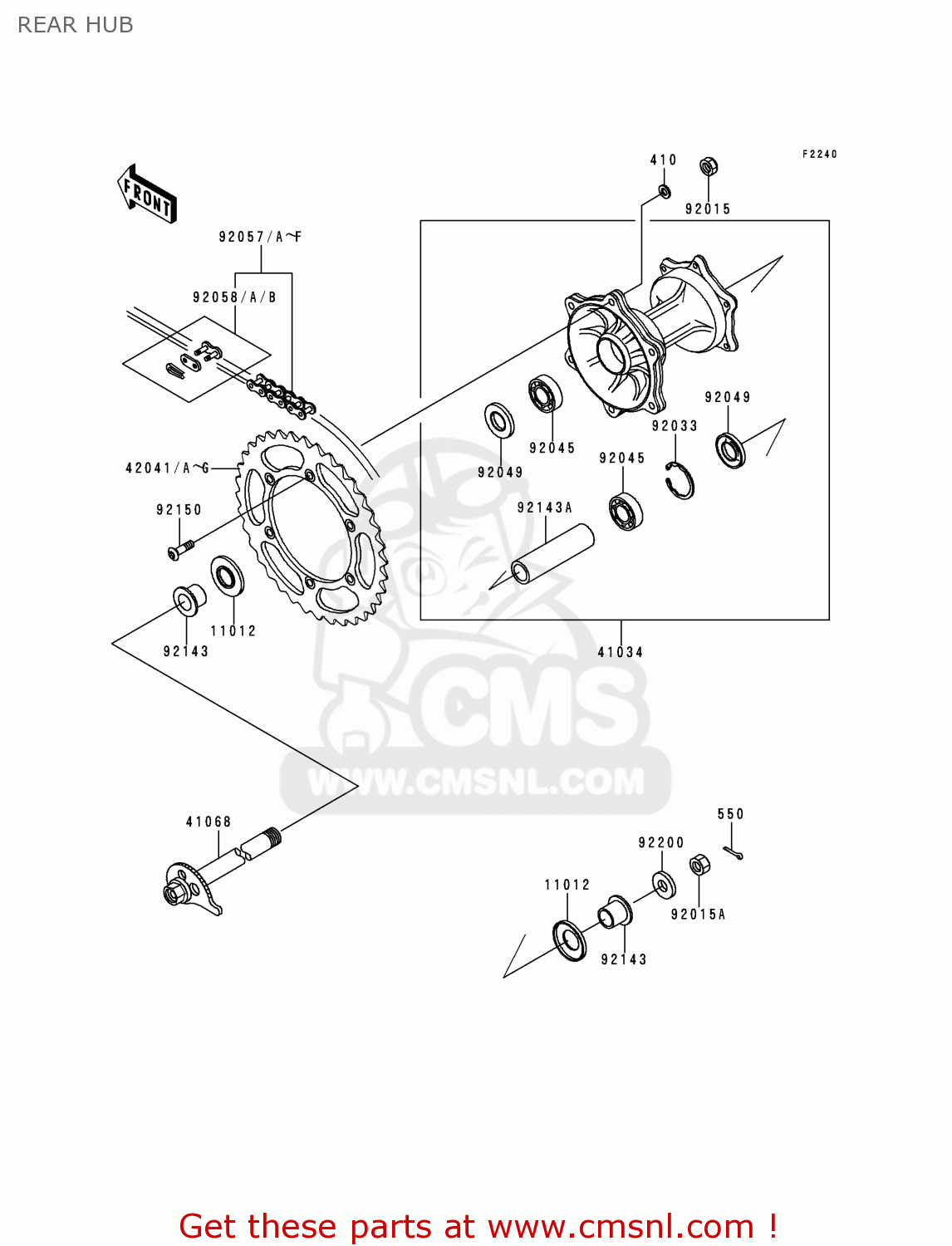

Rear hub diagram KLX250D3 KLXR 1995 USA CANADA
REAR HUB KLX250D3 KLXR 1995 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
€ 4.00
41034
410341216
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 424.50
41068
410681340
ref: 41068
AXLE,RR
€ 95.00
42041
420411381
ref: 42041
SPROCKET-HUB,46T
€ 38.50
42041A
420411382
ref: 42041A
SPROCKET-HUB,47T
€ 38.50
42041B
420411383
ref: 42041B
SPROCKET, HUB, 48T
€ 38.50
42041C
420411384
ref: 42041C
SPROCKET-HUB,49T
€ 38.50
42041D
420411408
ref: 42041D
SPROCKET-HUB,50T
€ 37.00
42041E
420411413
ref: 42041E
SPROCKET-HUB,45T
€ 38.50
42041F
420411428
ref: 42041F
SPROCKET-HUB,51T
€ 37.00
42041G
420411429
ref: 42041G
SPROCKET-HUB,52T
€ 50.50
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151770
ref: 92015A
NUT,LOCK,20MM
€ 19.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
€ 30.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571244
ref: 92057
CHAIN,DRIVE,DID520DS6
€ 51.00
92057B
920571376
ref: 92057B
CHAIN,DRIVE,DID520DS6
€ 96.00
92057C
920571377
ref: 92057C
CHAIN,DRIVE,EK520LV-O
€ 77.00
92057D
920571378
ref: 92057D
CHAIN,DRIVE,EK520LV-O
€ 77.00
92057E
920571379
ref: 92057E
CHAIN,DRIVE,EK520LV-O
€ 77.00
92057F
920571388
ref: 92057F
CHAIN,DRIVE
€ 68.50
92058
920581057
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92058A
920581070
ref: 92058A
JOINT-CHAIN
€ 6.50
92058B
920581071
ref: 92058B
JOINT-CHAIN,DRIVE,DID
€ 6.50
92143
921431259
ref: 92143
COLLAR,RR AXLE,L=22
€ 26.00
92143A
921431402
ref: 92143A
COLLAR,RR BRAKE DRUM,
€ 10.50
92150
921501196
ref: 92150
BOLT,SOCKET,8X28
€ 5.50
92200
922001146
ref: 92200
WASHER,20.2X36X2
€ 3.00
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
