ENGINE COVER(S)
KLX250D3 KLXR 1995 USA CANADA

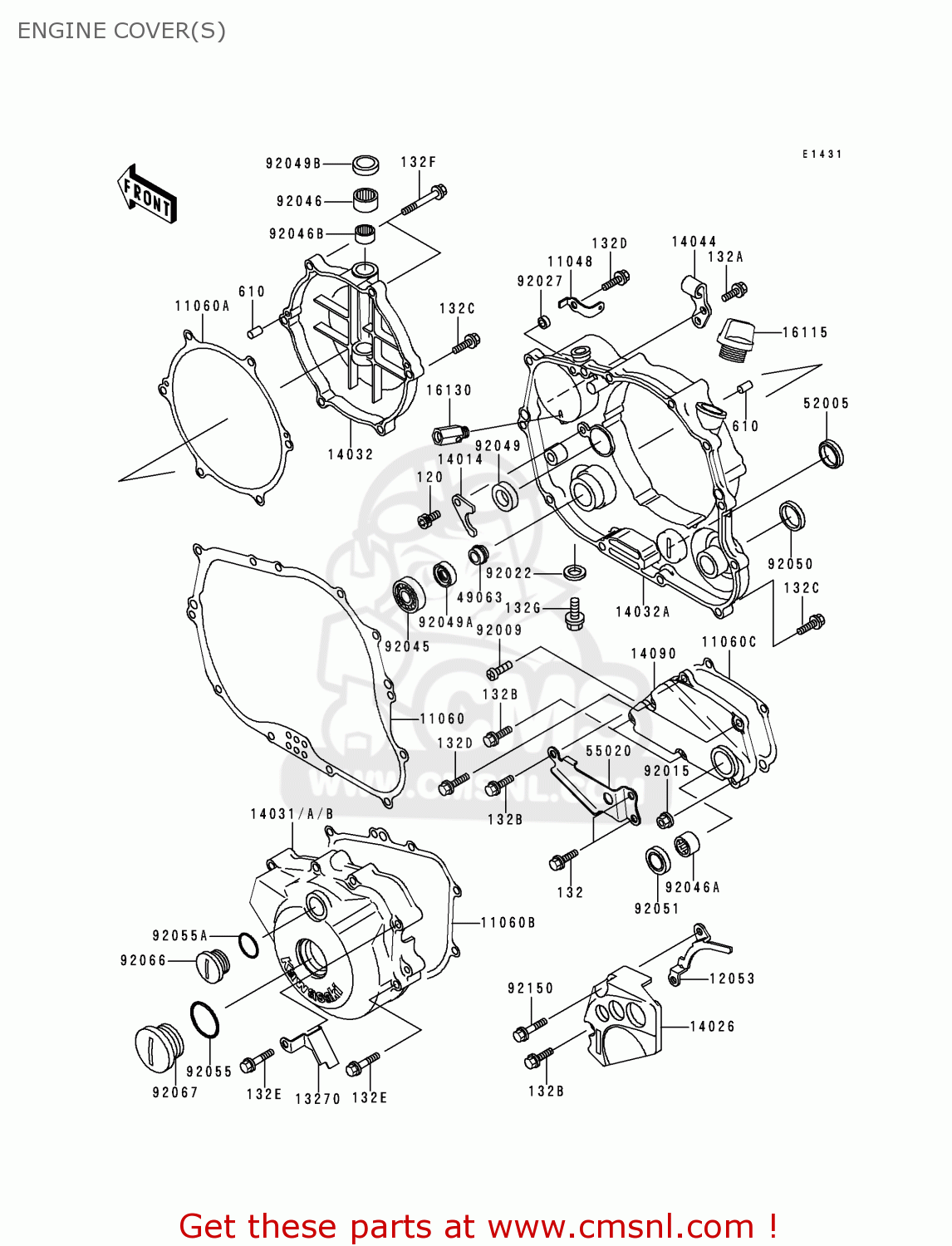

Engine cover(s) diagram KLX250D3 KLXR 1995 USA CANADA
ENGINE COVER(S) KLX250D3 KLXR 1995 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0610
ref: 120
BOLT-SOCKET,6X10
€ 1.00
11048
110481300
ref: 11048
BRACKET
€ 6.00
11060
110601324
ref: 11060
GASKET,CLUTCH COVER I (NAS)
€ 28.50
11060A
110601325
ref: 11060A
GASKET,CLUTCH COVER O (NAS)
€ 10.50
11060B
110601326
ref: 11060B
GASKET,GENERATOR COVE (NAS)
€ 13.50
11060C
110601327
ref: 11060C
GASKET,TRANSMISSION C (NAS)
€ 9.00
12053
120531337
ref: 12053
GUIDE-CHAIN
€ 9.00
13270
132701146
ref: 13270
PLATE
€ 3.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14026
140261186
ref: 14026
COVER-CHAIN
€ 19.50
14031A
140311301
ref: 14031A
COVER-GENERATOR
€ 161.50
14032
140321335
ref: 14032
COVER-CLUTCH,OUTER
€ 76.50
14032A
140321359
ref: 14032A
COVER-CLUTCH,INNER
€ 261.00
14044
140441078
ref: 14044
HOLDER-CABLE
€ 5.00
14090
140901285
ref: 14090
COVER,TRANSMISSION
€ 66.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
55020
550201460
ref: 55020
GUARD,TRANSMISSION CO
€ 11.00
92009
920091726
ref: 92009
SCREW
€ 2.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221488
ref: 92022
WASHER,8.2X14X1
€ 3.00
92027
920271885
ref: 92027
COLLAR
€ 4.00
92045
920451246
ref: 92045
BEARING-BALL,6901
€ 29.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92046A
920461148
ref: 92046A
BEARING-NEEDLE,HK1312
€ 19.50
92046B
920461230
ref: 92046B
BEARING-NEEDLE
€ 15.50
92049
920491191
ref: 92049
SEAL-OIL
€ 16.00
92049A
920491228
ref: 92049A
SEAL-OIL,AC037AE0
€ 7.00
92049B
920491262
ref: 92049B
SEAL-OIL
€ 4.00
92050
92050078
ref: 92050
OIL SEAL
€ 5.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055091
ref: 92055
0 RING
€ 4.00
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920661397
ref: 92066
PLUG
€ 10.00
92067
92067024
ref: 92067
PLUG,RELEASE
€ 7.50
92150
921501137
ref: 92150
BOLT,6X35
€ 3.50
132
132Y0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132Y0616
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0620
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132Y0625
ref: 132C
BOLT-FLANGED-SMALL
€ 3.50
132D
132Y0630
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
132E
132Y0640
ref: 132E
BOLT-FLANGED-SMALL
€ 3.50
132F
132Y0670
ref: 132F
BOLT-FLANGED-SMALL
€ 3.00
132G
132Y0810
ref: 132G
BOLT-FLANGED-SMALL
€ 2.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
