FRAME
KLX125-B2 KLX125L 2004 USA CANADA

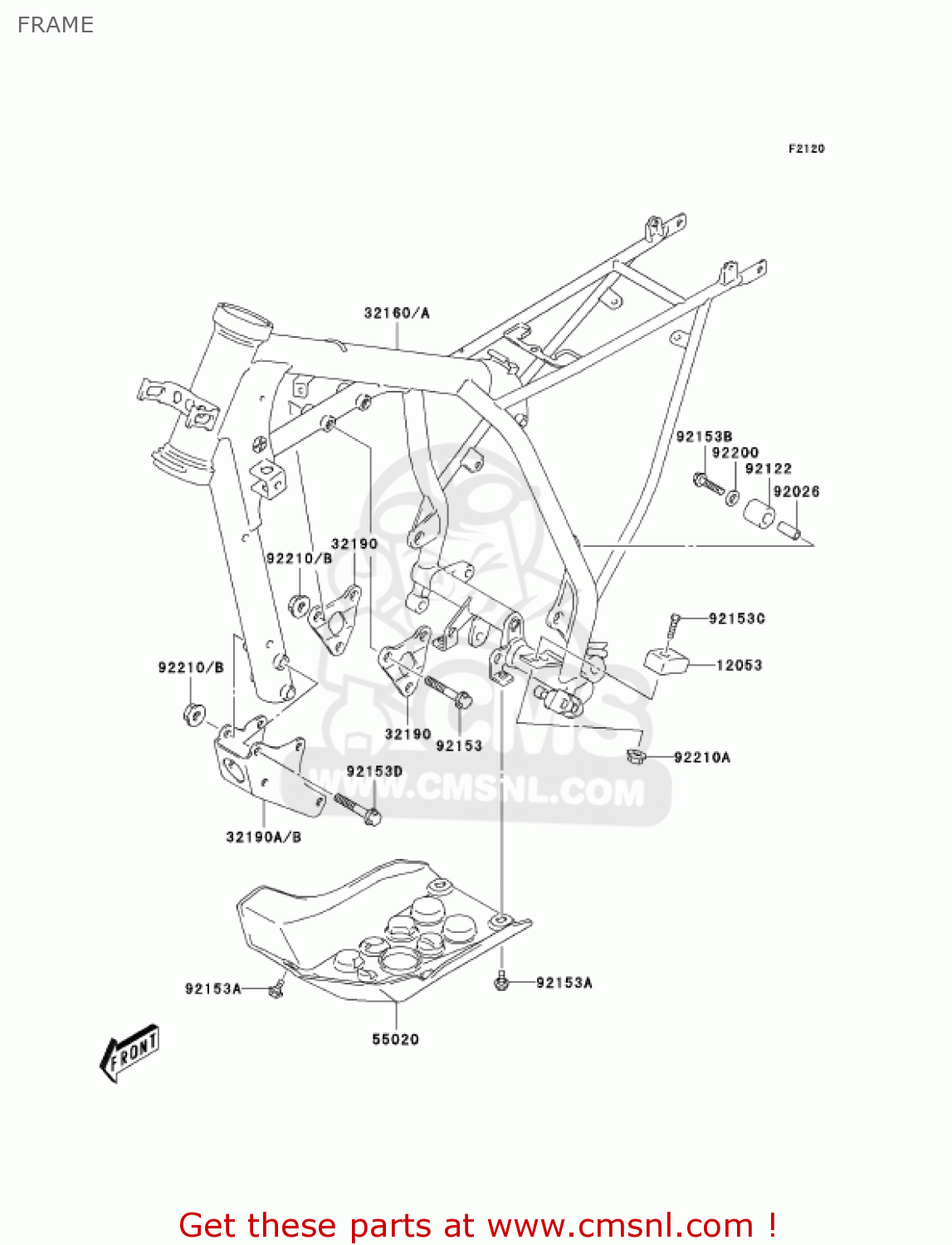

Frame diagram KLX125-B2 KLX125L 2004 USA CANADA
FRAME KLX125-B2 KLX125L 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
12053
12053S012
ref: 12053
GUIDE-CHAIN
€ 13.50
32160
32160S003548
ref: 32160
FRAME-COMP,M.G.GRAY
€ 713.50
32190
32190S003
ref: 32190
BRACKET-ENGINE
€ 6.00
32190A
32190S005548
ref: 32190A
BRACKET-ENGINE,M.G.GR
€ 25.00
55020
55020S004
ref: 55020
GUARD,ENGINE
€ 23.50
92026
92026S053
ref: 92026
SPACER
€ 2.50
92122
92122S006
ref: 92122
ROLLER
€ 13.50
92153
92153S151
ref: 92153
BOLT
€ 2.50
92153A
92153S161
ref: 92153A
BOLT
€ 1.00
92153B
92153S183
ref: 92153B
BOLT
€ 3.00
92153C
92153S184
ref: 92153C
BOLT
€ 1.50
92153D
92153S188
ref: 92153D
BOLT
€ 3.00
92200
92200S125
ref: 92200
WASHER
€ 1.50
92210A
92210S054
ref: 92210A
NUT
€ 2.50
92210B
92210S094
ref: 92210B
NUT
€ 2.50
