CRANKSHAFT/PISTON(S)
KLX125-B2 KLX125L 2004 USA CANADA

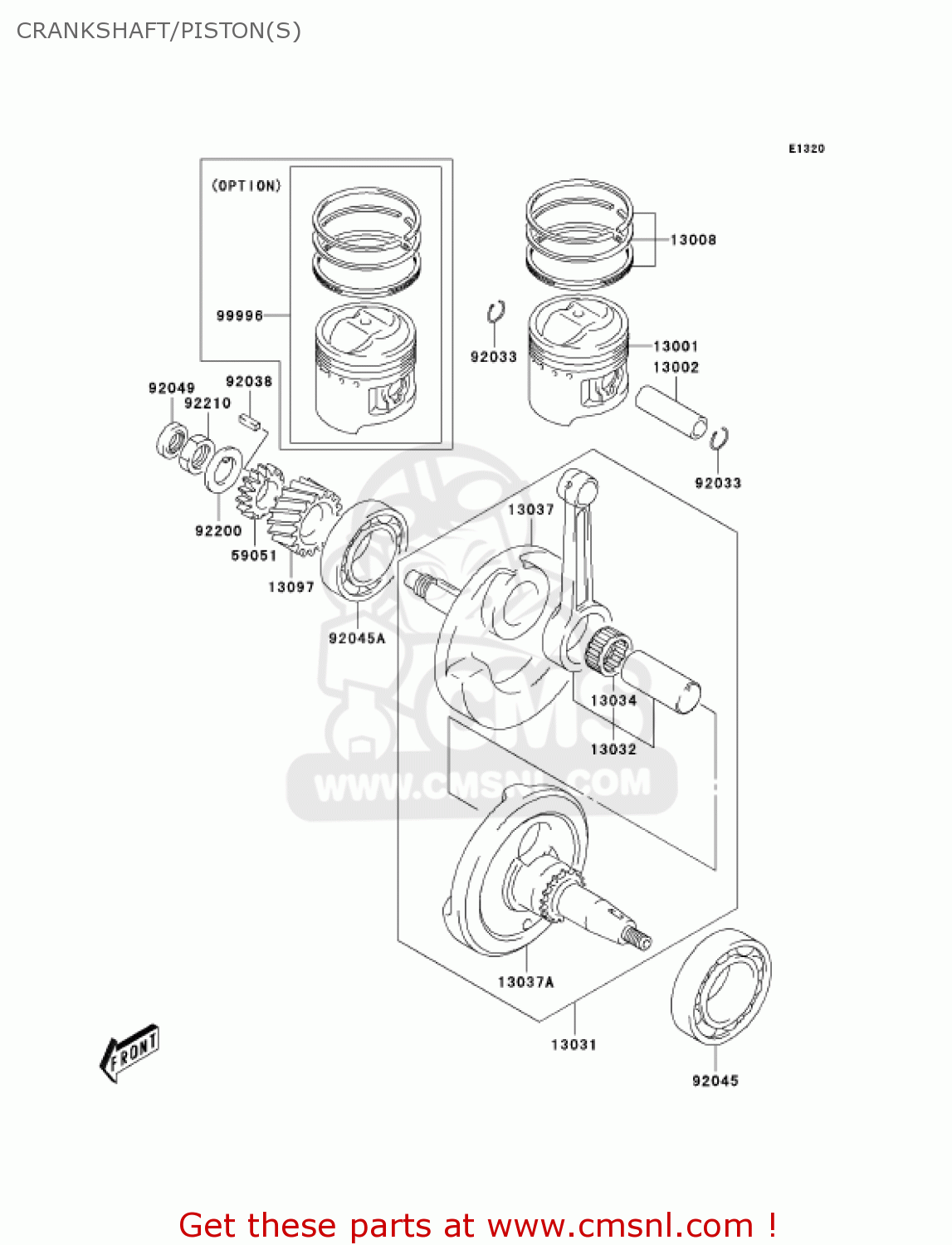

Crankshaft/piston(s) diagram KLX125-B2 KLX125L 2004 USA CANADA
CRANKSHAFT/PISTON(S) KLX125-B2 KLX125L 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
13001S003
ref: 13001
PISTON-ENGINE
€ 18.50
13002
13002S003
ref: 13002
PIN-PISTON,PISTON
€ 9.00
13008
13008S003
ref: 13008
RING-SET-PISTON
€ 21.00
13031
13031S003
ref: 13031
CRANKSHAFT-COMP
€ 243.50
13032
13032S003
ref: 13032
ROD-CONNECTING
€ 74.50
13034
13034S003
ref: 13034
BEARING-BIG END,28X36
€ 21.00
13037
13037S005
ref: 13037
CRANKSHAFT,RH
€ 92.00
13037
13037S006
ref: 13037
CRANKSHAFT,LH
€ 92.00
13097
13097S003
ref: 13097
GEAR-PRIMARY SPUR
€ 24.50
59051
59051S001
ref: 59051
GEAR-SPUR,OIL PUMP DR
€ 17.50
92033
92033S022
ref: 92033
RING-SNAP
€ 1.00
92038
92038S003
ref: 92038
KEY,PRIMARY DRIVE
€ 6.50
92045
92045S010
ref: 92045
BEARING-BALL
€ 25.00
92045
92045S026
ref: 92045
BEARING-BALL,28X68X18
€ 31.00
92049
92049S001
ref: 92049
SEAL-OIL,OIL,12X21X7
€ 7.50
92200
92200S058
ref: 92200
WASHER
€ 1.50
92210
92210S048
ref: 92210
NUT
€ 2.50
99996
99996S007
ref: 99996
(OPTION)
KIT,PISTON O/S 0.50
€ 54.00
