SWINGARM (A2/A3)
KLX125-A2 KLX125 2004 USA CANADA

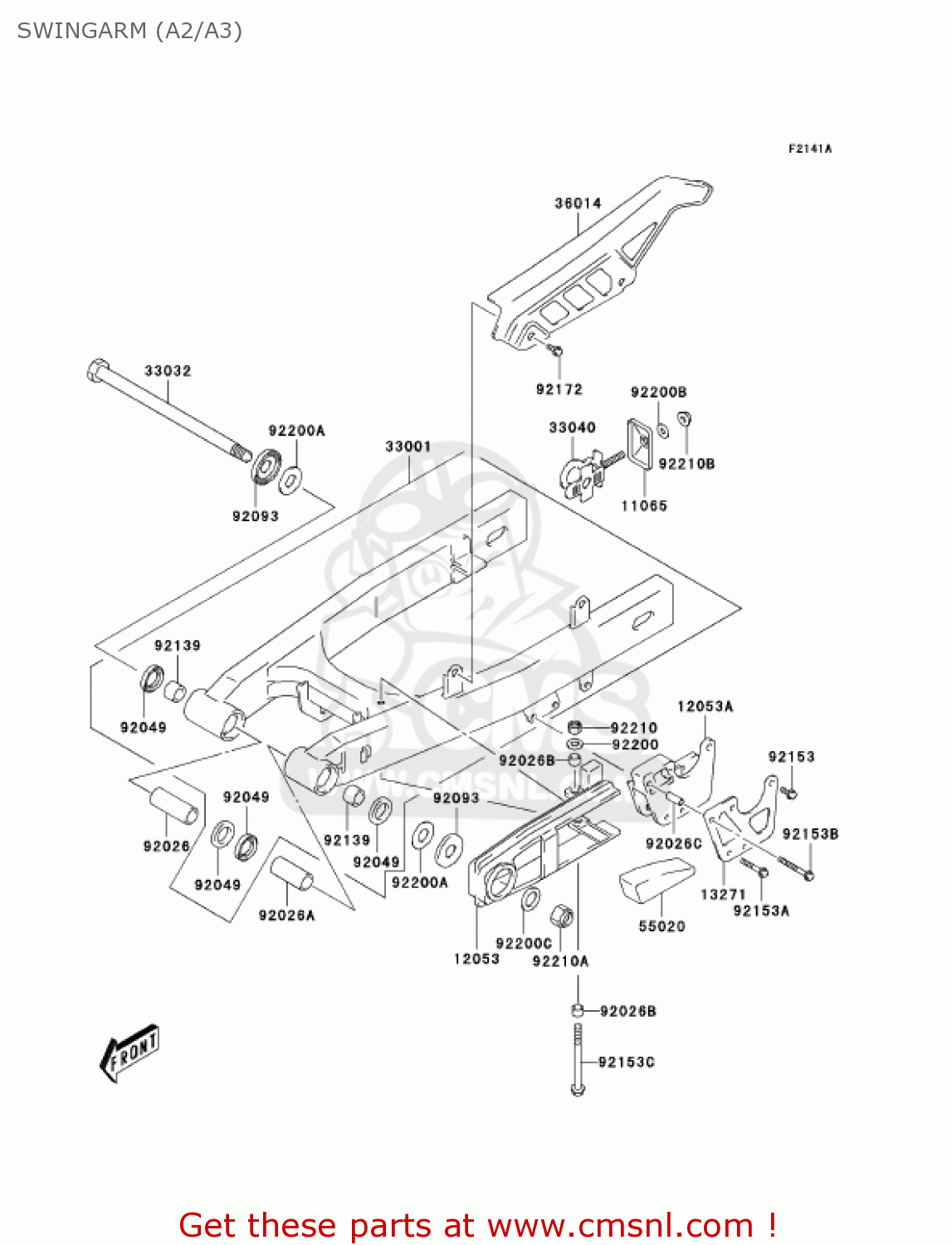

Swingarm (a2/a3) diagram KLX125-A2 KLX125 2004 USA CANADA
SWINGARM (A2/A3) KLX125-A2 KLX125 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11065
11065S018
ref: 11065
CAP,CHAIN ADJUSTER GU
€ 3.50
12053
12053S008
ref: 12053
GUIDE-CHAIN
€ 35.50
12053A
12053S011
ref: 12053A
GUIDE-CHAIN,CHAIN
€ 23.50
13271
13271S023
ref: 13271
PLATE
€ 19.00
33001
33001S001530
ref: 33001
ARM-COMP-SWING,B.SILV
€ 277.50
33032
33032S001
ref: 33032
SHAFT-SWING ARM
€ 18.50
33040
33040S001
ref: 33040
ADJUSTER-CHAIN,CHAIN
€ 16.50
36014
36014S001
ref: 36014
CASE-CHAIN
€ 35.00
55020
55020S007
ref: 55020
GUARD,CHAIN,GUIDE
€ 11.00
92026
92026S042
ref: 92026
SPACER,RR SWGARM PIVO
€ 13.00
92026A
92026S043
ref: 92026A
SPACER,RR SWGARM PIVO
€ 11.50
92026B
92026S052
ref: 92026B
SPACER
€ 1.50
92026C
92026S054
ref: 92026C
SPACER
€ 1.50
92049
92049S022
ref: 92049
SEAL-OIL,RR SWGARM
€ 3.50
92093
92093S012
ref: 92093
SEAL,RR SWGARM
€ 5.50
92139
92139S008
ref: 92139
BUSHING,RR SWGARM PIV
€ 9.00
92153
92153S177
ref: 92153
BOLT
€ 1.50
92153A
92153S178
ref: 92153A
BOLT
€ 2.00
92153B
92153S179
ref: 92153B
BOLT
€ 1.50
92153C
92153S243
ref: 92153C
BOLT
€ 1.50
92172
92172S099
ref: 92172
SCREW,6X10
€ 1.50
92200
92200S003
ref: 92200
WASHER
€ 1.50
92200A
92200S068
ref: 92200A
WASHER
€ 2.00
92200B
92200S070
ref: 92200B
WASHER,12.5X26X2.3
€ 2.00
92200C
92200S072
ref: 92200C
WASHER,14.5X24X2.3
€ 2.00
92210
92210S024
ref: 92210
NUT
€ 2.00
92210A
92210S057
ref: 92210A
NUT
€ 7.00
92210B
92210S094
ref: 92210B
NUT
€ 2.50
