CARBURETOR
KLX125-A2 KLX125 2004 USA CANADA

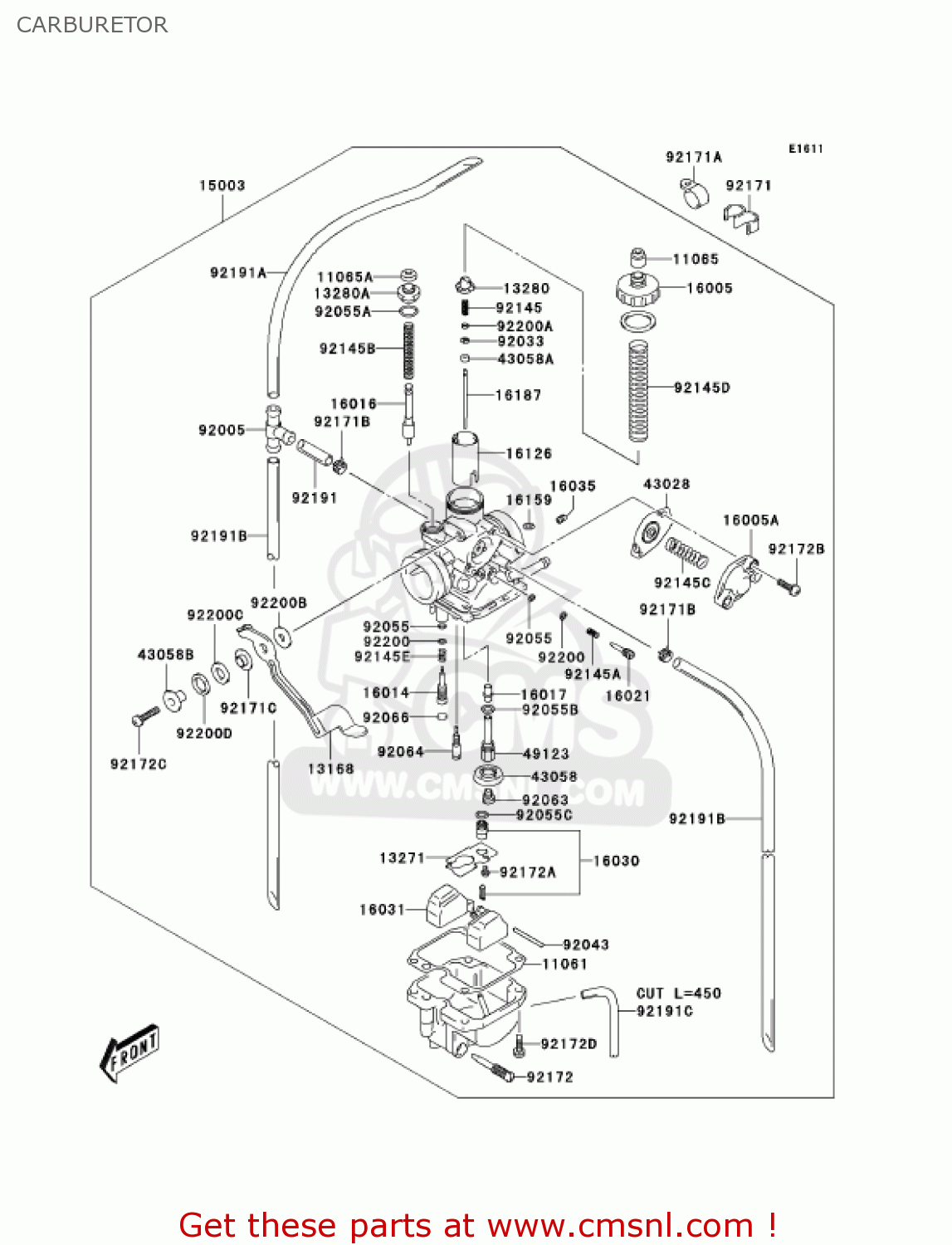

Carburetor diagram KLX125-A2 KLX125 2004 USA CANADA
CARBURETOR KLX125-A2 KLX125 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
11061S052
ref: 11061
GASKET (NAS)
€ 7.00
11065
11065S020
ref: 11065
CAP
€ 3.00
11065
11065S031
ref: 11065
CAP
€ 3.00
13168
13168S001
ref: 13168
LEVER
€ 14.00
13271
13271S036
ref: 13271
PLATE
€ 4.00
13280
13280S015
ref: 13280
HOLDER
€ 3.50
13280
13280S021
ref: 13280
HOLDER
€ 6.00
15003
15003S003
ref: 15003
CARBURETOR-ASSY
€ 173.00
16005
16005S003
ref: 16005
TOP-CHAMBER
€ 16.00
16005
16005S004
ref: 16005
TOP-CHAMBER
€ 17.00
16014
16014S003
ref: 16014
SCREW-PILOT AIR
€ 7.50
16016
16016S006
ref: 16016
PLUNGER
€ 13.50
16017
16017S002
ref: 16017
JET-NEEDLE
€ 23.50
16021
16021S002
ref: 16021
SCREW-THROTTLE STOP
€ 7.00
16030
16030S003
ref: 16030
VALVE-FLOAT
€ 51.00
16031
16031S003
ref: 16031
FLOAT
€ 38.50
16035
16035S002
ref: 16035
JET-AIR,#85
€ 8.00
16126
16126S005
ref: 16126
VALVE,PISTON
€ 31.50
16159
16159S001
ref: 16159
JET-POWER,POWER,145
€ 8.50
16187
16187S003
ref: 16187
NEEDLE-JET
€ 6.50
43028
43028S008
ref: 43028
DIAPHRAGM
€ 17.50
43058
43058S002
ref: 43058
RING
€ 3.50
43058
43058S005
ref: 43058
RING
€ 4.50
43058
43058S006
ref: 43058
RING
€ 3.50
49123
49123S003
ref: 49123
HOLDER-MAIN JET
€ 17.50
92005
92005S004
ref: 92005
FITTING
€ 7.50
92033
92033S033
ref: 92033
RING-SNAP
€ 3.00
92043
92043S034
ref: 92043
PIN
€ 3.00
92055
92055S013
ref: 92055
RING-O
€ 4.00
92055
92055S048
ref: 92055
RING-O
€ 4.00
92055
92055S049
ref: 92055
RING-O
€ 3.50
92055
92055S050
ref: 92055
RING-O
€ 3.00
92063
92063S005
ref: 92063
JET-MAIN
€ 6.00
92064
92064S003
ref: 92064
JET-PILOT,#17.5
€ 14.00
92066
92066S027
ref: 92066
PLUG
€ 3.00
92145
92145S013
ref: 92145
SPRING
€ 2.50
92145
92145S054
ref: 92145
SPRING
€ 2.50
92145
92145S055
ref: 92145
SPRING
€ 3.00
92145
92145S056
ref: 92145
SPRING
€ 2.50
92145
92145S057
ref: 92145
SPRING
€ 5.50
92145
92145S088
ref: 92145
SPRING
€ 3.00
92171
92171S052
ref: 92171
CLAMP,AIR VENT HOSE
€ 1.50
92171
92171S060
ref: 92171
CLAMP
€ 2.50
92171
92171S061
ref: 92171
CLAMP
€ 3.00
92171
92171S083
ref: 92171
CLAMP
€ 2.50
92172
92172S113
ref: 92172
SCREW
€ 3.00
92172
92172S114
ref: 92172
SCREW
€ 2.00
92172
92172S115
ref: 92172
SCREW
€ 2.00
92172
92172S116
ref: 92172
SCREW
€ 2.50
92172
92172S139
ref: 92172
SCREW
€ 3.00
92191
92191S035
ref: 92191
TUBE,5X8X25
€ 2.00
92191
92191S036
ref: 92191
TUBE,5X8X375
€ 4.50
92191
92191S037
ref: 92191
TUBE,5X8X475
€ 5.50
92191
92191S053
ref: 92191
TUBE
€ 5.50
92200
92200S019
ref: 92200
WASHER
€ 3.00
92200
92200S082
ref: 92200
WASHER
€ 2.50
92200
92200S122
ref: 92200
WASHER
€ 2.00
92200
92200S123
ref: 92200
WASHER
€ 1.50
92200
92200S124
ref: 92200
WASHER
€ 1.50
