CYLINDER
KLX125-A1 KLX125 2003 USA CANADA

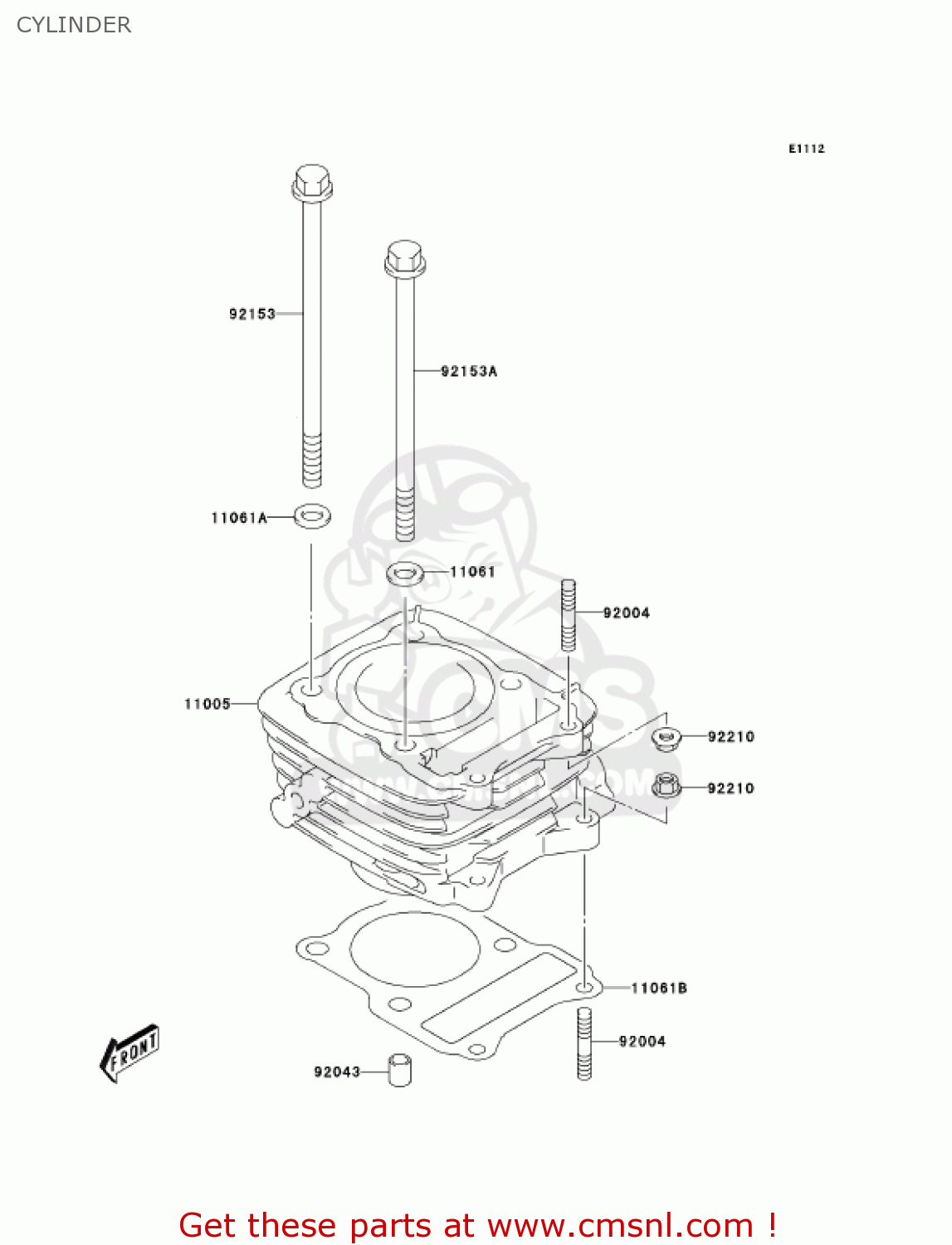

Cylinder diagram KLX125-A1 KLX125 2003 USA CANADA
CYLINDER KLX125-A1 KLX125 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11005
11005S004
ref: 11005
CYLINDER-ENGINE
€ 188.50
11061
11061S032
ref: 11061
GASKET,8.5X19X2.3 (NAS)
€ 1.50
11061A
11061S034
ref: 11061A
GASKET,8.5X17X2.3 (NAS)
€ 2.00
11061B
11061S035
ref: 11061B
GASKET,CYLINDER (NAS)
€ 7.00
92004
92004S001
ref: 92004
STUD
€ 2.00
92043
92043S019
ref: 92043
PIN
€ 1.50
92153
92153S135
ref: 92153
BOLT,L=165
€ 4.00
92153A
92153S164
ref: 92153A
BOLT,L=155
€ 4.00
92210
92210S004
ref: 92210
NUT
€ 1.50
