BRAKE PEDAL

KLX125-A1 KLX125 2003 USA CANADA

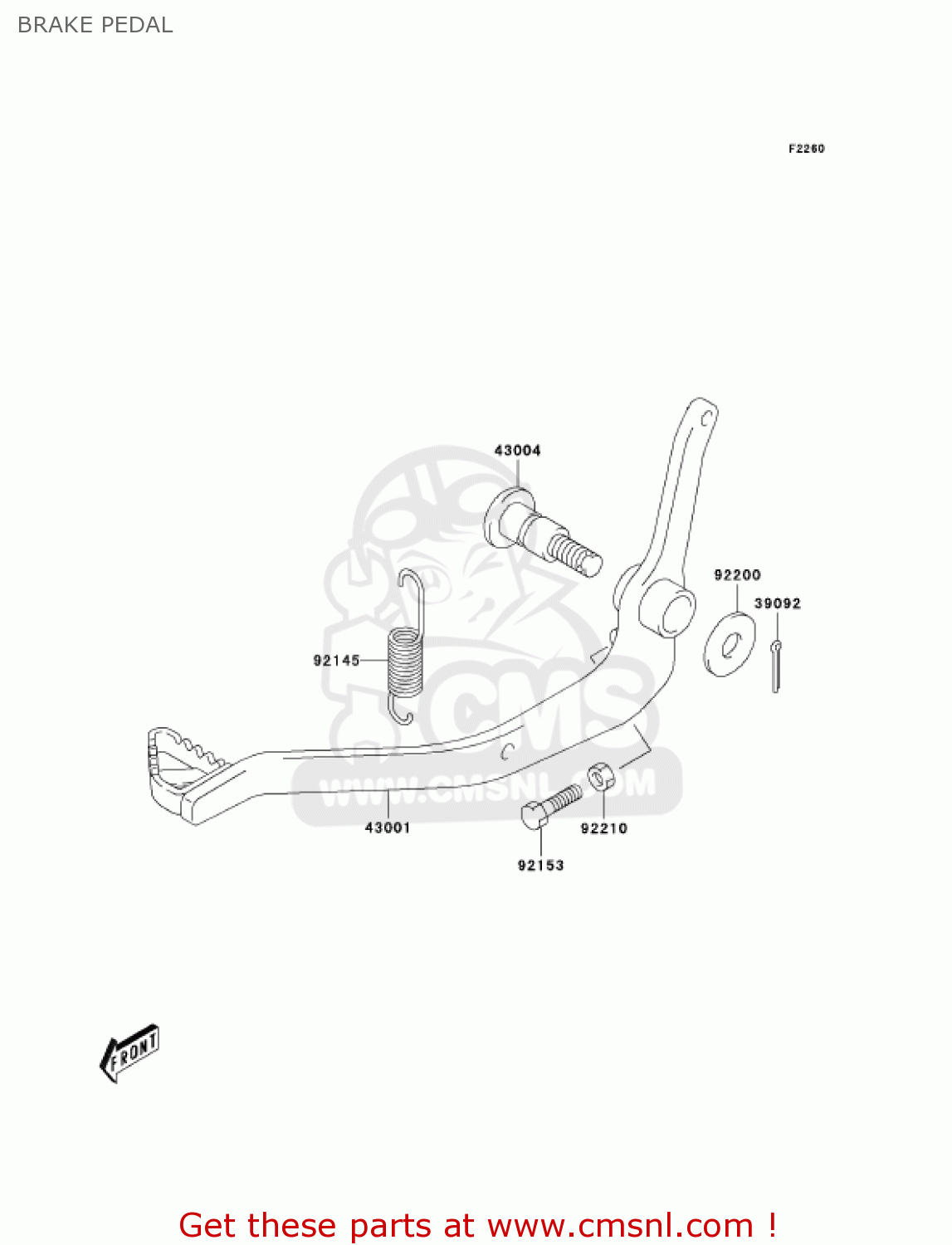

Brake pedal diagram KLX125-A1 KLX125 2003 USA CANADA

BRAKE PEDAL KLX125-A1 KLX125 2003 USA CANADA

BRAKE PEDAL KLX125-A1 KLX125 2003 USA CANADA

prices are in EUR

ref

part #

description

quantity

39092

39092S005
ref: 39092

PIN-HAIR,BRAKE PEDAL

€ 1.50

43001

43001S001A
ref: 43001

LEVER-BRAKE

€ 45.00

43004

43004S001
ref: 43004

SHAFT-BRAKE

€ 14.00

92145

92145S048
ref: 92145

SPRING,BRAKE PEDAL RE

€ 3.50

92153

92153S182
ref: 92153

BOLT

€ 1.00

92200

92200S067
ref: 92200

WASHER

€ 1.50

92210

92210S001
ref: 92210

NUT

€ 1.50
