CHASSIS ELECTRICAL EQUIPMENT

KLX110A6F KLX110 2006 USA CANADA

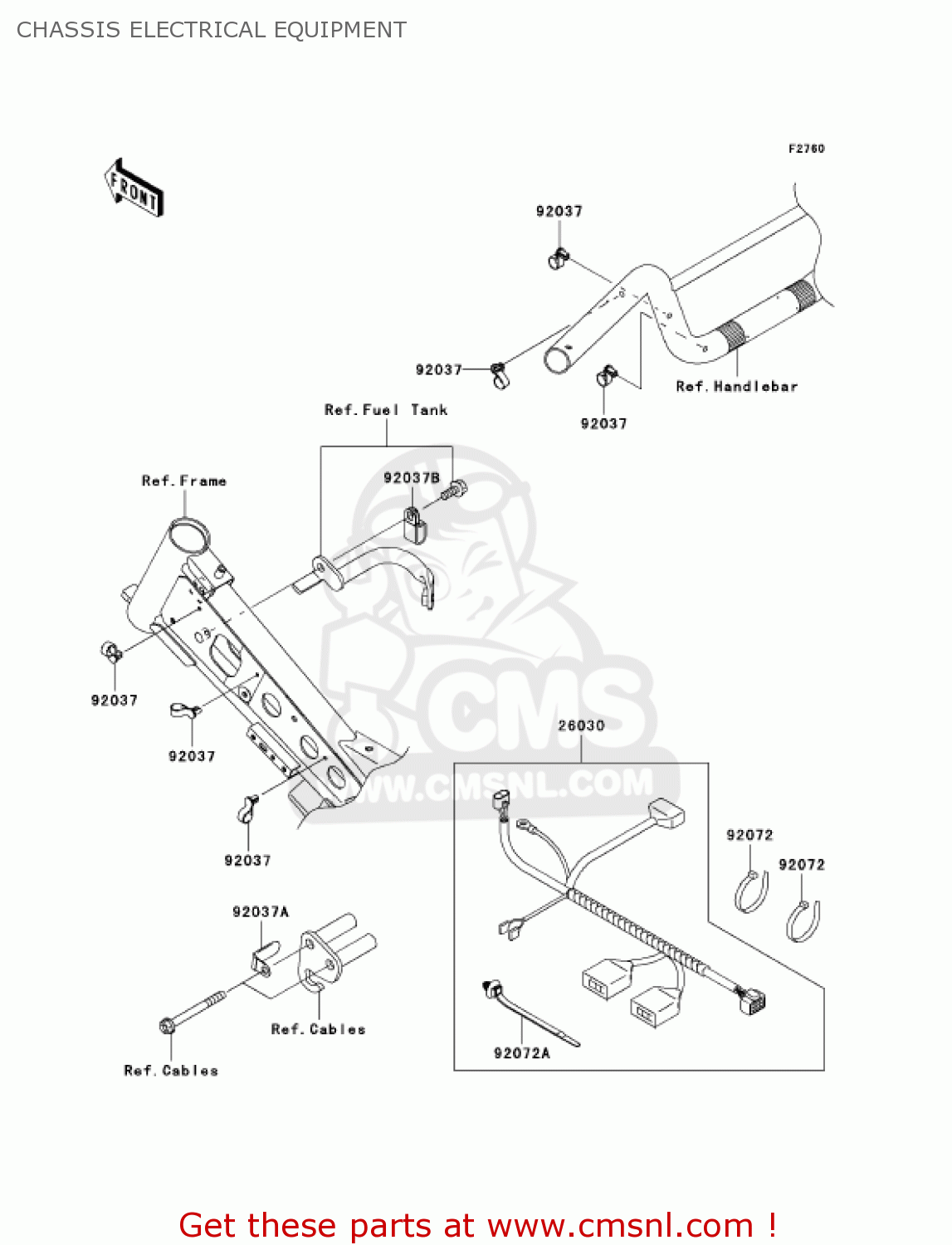

Chassis electrical equipment diagram KLX110A6F KLX110 2006 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT KLX110A6F KLX110 2006 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX110A6F KLX110 2006 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX110A6F KLX110 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
26030
260301931
ref: 26030
HARNESS,MAIN
€ 122.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037A
920371539
ref: 92037A
CLAMP,L=45
920371539
€ 3.00
92037B
920371608
ref: 92037B
CLAMP
920371608
€ 5.50
92072
920721293
ref: 92072
BAND
920721293
€ 6.50
92072A
920721414
ref: 92072A
BAND
920721414
€ 2.00
