CARBURETOR (CN)
KLX110A6F KLX110 2006 USA CANADA

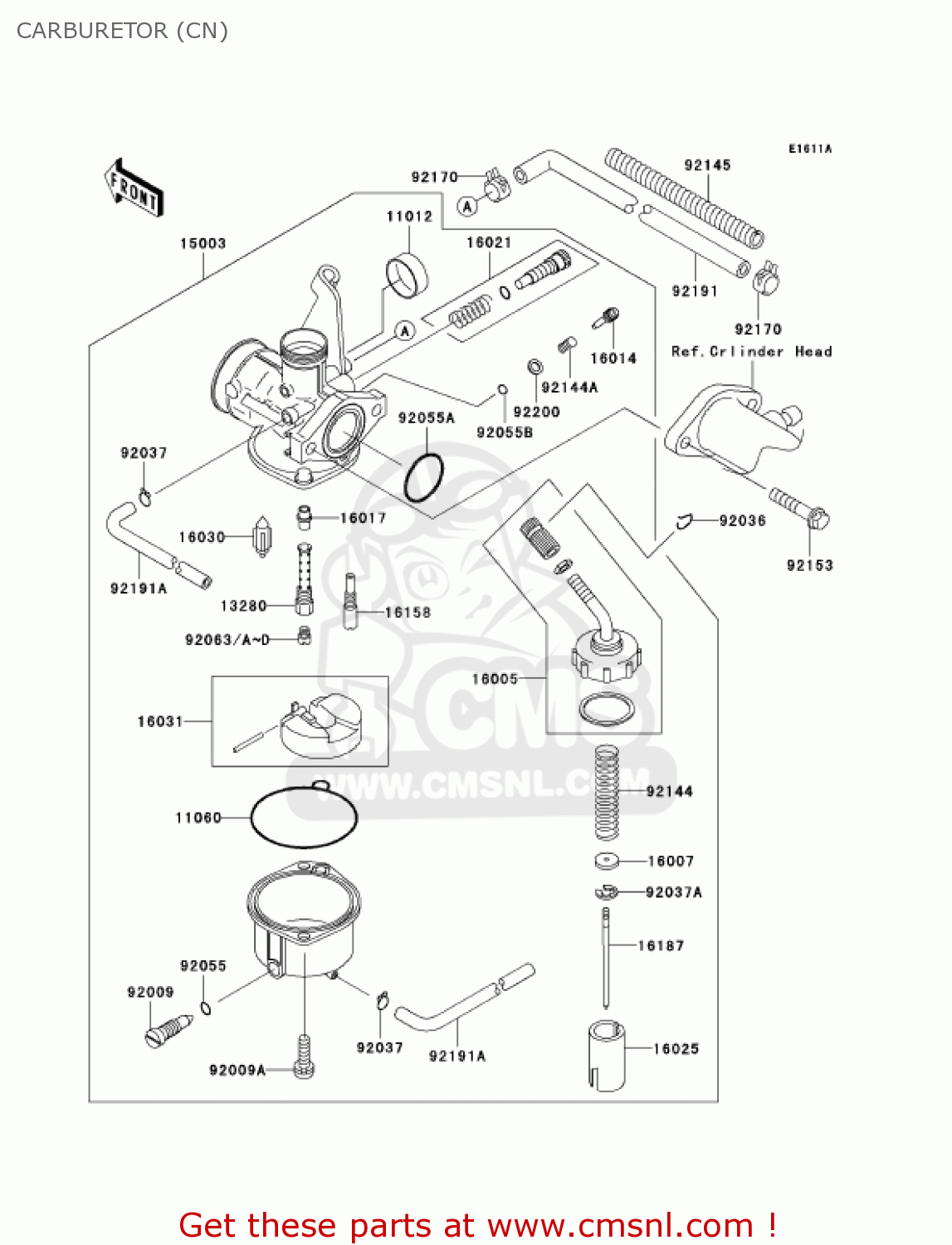

Carburetor (cn) diagram KLX110A6F KLX110 2006 USA CANADA
CARBURETOR (CN) KLX110A6F KLX110 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121940
ref: 11012
[CN]
CAP,CHOKE
€ 7.00
11060
110601700
ref: 11060
[CN]
GASKET,FLOAT CHAMBER (NAS)
€ 15.00
13280
132801092
ref: 13280
[CN]
HOLDER,NEEDLE JET
€ 10.50
15003
150031694
ref: 15003
[CN]
CARBURETOR-ASSY
€ 206.50
16005
160051091
ref: 16005
[CN]
TOP-CHAMBER
€ 16.50
16007
160071103
ref: 16007
[CN]
SEAT-SPRING
€ 4.00
16014
160141093
ref: 16014
[CN]
SCREW-PILOT AIR
€ 11.00
16017
160171434
ref: 16017
[CN]
JET-NEEDLE
€ 35.50
16021
160211241
ref: 16021
[CN]
SCREW-THROTTLE STOP
€ 12.00
16025
160251209
ref: 16025
[CN]
VALVE-THROTTLE,CA3.0
€ 85.50
16030
160300002
ref: 16030
[CN]
VALVE-FLOAT,FLOAT
€ 42.50
16031
160311088
ref: 16031
[CN]
FLOAT
€ 40.50
16158
161581063
ref: 16158
[CN]
JET-SLOW,#38
€ 10.50
16187
161871228
ref: 16187
[CN]
NEEDLE-JET,NCFA
€ 26.50
92009
920091057
ref: 92009
[CN]
SCREW,DRAIN
€ 10.00
92009A
920091750
ref: 92009A
[CN]
SCREW, 4X8
€ 2.00
92036
92036018
ref: 92036
[CN]
CIRCLIP
€ 2.50
92037
920371142
ref: 92037
[CN]
CLAMP,TUBE
€ 2.50
92037A
920371401
ref: 92037A
[CN]
CLAMP,JET NEEDLE
€ 2.50
92055
920551053
ref: 92055
[CN]
O RING,DRAIN SCREW
€ 3.00
92055A
920551541
ref: 92055A
[CN]
RING-O
€ 2.00
92055B
920551542
ref: 92055B
[CN]
RING-O
€ 2.50
92063
920631326
ref: 92063
[CN] (
JET-MAIN,#85
€ 10.00
92063A
920631393
ref: 92063A
[CN] (
JET-MAIN,#78
€ 9.50
92063B
920631395
ref: 92063B
[CN] (
JET-MAIN,#75
€ 9.50
92063C
920631396
ref: 92063C
[CN]
JET-MAIN,#80
€ 9.50
92063D
920631397
ref: 92063D
[CN] (
JET-MAIN,#82
€ 9.50
92144
921441875
ref: 92144
[CN]
SPRING,THROTTLE
€ 11.00
92144A
921441876
ref: 92144A
[CN]
SPRING
€ 3.50
92145
921451481
ref: 92145
[CN]
SPRING,HOSE PROTECTER
€ 3.50
92153
921531187
ref: 92153
[CN]
BOLT,FLANGED,6X30
€ 2.50
92170
921701872
ref: 92170
[CN]
CLAMP
€ 1.50
92191
921911700
ref: 92191
[CN]
TUBE,FUEL
€ 11.50
92191A
921911735
ref: 92191A
[CN]
TUBE,3.5X6.5X418
€ 12.50
92200
922001270
ref: 92200
[CN]
WASHER
€ 2.00
