RADIATOR(KL650-C1)

KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

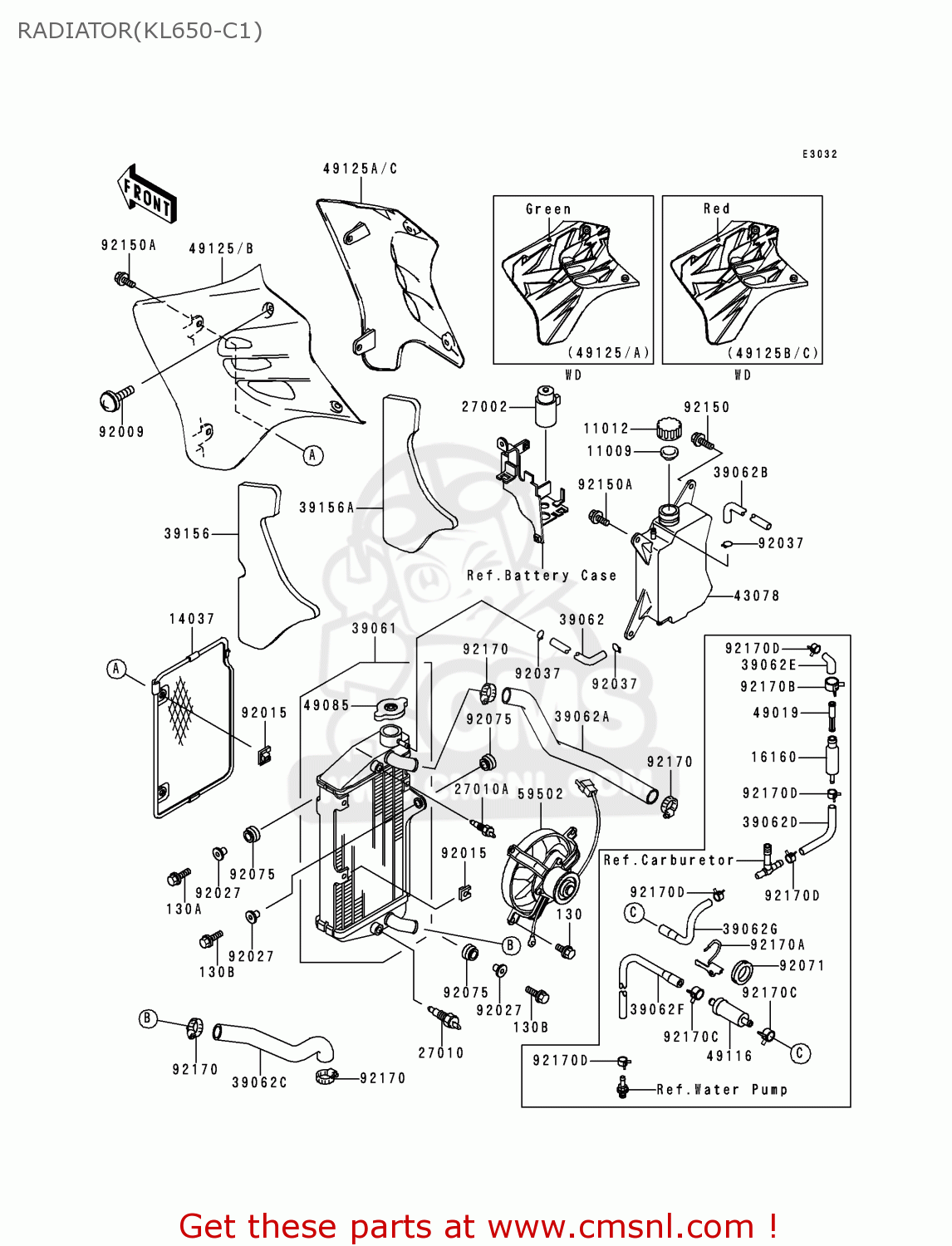

Radiator(kl650-c1) diagram KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

RADIATOR(KL650-C1) KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
RADIATOR(KL650-C1) KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
RADIATOR(KL650-C1) KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371208
ref: 14037
SCREEN
140371208
€ 69.50
16160
161601151
ref: 16160
ARFGFRITNLSTUK
BODY,FILTER
161601151
€ 6.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
27010A
270101305
ref: 27010A
SWITCH
270101305
€ 60.00
39061
390611214
ref: 39061
RADIATOR-ASSY
€ 653.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621217
ref: 39062A
HOSE-COOLING,HEAD-RAD
390621217
€ 35.00
39062B
390621220
ref: 39062B
HOSE-COOLING,RESERVOI
390621220
€ 17.50
39062C
390621243
ref: 39062C
HOSE-COOLING,RADIATOR
390621243
€ 23.50
39062D
390621304
ref: 39062D
ARFGFRITNLSTUK
HOSE-COOLING,FILTER-C
390621304
€ 4.50
39062E
390621411
ref: 39062E
ARFGFRITNLSTUK
HOSE-COOLING
390621411
€ 7.00
39062F
390621420
ref: 39062F
ARFGFRITNLSTUK
HOSE-COOLING,VALVE-PU
€ 6.00
39062G
390621469
ref: 39062G
ARFGFRITNLSTUK
HOSE-COOLING
390621469
€ 5.50
39156
391561472
ref: 39156
PAD,LH
€ 11.50
39156A
391561473
ref: 39156A
PAD,RH
€ 10.00
43078
430781083
ref: 43078
RESERVOIR
430781083
€ 45.50
49019
490191068
ref: 49019
ARFGFRITNLSTUK
FILTER-FUEL
490191068
€ 4.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
49116
491161081
ref: 49116
ARFGFRITNLSTUK
VALVE-ASSY
491161081
€ 85.00
49125
49125501759
ref: 49125
AREUFGFRGRITNLNRSPUK
SHROUD,LH,F.B.GREEN
€ 110.50
49125A
49125501859
ref: 49125A
AREUFGFRGRITNLNRSPUK
SHROUD,RH,F.B.GREEN
49125501859
€ 103.00
49125B
4912550196L
ref: 49125B
SHROUD,LH,F.RED
4912550196L
€ 110.50
49125C
4912550206L
ref: 49125C
SHROUD,RH,F.RED
4912550206L
€ 103.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
130J0625
€ 2.00
59502
595021082
ref: 59502
FAN-ASSY
595021082
€ 483.00
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92027
920271920
ref: 92027
COLLAR
920271920
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92071
920711028
ref: 92071
ARFGFRITNLSTUK
GROMMET AIR FILTER
€ 4.50
92075
920751352
ref: 92075
DAMPER,RADIATOR
920751352
€ 4.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501506
ref: 92150A
BOLT
921501506
€ 3.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
92170A
921701235
ref: 92170A
ARFGFRITNLSTUK
CLAMP
€ 5.50
92170B
921701491
ref: 92170B
ARFGFRITNLSTUK
CLAMP
921701491
€ 5.00
92170C
921701492
ref: 92170C
ARFGFRITNLSTUK
CLAMP
921701492
€ 3.00
92170D
921701493
ref: 92170D
ARFGFRITNLSTUK
CLAMP
921701493
€ 3.00
