IGNITION SWITCH

KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

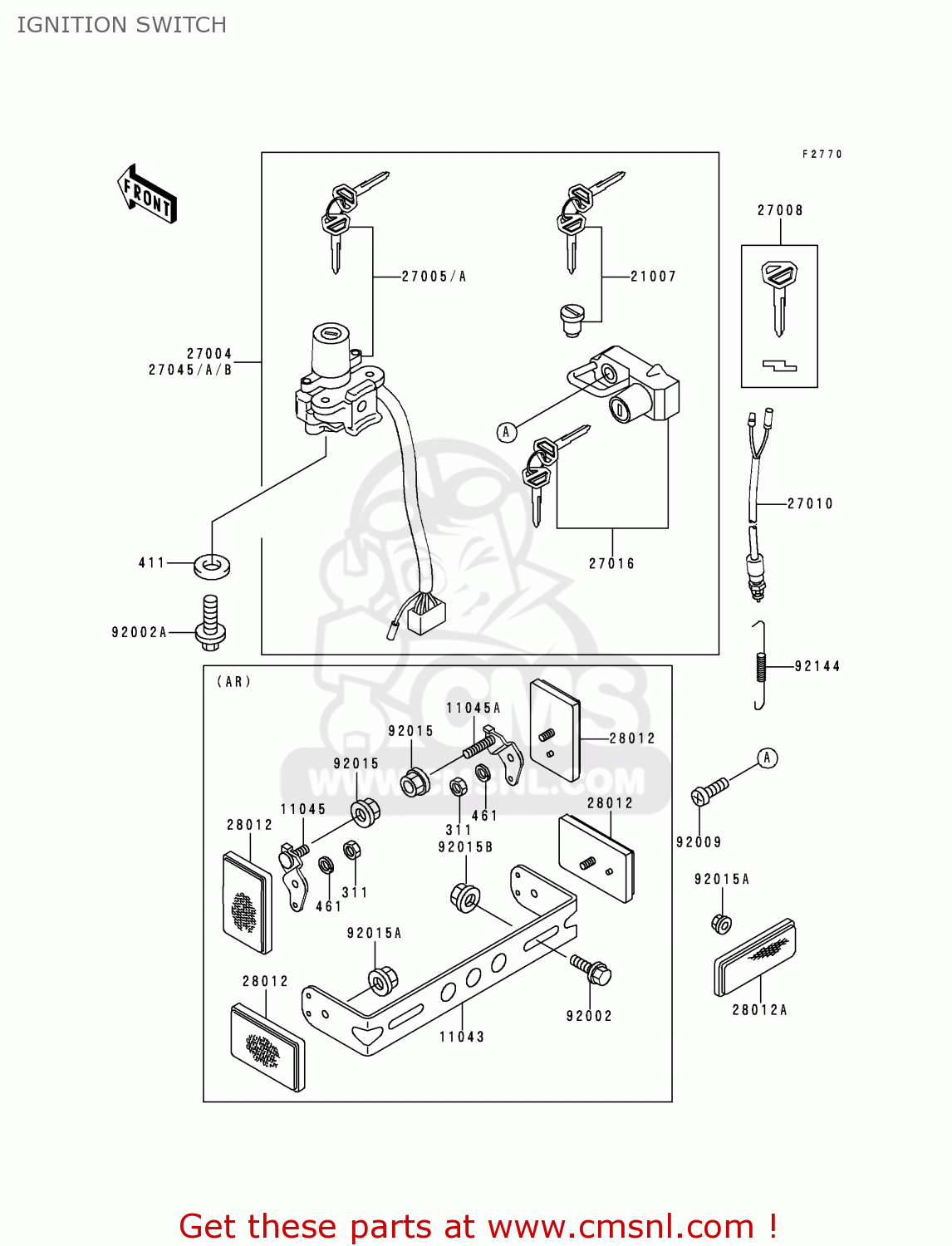

Ignition switch diagram KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH KL650C1 KLR650 1995 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11043
110431619
ref: 11043
AR
BRACKET,REFLECTOR,RR
110431619
€ 9.00
11045
110451354
ref: 11045
AR
BRACKET,REFLECTOR,FR
110451354
€ 5.50
11045A
110451355
ref: 11045A
AR
BRACKET,REFLECTOR,FR
110451355
€ 6.00
21007
210075040
ref: 21007
SWITCH-ASSY,TANK CAP
€ 50.50
27004
270045499
ref: 27004
AREUFGFRGRNLNRSDSPST
SWITCH-ASSY
€ 177.00
27005
270051187
ref: 27005
SWITCH-ASSY-IGNITION
€ 175.00
27008
270081170
ref: 27008
KEY-LOCK,BLANK
270081170
€ 12.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27016
270165207
ref: 27016
AREUFGFRGRNLNRSDSPST
LOCK-ASSY,HELMET
270165207
€ 54.00
27016
270165207
ref: 27016
IT
LOCK-ASSY,HELMET
270165207
€ 54.00
27045
270455008
ref: 27045
IT
SWITCH-ASSY
€ 191.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
920021333
€ 1.50
92009
920091753
ref: 92009
AREUFGFRGRNLNRSDSPST
SCREW
€ 2.50
92009
920091753
ref: 92009
IT
SCREW
€ 2.50
92015
920151233
ref: 92015
AR
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151259
ref: 92015A
EUFGFRGRITNLNRSDSPST
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151259
ref: 92015A
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015B
920151367
ref: 92015B
AR
NUT,FLANGED,6MM
920151367
€ 0.50
311
311B0500
ref: 311
AR
NUT-HEX
311B0500
€ 0.50
411
411E0600
ref: 411
W-PLAIN-S
411E0600
€ 0.50
461
461F0500
ref: 461
AR
WASHER-SPRING,5MM
461F0500
€ 0.50
92144
921441093
ref: 92144
SPRING,REAR BRAKE SWI
921441093
€ 3.00
