SIDE COVER/CHAIN CASE

KL650B2 TENGAI 1990 USA CALIFORNIA CANADA

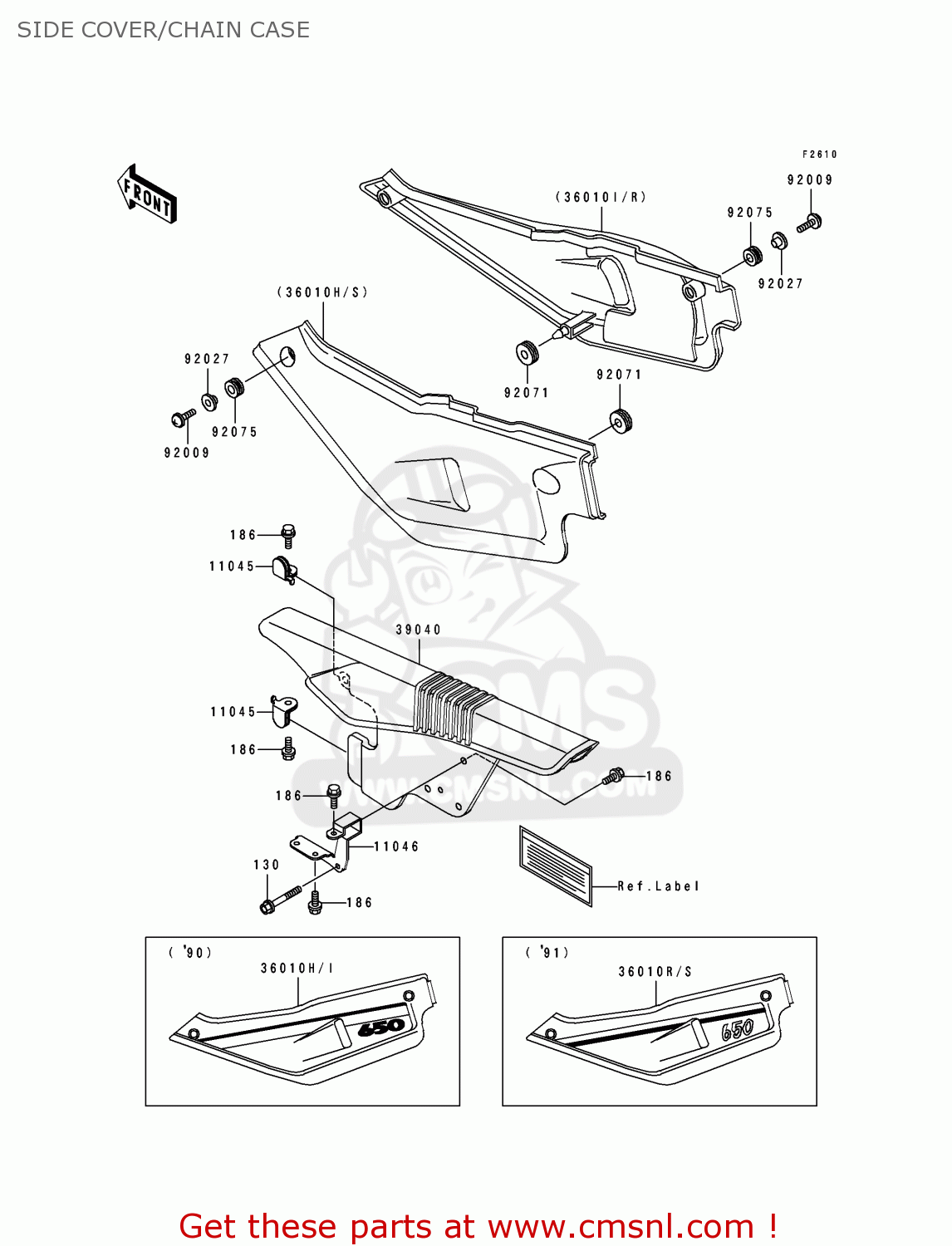

Side cover/chain case diagram KL650B2 TENGAI 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

11045

110451335
ref: 11045

BRACKET,CHAIN CASE,FR

€ 7.00

11046

110461391
ref: 11046

BRACKET,CHAIN CASE,RR

€ 9.00

36010H

360105291R1
ref: 36010H

SIDE COVER,LH,PEARL ALPINE WHITE

€ 90.00

36010I

360105292R1
ref: 36010I

SIDE COVER,RH,PEARL ALPINE WHITE

€ 90.00

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92027

920271795
ref: 92027

COLLAR,L=9.1,WHITE

€ 4.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00
