FUEL TANK

KL650B2 TENGAI 1990 USA CALIFORNIA CANADA

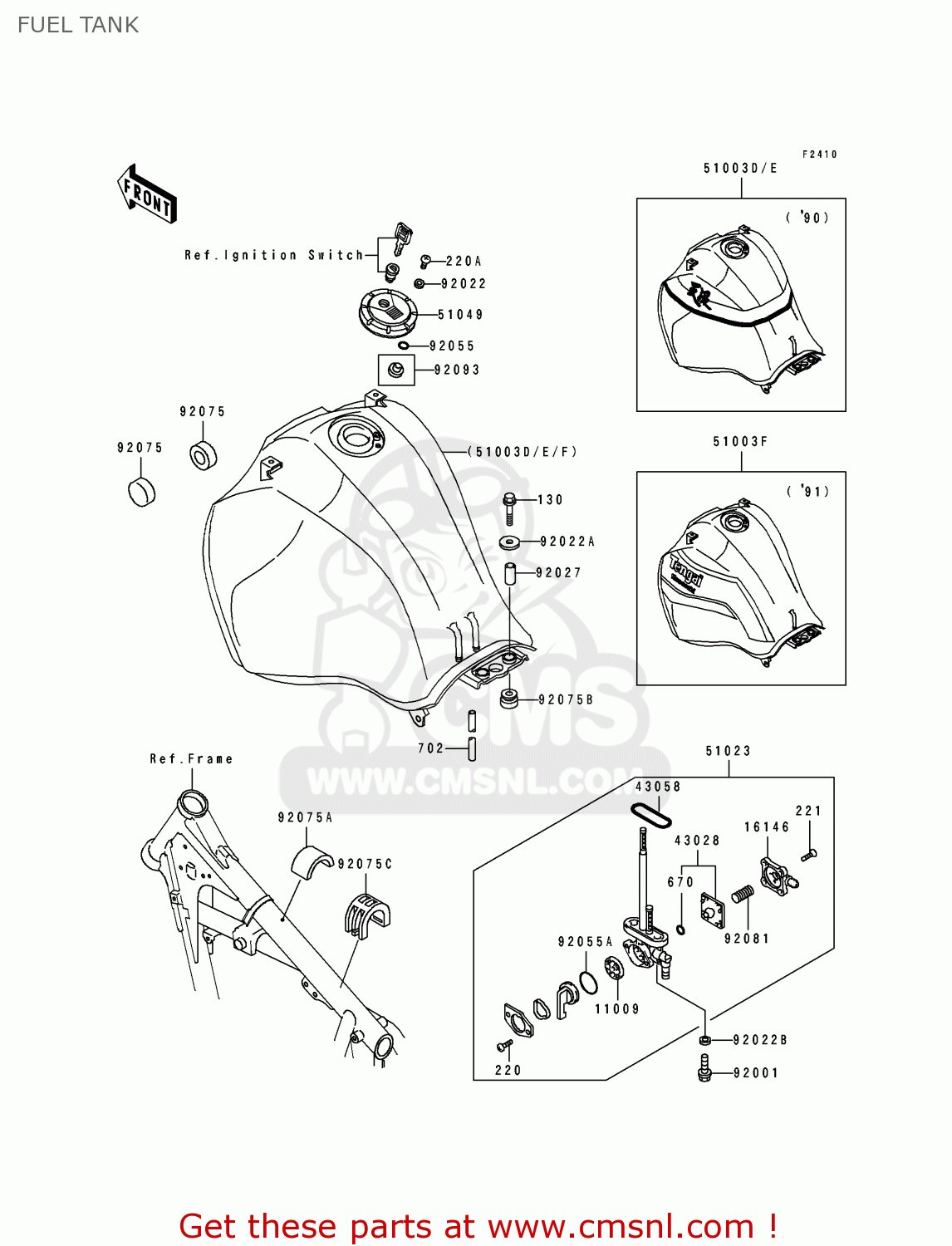

Fuel tank diagram KL650B2 TENGAI 1990 USA CALIFORNIA CANADA

FUEL TANK KL650B2 TENGAI 1990 USA CALIFORNIA CANADA
FUEL TANK KL650B2 TENGAI 1990 USA CALIFORNIA CANADA
FUEL TANK KL650B2 TENGAI 1990 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
161461010
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
430281033
€ 15.00
43058
51039003
ref: 43058
'O' RING
51039003
€ 4.00
51003D
510035111FY
ref: 51003D
CNUS
FUEL TANK,COMPLETE,BLUE/WHITE
€ 484.00
51003E
510035112FY
ref: 51003E
CA
FUEL TANK,COMPLETE,BLUE/WHITE
€ 423.00
51023
510231148
ref: 51023
TAP-ASSY,FUEL
€ 87.00
51049
510491077
ref: 51049
CAP-TANK,FUEL
€ 89.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
920221038
ref: 92022
WASHER,PLAIN
920221038
€ 2.50
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
92022125
€ 1.00
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271856
ref: 92027
COLLAR,6.8X10X22
920271856
€ 4.00
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551085
ref: 92055A
'O' RING,FUEL TAP LEV
920551085
€ 3.00
92075
92075101
ref: 92075
DAMPER RUBBER-FL TANK
92075101
€ 4.00
92075A
920751507
ref: 92075A
DAMPER
920751507
€ 7.00
92075B
920751660
ref: 92075B
DAMPER
920751660
€ 5.50
92075C
920751862
ref: 92075C
DAMPER,FUEL TANK
920751862
€ 10.50
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
130
130C0630
ref: 130
BOLT-FLANGED
130C0630
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
220D0510
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A05620
ref: 702
CNUS
TUBE-RUBBER,5X8X620
€ 50.00
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
