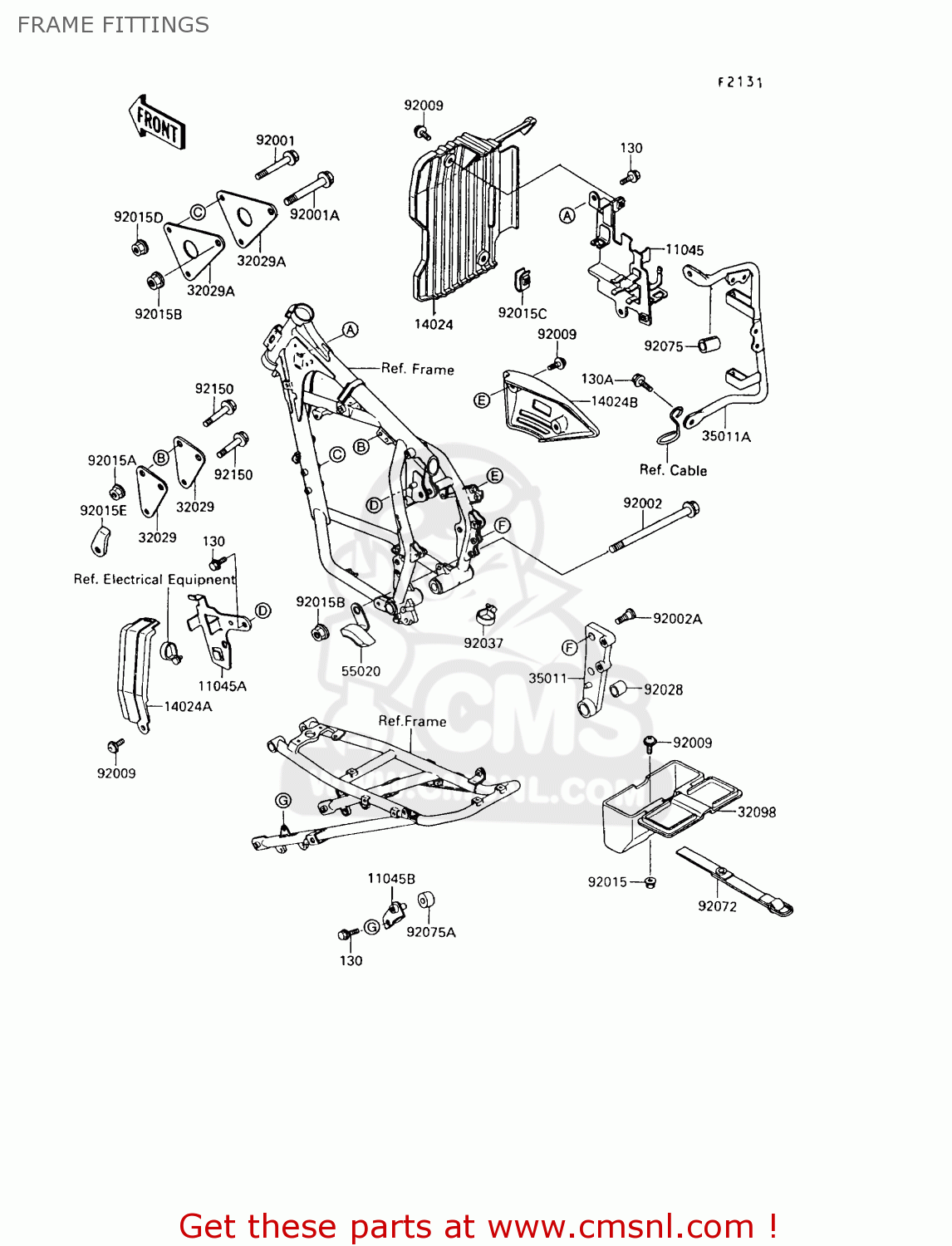

FRAME FITTINGS

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0614
ref: 130A

BOLT-FLANGED,6X14,BLA

€ 1.50

11045

110451358
ref: 11045

BRACKET,ELECTRIC,RH

€ 40.50

11045A

110451359
ref: 11045A

BRACKET,ELECTRIC,LH

€ 10.50

11045B

110451360
ref: 11045B

BRACKET

€ 18.00

14024

140241372
ref: 14024

COVER,FRONT RESERVOIR

€ 52.50

14024A

140241373
ref: 14024A

COVER,SIDE STAND SWIT

€ 27.00

14024B

140241470
ref: 14024B

COVER,RESERVOIR TANK

€ 9.50

32029

320291685
ref: 32029

BRACKET-ENGINE,HEAD

€ 11.50

32029A

320291805
ref: 32029A

BRACKET-ENGINE,FR

€ 9.00

32098

3209810746F
ref: 32098

CASE-TOOL,P.WHITE

€ 34.50

35011

350111327
ref: 35011

STAY

€ 48.50

35011A

350111370
ref: 35011A

STAY,HORN&RESERVOIR T

€ 52.50

55020

550201266
ref: 55020

GUARD,CHAIN

€ 30.50

92001

920011583
ref: 92001

BOLT,FLANGED,8X70

€ 6.00

92001A

920014021
ref: 92001A

BOLT,10X75

€ 6.00

92002

920021348
ref: 92002

BOLT,10X145

€ 13.00

92002A

920021598
ref: 92002A

BOLT,SOCKET,8X23.5

€ 4.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92015

920151233
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92015A

920151406
ref: 92015A

NUT,8MM

€ 3.00

92015B

920151415
ref: 92015B

NUT,10MM

€ 3.00

92015C

920151602
ref: 92015C

NUT,6MM

€ 4.50

92015D

920151668
ref: 92015D

NUT

€ 3.00

92015E

920151673
ref: 92015E

NUT,PLATE,8MM

€ 6.00

92028

920281259
ref: 92028

BUSHING

€ 10.00

92037

920371903
ref: 92037

CLAMP

€ 5.00

92072

920721219
ref: 92072

BAND,TOL CASE

€ 15.00

92075

920751941
ref: 92075

DAMPER

€ 4.00

92075A

92075243
ref: 92075A

DAMPER RUBBER

€ 4.50

92150

921501415
ref: 92150

BOLT, FLANGE 8X24

€ 2.00
