CARBURETOR

KL650A9 KLR650 1995 USA CALIFORNIA CANADA

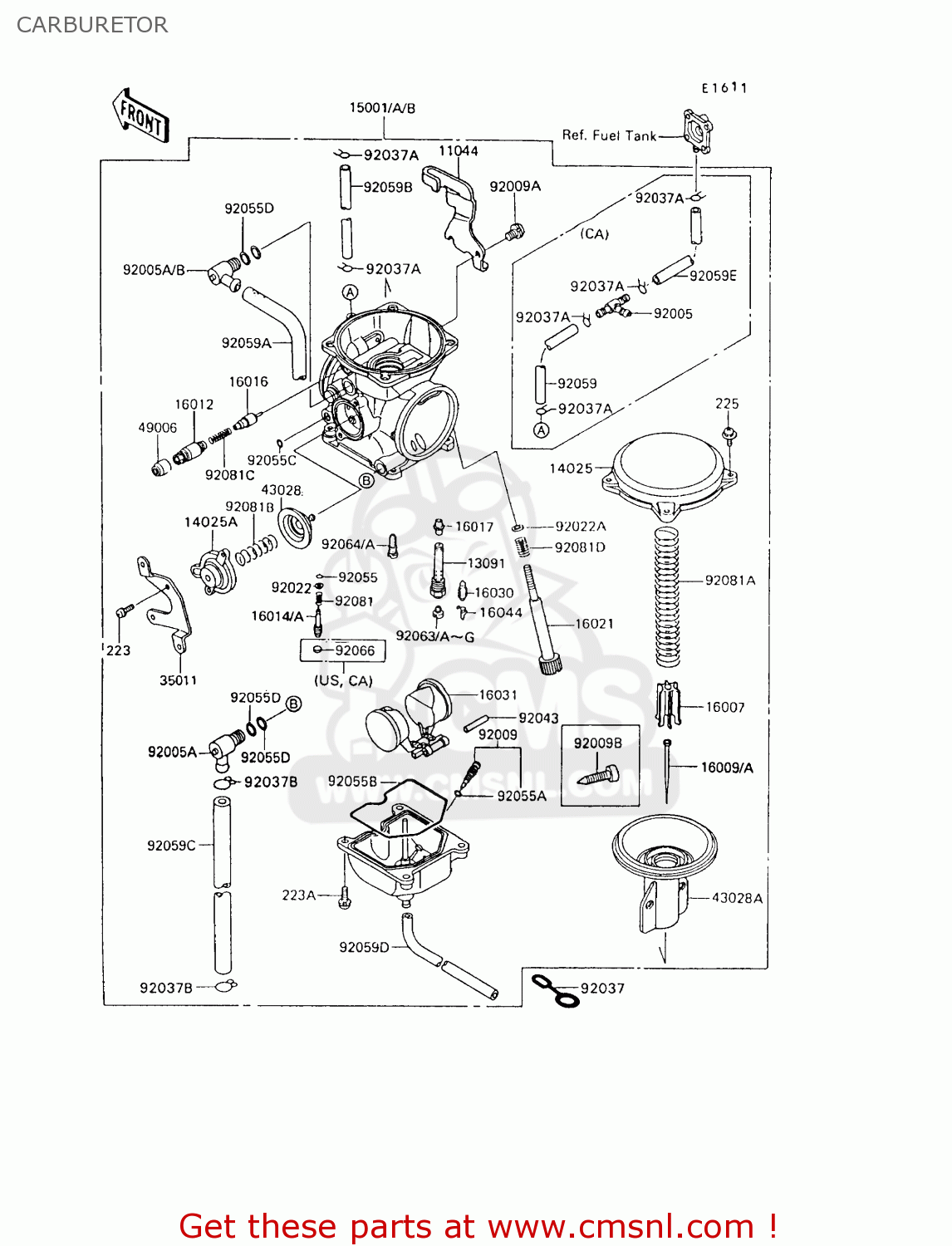

Carburetor diagram KL650A9 KLR650 1995 USA CALIFORNIA CANADA

CARBURETOR KL650A9 KLR650 1995 USA CALIFORNIA CANADA
CARBURETOR KL650A9 KLR650 1995 USA CALIFORNIA CANADA
CARBURETOR KL650A9 KLR650 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11044
110441353
ref: 11044
BRACKET,THROTTLE CABL
110441353
€ 44.00
13091
130911425
ref: 13091
HOLDER,NEEDLE JET
130911425
€ 19.50
14025
140251890
ref: 14025
COVER,MIXING CHAMBER
140251890
€ 58.50
14025A
140251903
ref: 14025A
COVER,AIR CUT VALVE
140251903
€ 43.00
15001
150011327
ref: 15001
US
CARBURETOR-ASSY
150011327
€ 631.50
15001A
150011368
ref: 15001A
CA
CARBURETOR ASSEMBLY
€ 349.50
15001B
150011473
ref: 15001B
CN
CARBURETOR-ASSY
€ 470.50
16007
160071113
ref: 16007
SEAT-SPRING,DIAPHRAGM
160071113
€ 13.50
16009
160091344
ref: 16009
CAUS
NEEDLE-JET,N31R
€ 25.00
16009A
160091537
ref: 16009A
CN
NEEDLE-JET,N74C
160091537
€ 24.00
16012
160121055
ref: 16012
CAP-STARTER PLUNGER
160121055
€ 17.50
16014
160141053
ref: 16014
CAUS
SCREW-PILOT AIR
160141053
€ 15.50
16014A
160141061
ref: 16014A
CN
SCREW-PILOT AIR
160141061
€ 18.00
16016
160161057
ref: 16016
PLUNGER
160161057
€ 41.00
16017
160171254
ref: 16017
JET-NEEDLE,#6
160171254
€ 37.50
16021
160211109
ref: 16021
SCREW-THROTTLE STOP
160211109
€ 31.50
16030
160301057
ref: 16030
VALVE-FLOAT
160301057
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
35011
350111232
ref: 35011
STAY,AIR CUT VALVE
350111232
€ 25.00
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
43028A
430281062
ref: 43028A
DIAPHRAGM,VALVE
430281062
€ 175.00
49006
490061165
ref: 49006
BOOT,STARTER PLUNGER
490061165
€ 6.50
92005
920051112
ref: 92005
CA
FITTING,FUEL,T-TYPE
920051112
€ 10.00
92005A
920051120
ref: 92005A
CAUS
FITTING,L-TYPE
920051120
€ 18.50
92005A
920051120
ref: 92005A
CN
FITTING,L-TYPE
920051120
€ 18.50
92005B
920051144
ref: 92005B
CAUS
FITTING,L-TYPE
€ 18.50
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92022A
920221587
ref: 92022A
WASHER,THROTTLE STOP
920221587
€ 3.00
92037
92037134
ref: 92037
CLAMP,OVER FLOW PIPE
92037134
€ 7.50
92037A
920371477
ref: 92037A
CNUS
CLAMP,TUBE
920371477
€ 3.00
92037A
920371477
ref: 92037A
CA
CLAMP,TUBE
920371477
€ 3.00
92037B
920371531
ref: 92037B
CLAMP,TUBE
920371531
€ 3.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92055C
920551245
ref: 92055C
RING-O
920551245
€ 3.50
92055D
920551246
ref: 92055D
RING-O
920551246
€ 3.00
92059
920591713
ref: 92059
CA
TUBE,5X9X120
920591713
€ 16.50
92059A
920591727
ref: 92059A
TUBE,6.5X9.5X430
920591727
€ 18.00
92059B
920591836
ref: 92059B
CNUS
TUBE,5X9X220
€ 16.50
92059C
920591837
ref: 92059C
TUBE,6.5X11.5X170
920591837
€ 18.00
92059D
920591838
ref: 92059D
CN
TUBE,3.5X6.5X390
920591838
€ 14.50
92059E
920591839
ref: 92059E
CA
TUBE,5X9X100
€ 4.50
92063
920631013
ref: 92063
CN
MAIN JET,#140
920631013
€ 9.00
92063A
920631016
ref: 92063A
MAIN JET,#142
920631016
€ 9.00
92063B
920631017
ref: 92063B
CN
MAIN JET,#145
920631017
€ 9.00
92063C
920631017
ref: 92063C
CAUS
MAIN JET,#145
920631017
€ 9.00
92063D
920631324
ref: 92063D
CAUS
JET-MAIN,#148
920631324
€ 9.00
92063E
920631324
ref: 92063E
CN
JET-MAIN,#148
920631324
€ 9.00
92063F
920631330
ref: 92063F
JET-MAIN,#150
920631330
€ 9.00
92063G
920631331
ref: 92063G
CAUS
JET-MAIN,#152
920631331
€ 9.50
92064
920641050
ref: 92064
CAUS
JET-PILOT,#38
920641050
€ 12.50
223
223C0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223C0416
ref: 223A
SCREW-PAN-WS-CROS
223C0416
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92064A
920641108
ref: 92064A
JET-PILOT,#40
920641108
€ 11.00
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811718
ref: 92081A
SPRING,DIAPHRAGM VALV
920811718
€ 18.50
92081B
920811719
ref: 92081B
SPRING,AIR CUT VALVE
920811719
€ 8.50
92081C
920811720
ref: 92081C
SPRING,PLUNGER
920811720
€ 7.00
92081D
920811721
ref: 92081D
SPRING,THROTTLE STOP
920811721
€ 9.00
