Genuine KL Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

KL650A7 KLR650 1993 USA CALIFORNIA CANADA

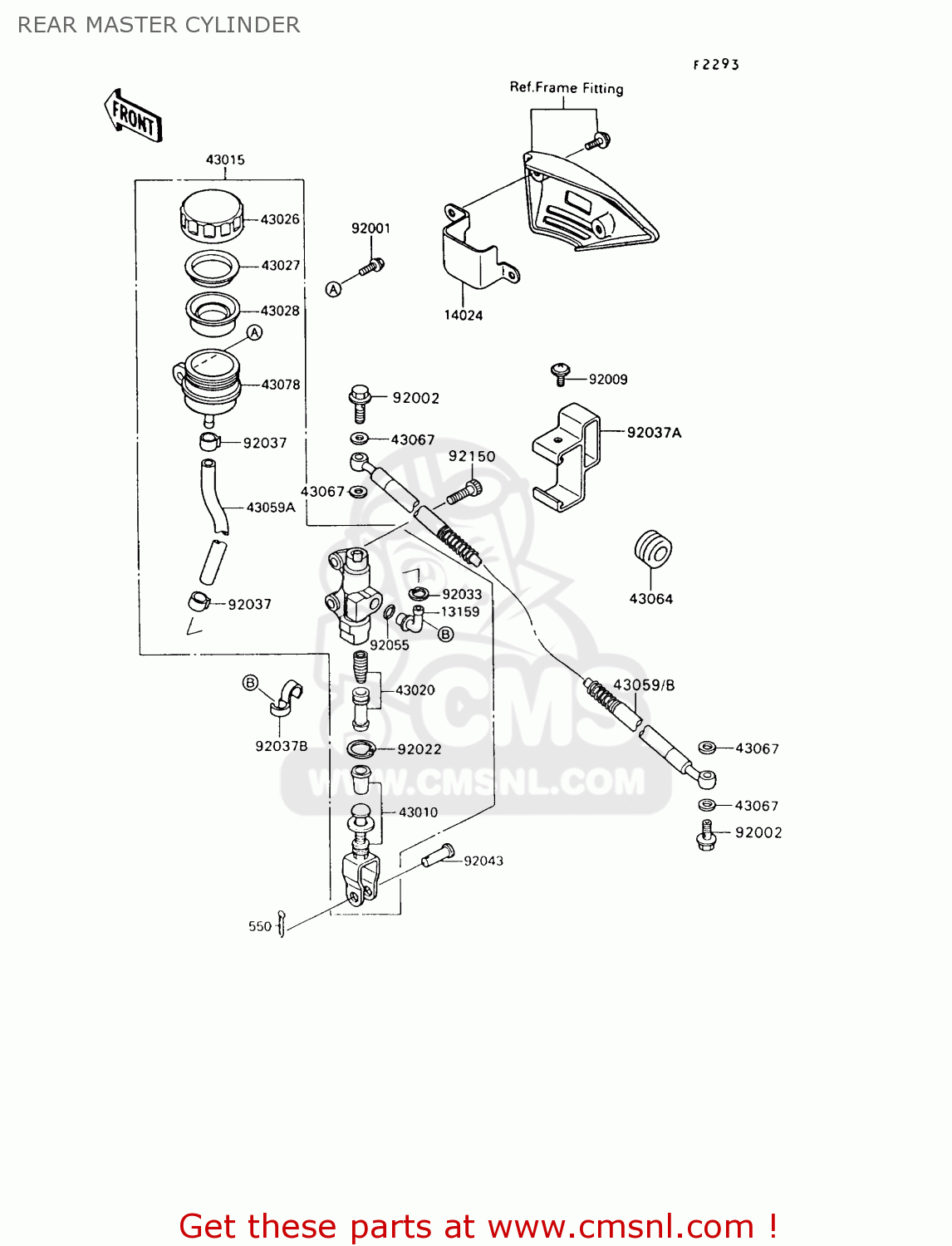

Rear master cylinder diagram KL650A7 KLR650 1993 USA CALIFORNIA CANADA

REAR MASTER CYLINDER KL650A7 KLR650 1993 USA CALIFORNIA CANADA
REAR MASTER CYLINDER KL650A7 KLR650 1993 USA CALIFORNIA CANADA
REAR MASTER CYLINDER KL650A7 KLR650 1993 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
14024
140241531
ref: 14024
COVER,RESERVOIR TANK
140241531
€ 7.00
43010
430101062
ref: 43010
ROD-ASSY-BRAKE
430101062
€ 38.50
43015
430151365
ref: 43015
MASTER CYLINDER ASSEMBLY
430151365
€ 215.50
43020
430201063
ref: 43020
PISTON-COMP-BRAKE
€ 47.50
43026
430261064
ref: 43026
CAP-BRAKE
430261064
€ 21.00
43027
430271053
ref: 43027
PLATE-DIAPHRAGM
430271053
€ 4.00
43028
430281065
ref: 43028
DIAPHRAGM
430281065
€ 13.00
43059
430591376
ref: 43059
HOSE-BRAKE,RR
430591376
€ 74.00
43059A
430591408
ref: 43059A
HOSE-BRAKE
€ 15.50
43064
43064007
ref: 43064
43064007
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781080
ref: 43078
RESERVOIR
430781080
€ 19.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371710
ref: 92037
CLAMP
920371710
€ 6.50
92037A
920371895
ref: 92037A
CLAMP,HOSE
920371895
€ 6.50
92037B
920371914
ref: 92037B
CLAMP,HOSE
920371914
€ 3.50
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92150
921501843
ref: 92150
BOLT
921501843
€ 2.50
