GENERATOR

KL650A7 KLR650 1993 USA CALIFORNIA CANADA

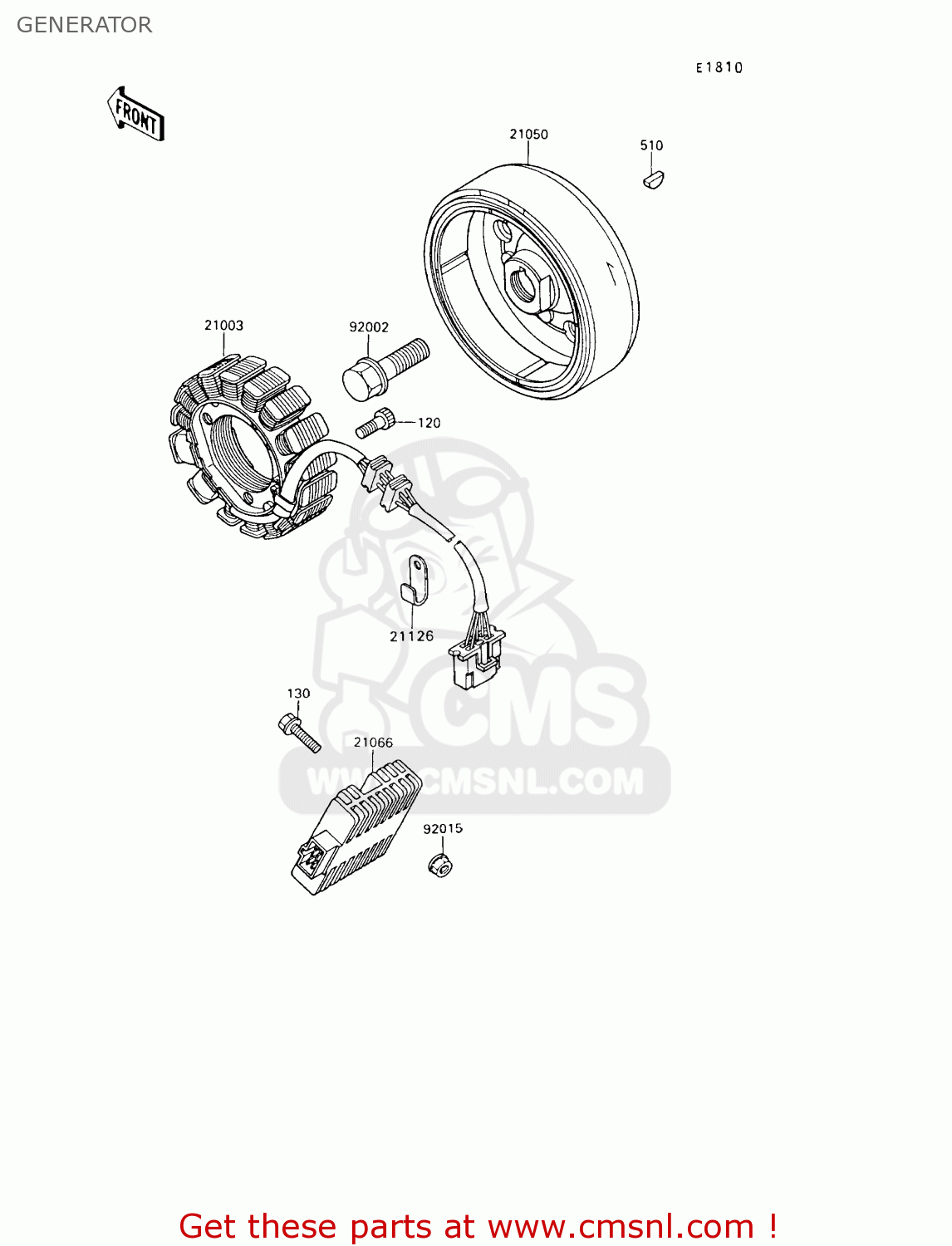

Generator diagram KL650A7 KLR650 1993 USA CALIFORNIA CANADA

GENERATOR KL650A7 KLR650 1993 USA CALIFORNIA CANADA

GENERATOR KL650A7 KLR650 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0628
ref: 120

BOLT,ALLEN,6X28

€ 3.00

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

510

510A4200
ref: 510

KEY-WOODRUFF

€ 1.50

21003

210031170
ref: 21003

STATOR

€ 498.50

21050

210501139
ref: 21050

FLYWHEEL

€ 602.00

21066

210661038
ref: 21066

REGULATOR-VOLTAGE

€ 176.50

21126

21126008
ref: 21126

CLAMP,WIRING HARNESS

€ 3.00

92002

920021693
ref: 92002

BOLT

€ 14.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50
