FRONT FORK
KL650A3 KLR650 1989 EUROPE UK GR NR SD

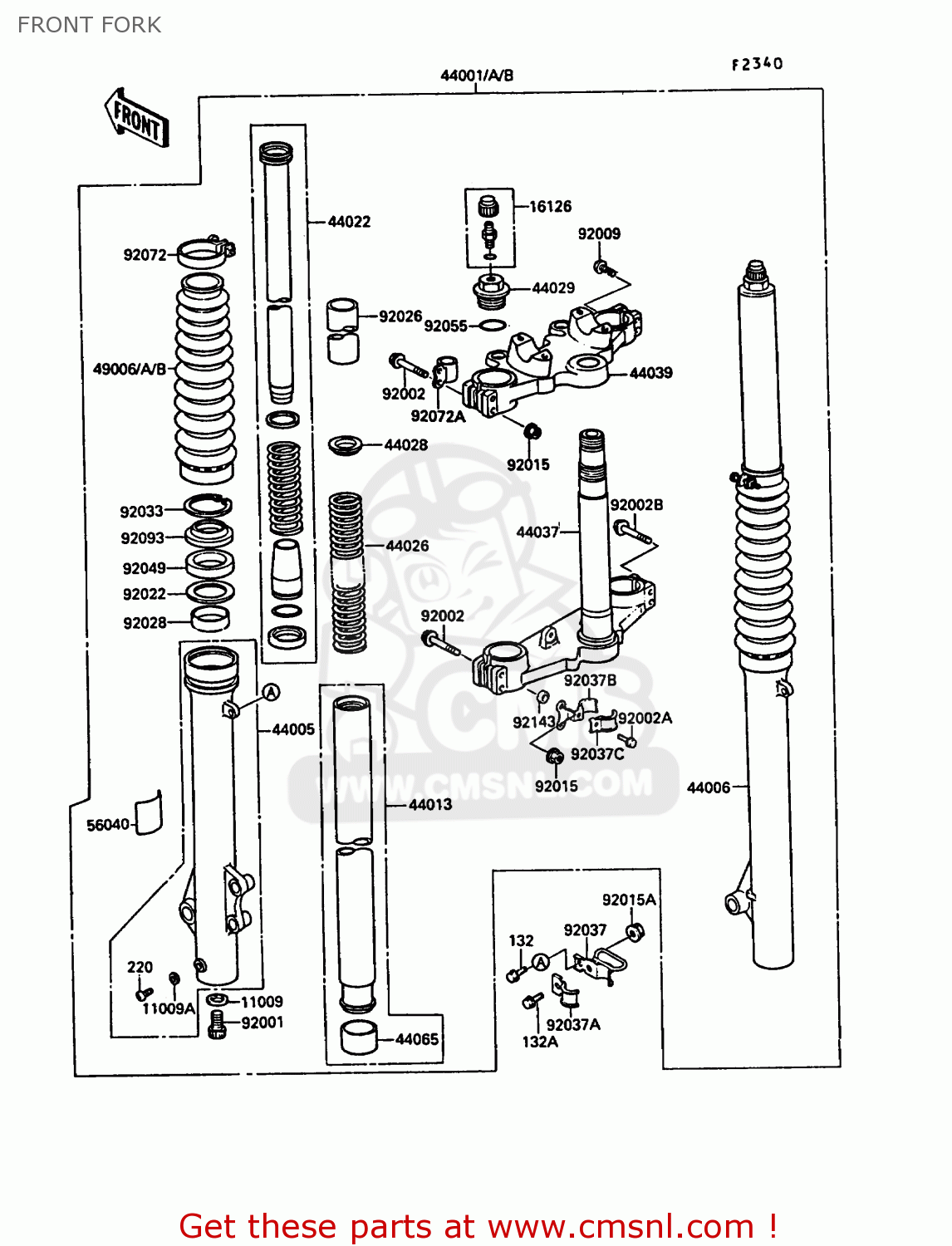

Front fork diagram KL650A3 KLR650 1989 EUROPE UK GR NR SD
FRONT FORK KL650A3 KLR650 1989 EUROPE UK GR NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001A
440011648BC
ref: 44001A
EUGRNRUK
FORK-FRONT,BLUE
€ 1,709.50
44001B
440011648BL
ref: 44001B
EUGRNRSD
FORK-FRONT,RED
€ 1,945.50
44005
440051262
ref: 44005
PIPE-LEFT FORK OUTER
€ 171.50
44006
440061259
ref: 44006
PIPE-RIGHT FORK OUTER
€ 304.50
44013
440131264
ref: 44013
PIPE-FORK INNER
€ 208.50
44022
440221211
ref: 44022
CYLINDER-FORK
€ 149.00
44026
440261369
ref: 44026
SPRING-FRONT FORK
€ 52.50
44028
440281003
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291042
ref: 44029
SEAT-FORK SPRING
€ 51.50
44037
440371207
ref: 44037
HOLDER-FORK UNDER
€ 449.00
44039
440391160
ref: 44039
HOLDER-FORK UPPER
€ 248.00
44065
440651057
ref: 44065
BUSHING,FRON.PIPE
€ 31.50
49006A
490061222BC
ref: 49006A
EUGRNRUK
BOOT,FORK,BLUE
€ 56.50
49006B
490061222BL
ref: 49006B
EUGRNRSD
BOOT,FORK,RED
€ 45.00
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
920011309
ref: 92001
BOLT,FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021982
ref: 92002A
BOLT
€ 3.00
92002B
920021983
ref: 92002B
BOLT
€ 10.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92022
920221242
ref: 92022
WASHER
€ 5.50
92026
920261294
ref: 92026
SPACER
€ 30.00
92028
920281125
ref: 92028
BUSHING
€ 17.00
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371897
ref: 92037
CLAMP,HOSE
€ 8.50
92037A
920371898
ref: 92037A
CLAMP,HOSE
€ 5.50
92037B
920371913
ref: 92037B
CLAMP
€ 14.00
92037C
920371931
ref: 92037C
CLAMP
€ 7.00
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
€ 4.00
92072
920721171
ref: 92072
BAND,BOOT
€ 6.50
92072A
920721225
ref: 92072A
BAND,CABLE
€ 13.00
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
92143
921431134
ref: 92143
COLLAR
€ 8.00
