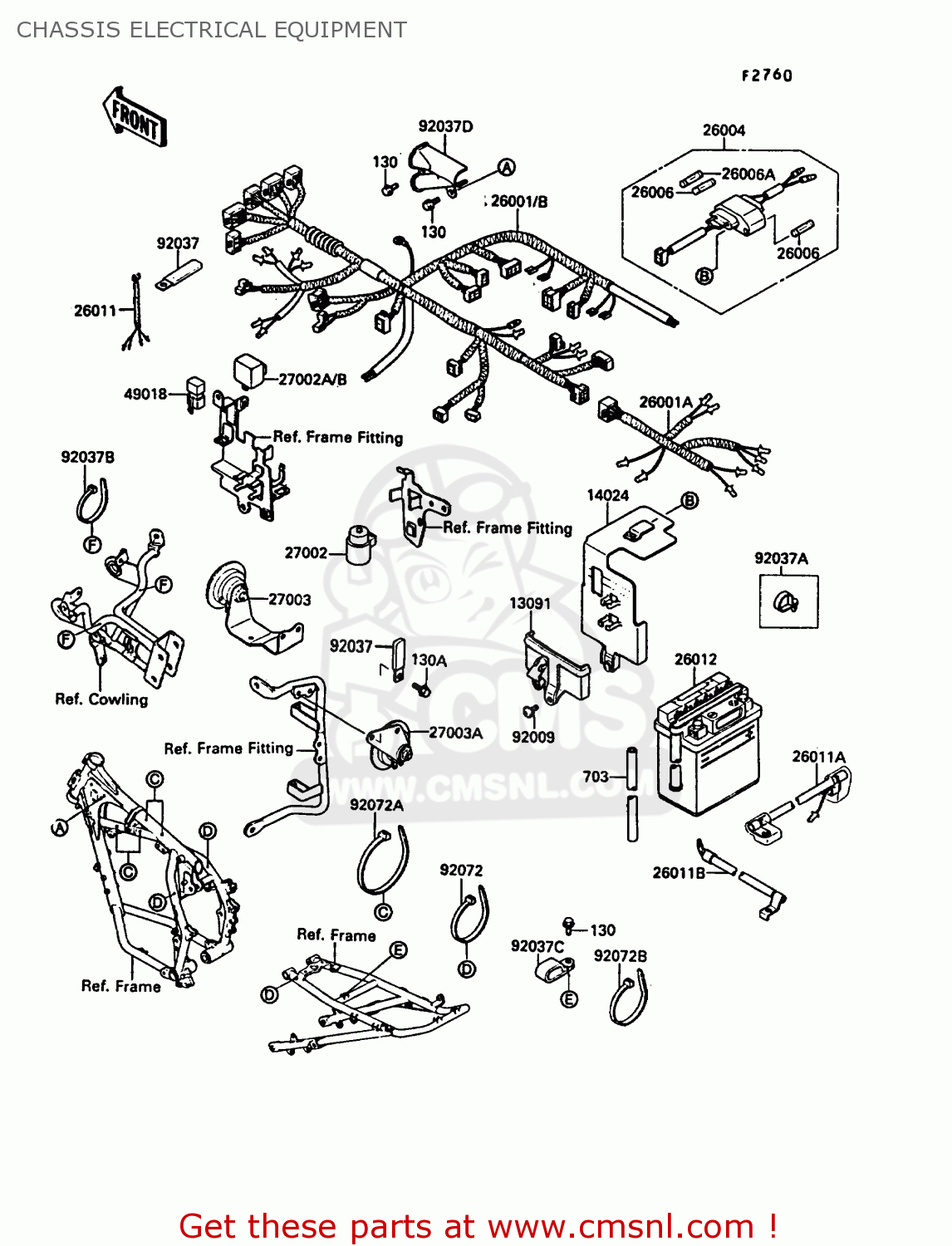

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130D0614
ref: 130A

BOLT-FLANGED,6X14

€ 0.50

703

703A08580
ref: 703

TUBE-RUBBER,8X12X580

€ 13.50

13091

130911484
ref: 13091

HOLDER,BATTERY COVER

€ 13.00

14024

140241375
ref: 14024

COVER,BATTERY

€ 24.50

26001

260011821
ref: 26001

HARNESS,MAIN

€ 156.50

26001A

260011822
ref: 26001A

HARNESS,RR

€ 30.50

26004

260041076
ref: 26004

FUSE-ASSY

€ 30.50

26006

260061002
ref: 26006

FUSE,10A,L=30M/M

€ 3.00

26006A

260061056
ref: 26006A

FUSE,20A,L=30

€ 3.00

26011A

260111386
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 19.00

26011B

260111387
ref: 26011B

WIRE-LEAD,BATTERY(-)

€ 26.00

26012

260121219
ref: 26012

BATTERY,12V 14AH,FB14

€ 61.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021053
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 33.50

27003A

270031273
ref: 27003A

HORN

€ 64.00

49018

490181052
ref: 49018

DIODE

€ 35.50

92009

920091402
ref: 92009

SCREW,6X10

€ 1.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371173
ref: 92037B

CLAMP,SPARK PLUG CAP

€ 1.00

92037C

920371608
ref: 92037C

CLAMP

€ 5.50

92037D

920371906
ref: 92037D

CLAMP,HARNESS

€ 10.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00

92072B

920721237
ref: 92072B

BAND,L=250

€ 2.00
